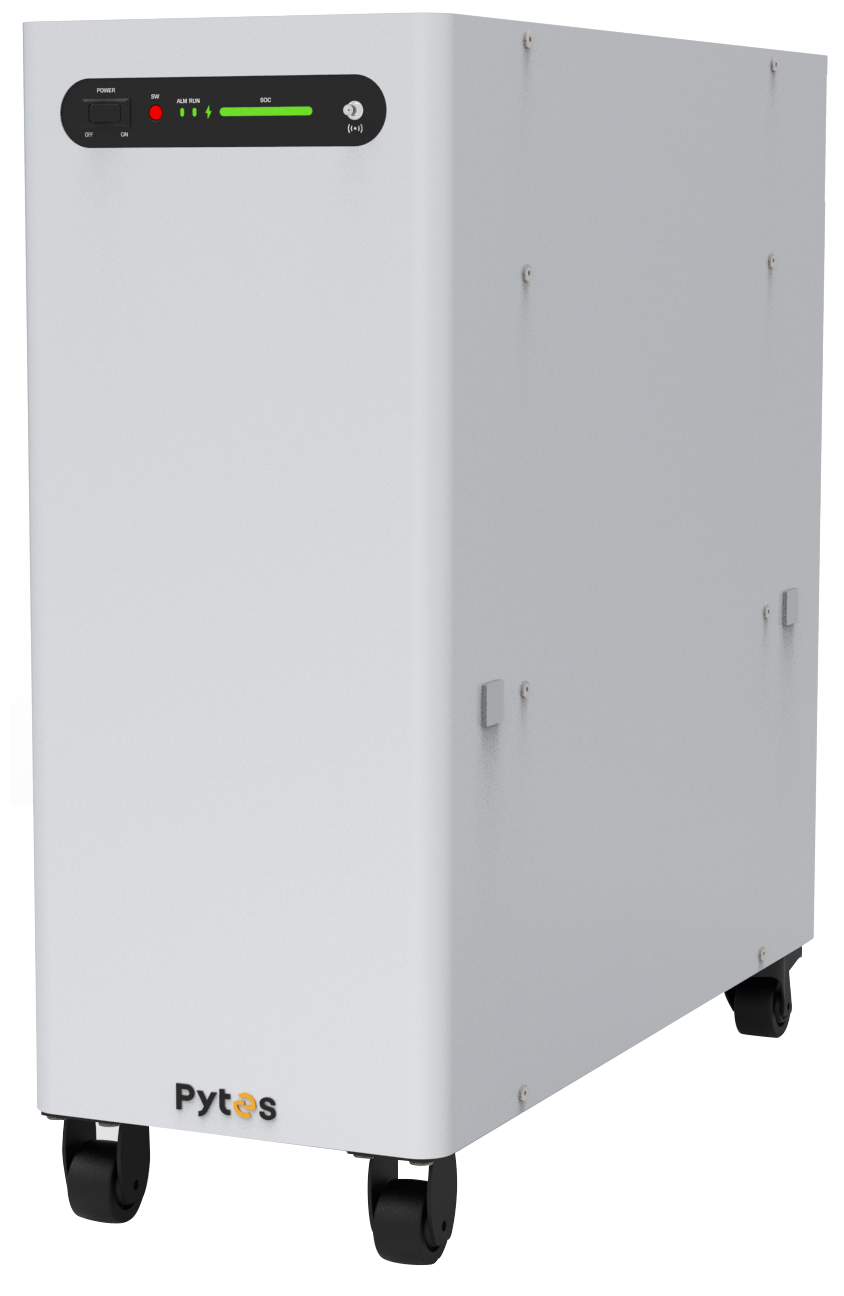

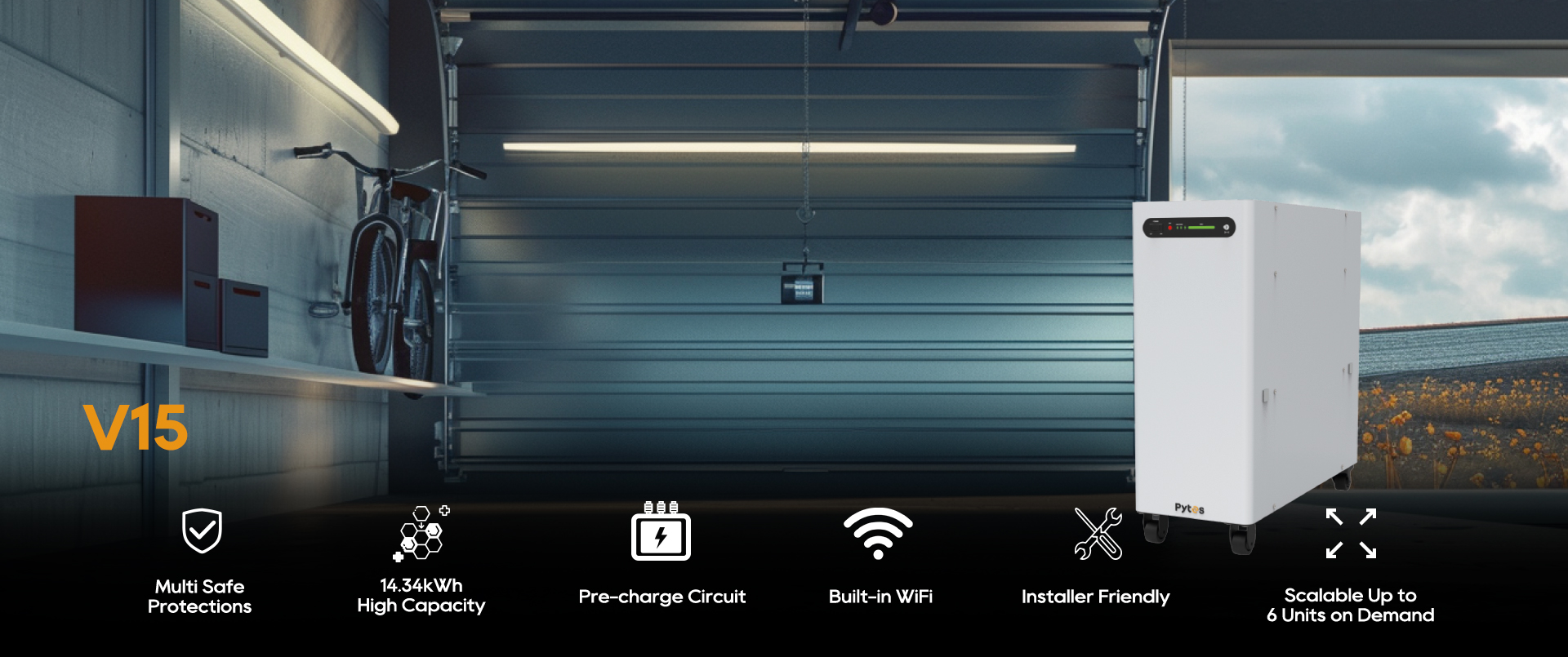

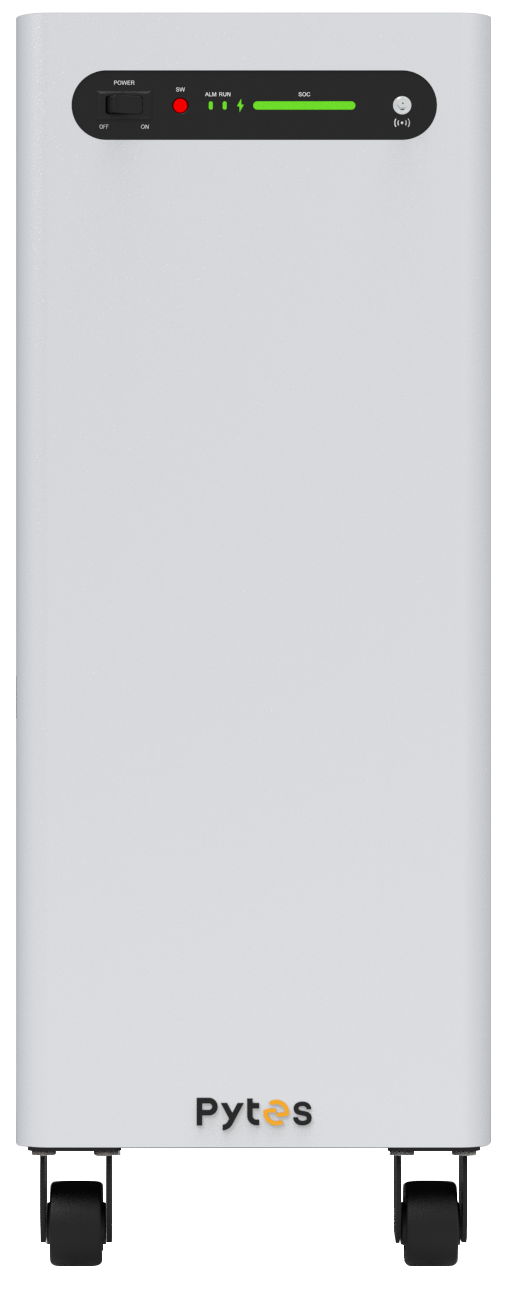

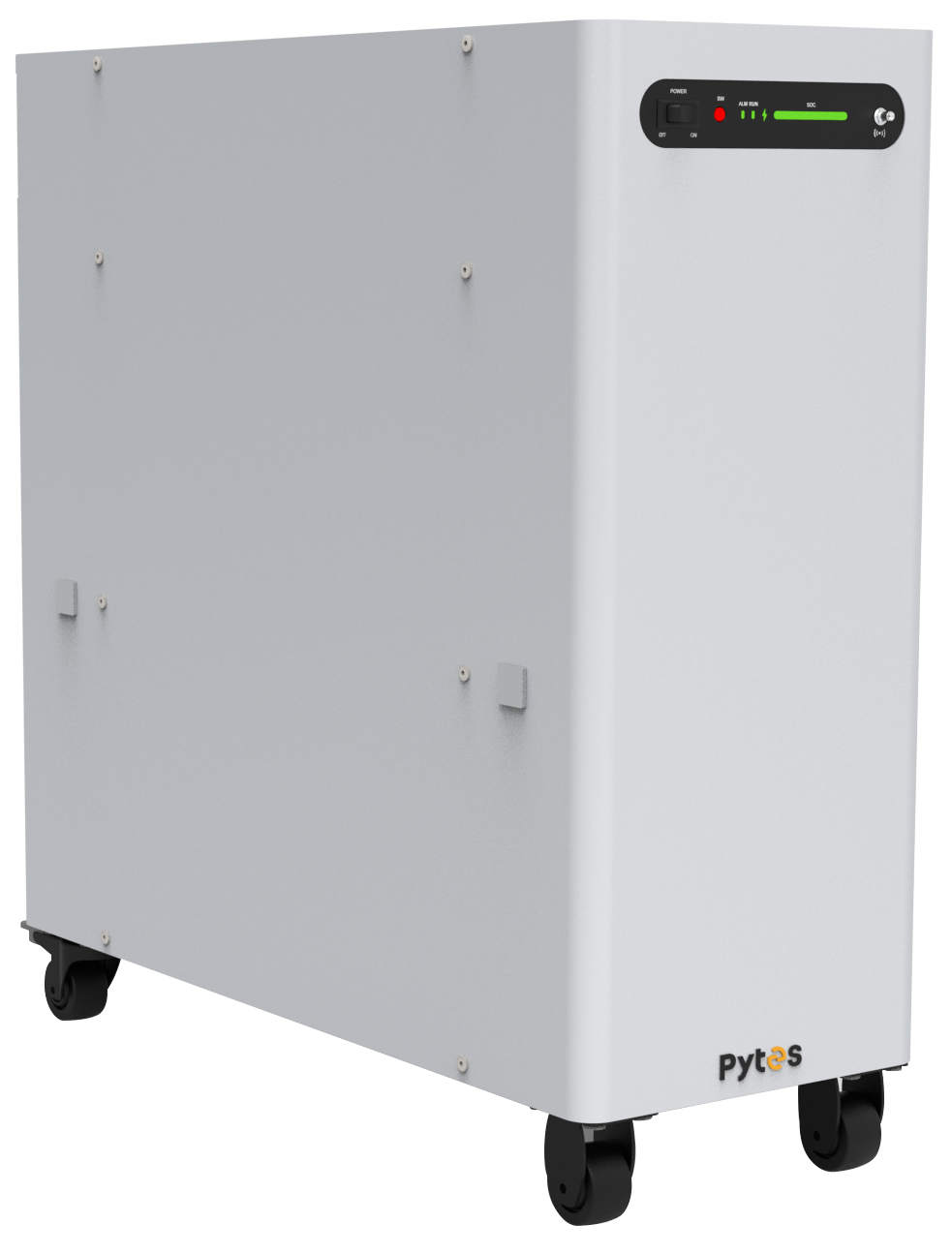

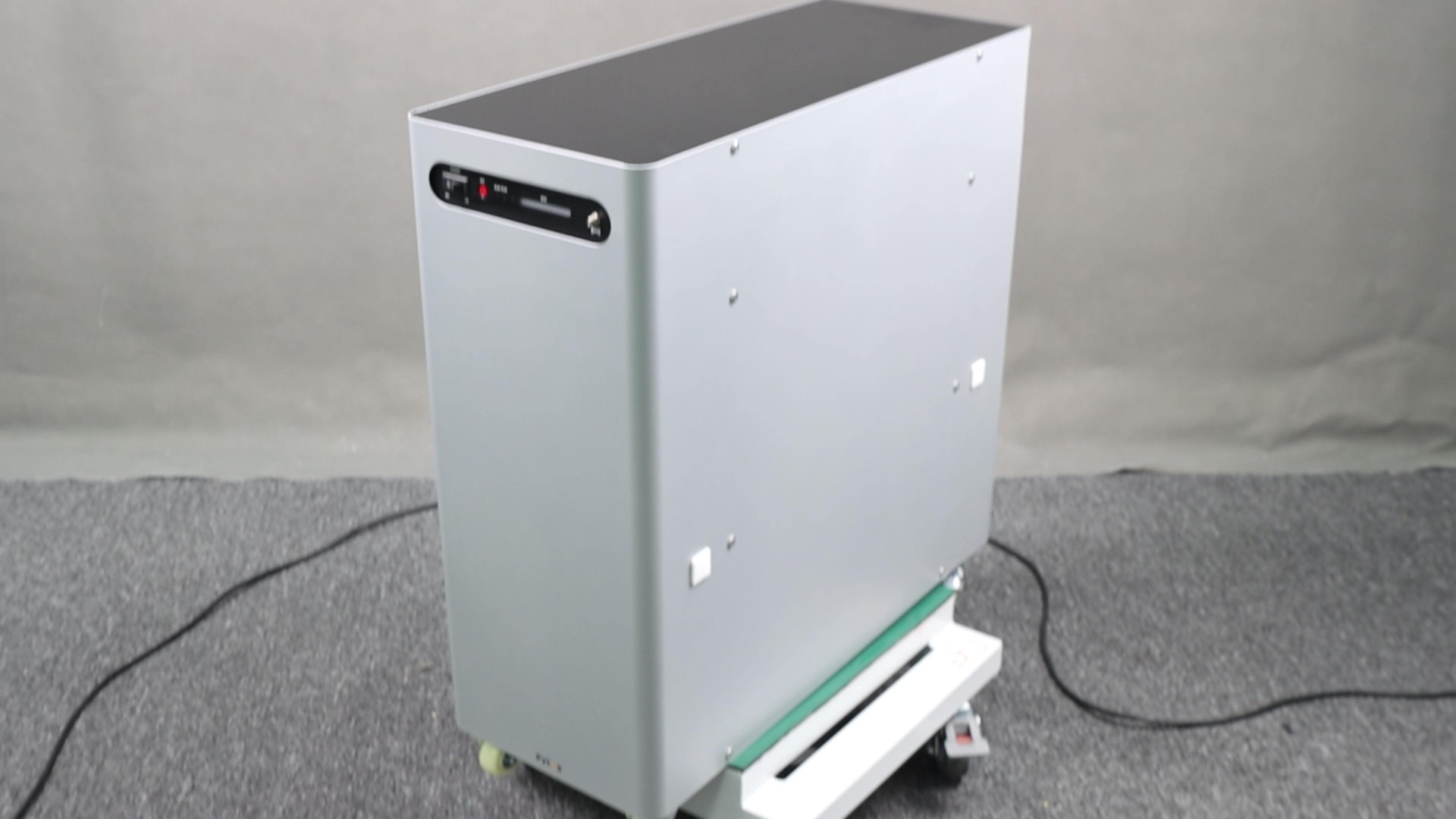

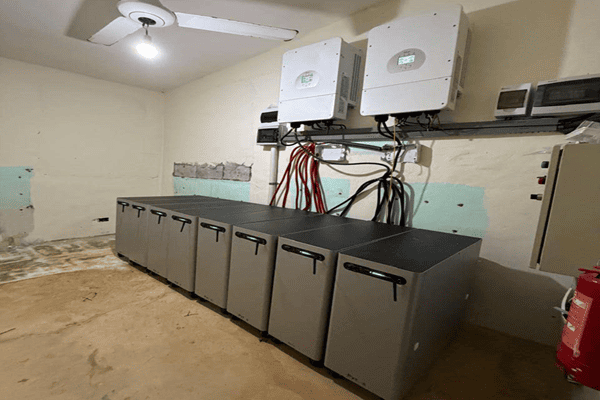

Pytes V15 is the latest innovation in home energy storage, offering a high-capacity 48V 300Ah lithium-ion battery with an impressive 14.34kWh storage capacity. Designed with multi-layered safety protections, including a built-in pre-charge circuit, V15 ensures reliable and secure performance. Its integrated WiFi allows for remote monitoring and firmware upgrades, keeping your system efficient and up to date. With an installer-friendly design, V15 is easy to set up and commission, saving time and effort. For expanding energy needs, the system is scalable up to 6 units, offering unparalleled flexibility to meet your household’s growing demands. Pytes V15 is your dependable partner for a smarter, safer, and more adaptable energy storage solution.

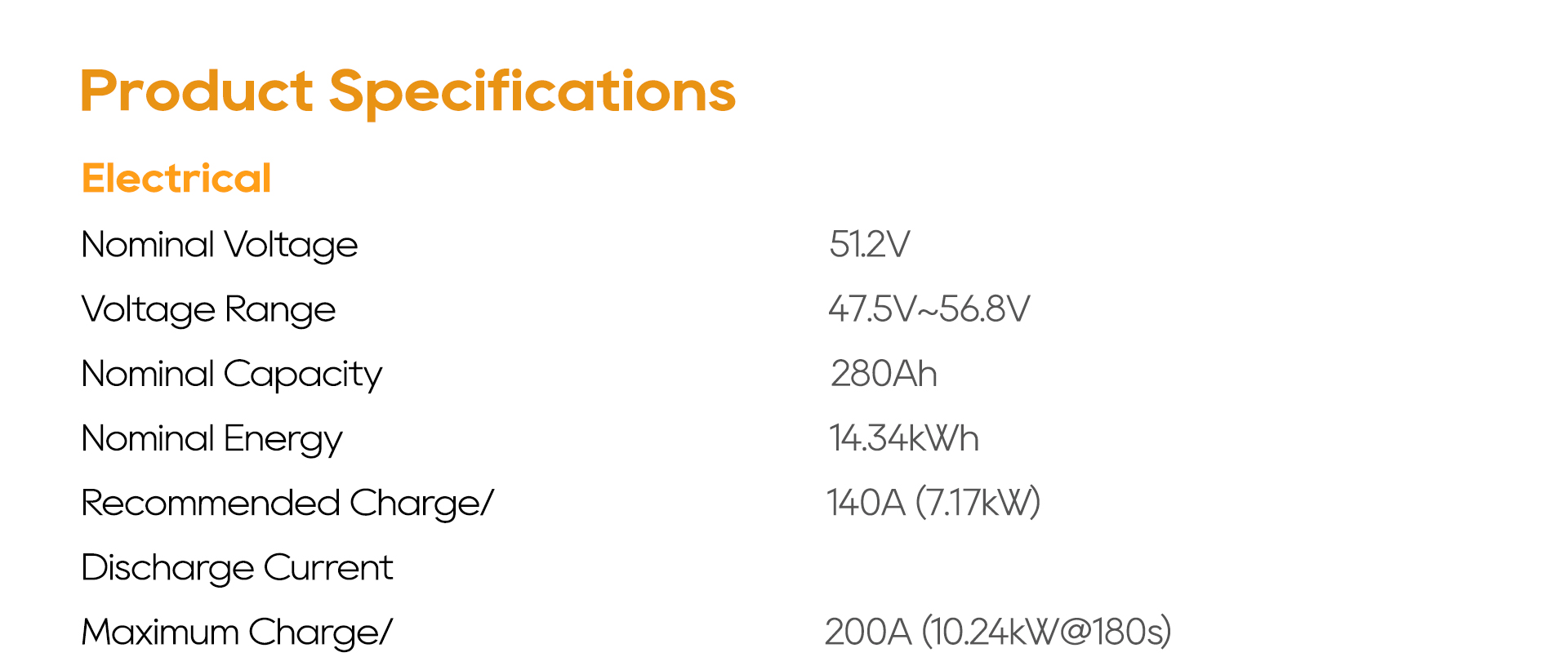

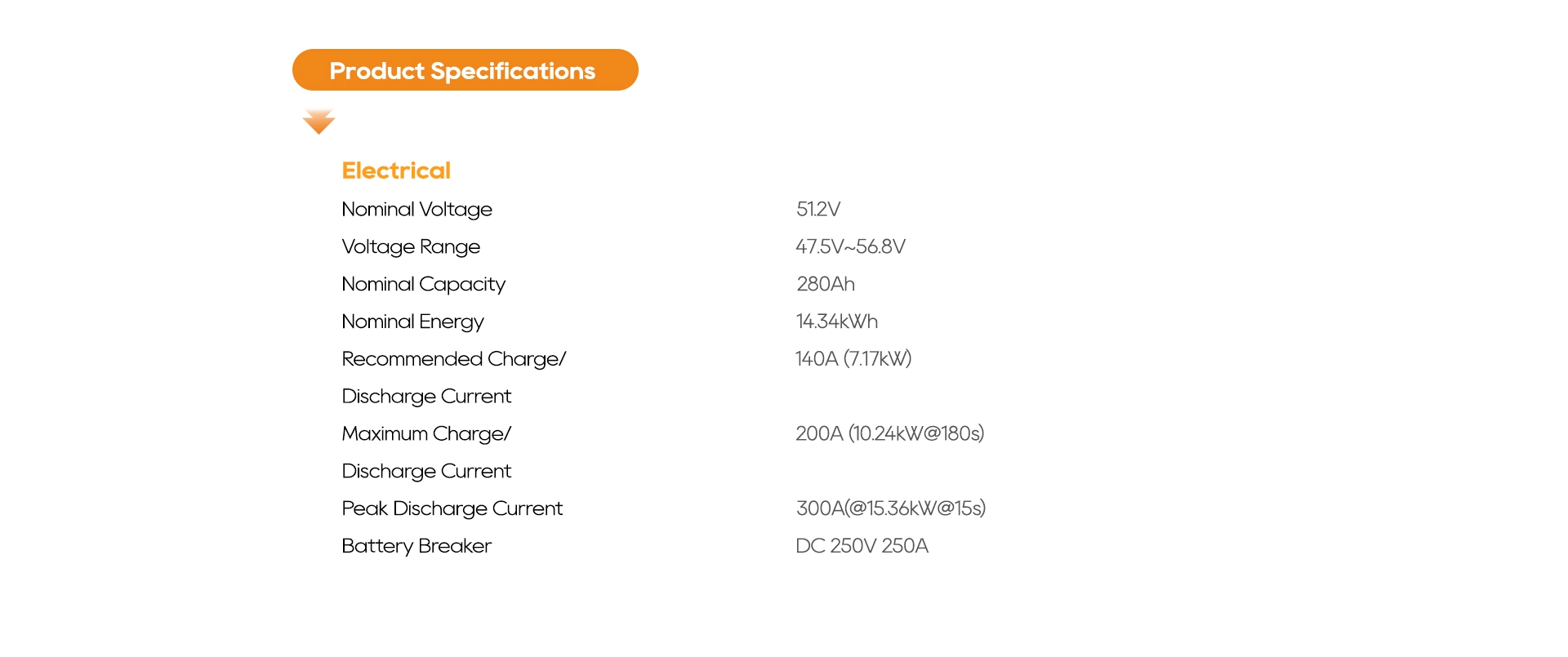

Battery Model | V15 |
---|---|
Electrical | |
Nominal Voltage | 51.2V |
Operating Voltage Range | 47.5~57.6V |
Nominal Capacity | 280Ah |
Nominal Energy | 14.34kW |
Usable Energy | 10.24kWh |
Recommended Charge/Discharge Current | 140A@25°C / 77°F |
Maximum Charge/Discharge Current | 200A@180S |
Peak Current | 300A@15S |

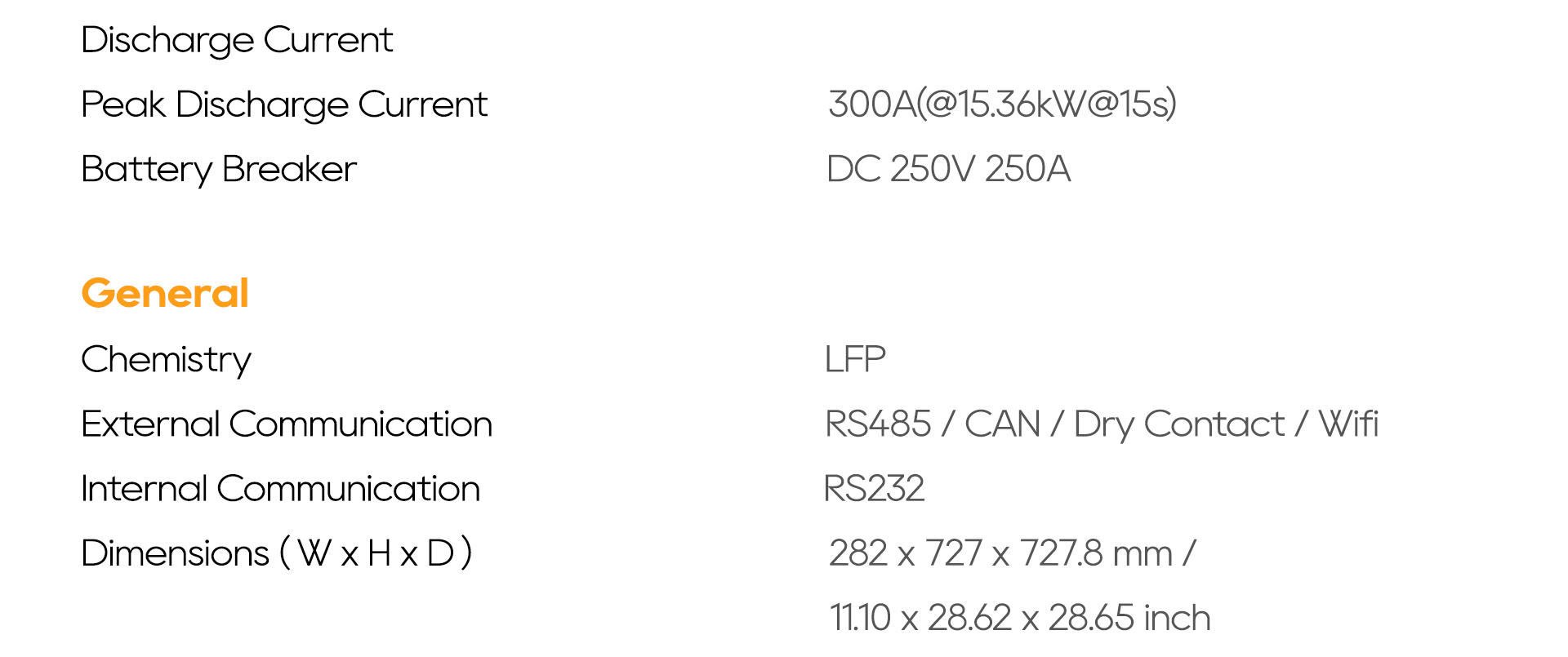

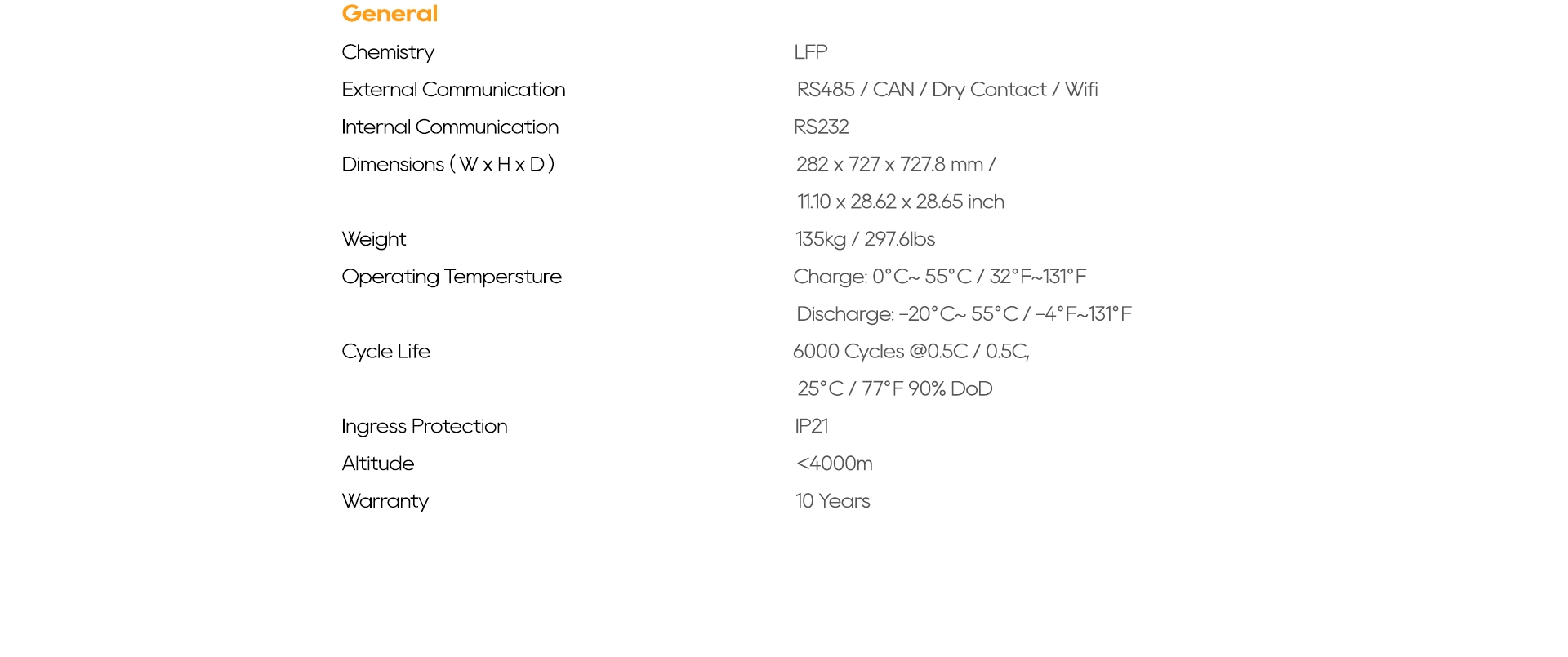

General | |
Chemistry | LFP |
Dimensions(L x W x D) | 700 x 282 x 730 mm / 27.56 x 11.1 x 28.74 inch |

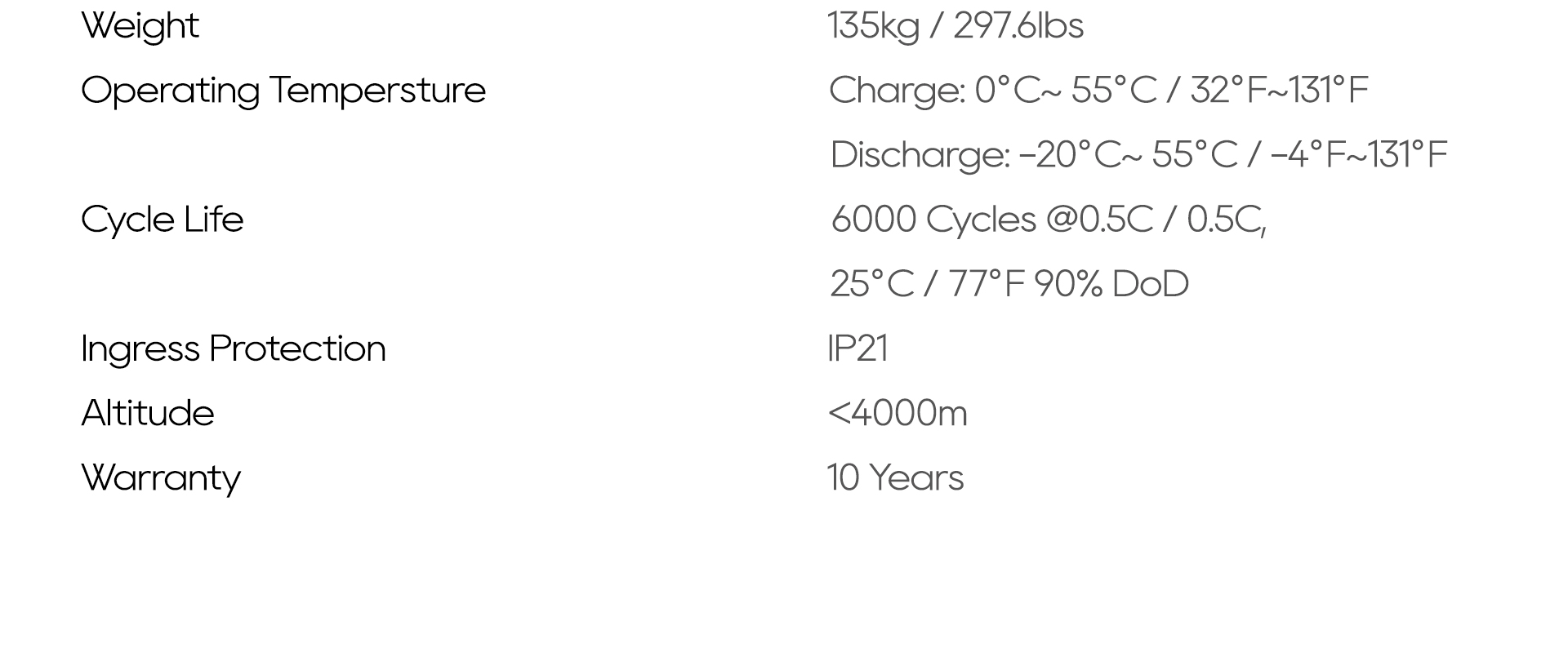

Unit Weight | 135kg / 297.6lbs |
Operating Temperature | Charge: 0°C~ 55°C / 32°F~131°F / Discharge: -20°C~ 55°C / -4°F~13°F |
Cycle Life | ≥6000 Cycles@0.5C / 0.5C,25°C / 77°F 90% DOD |

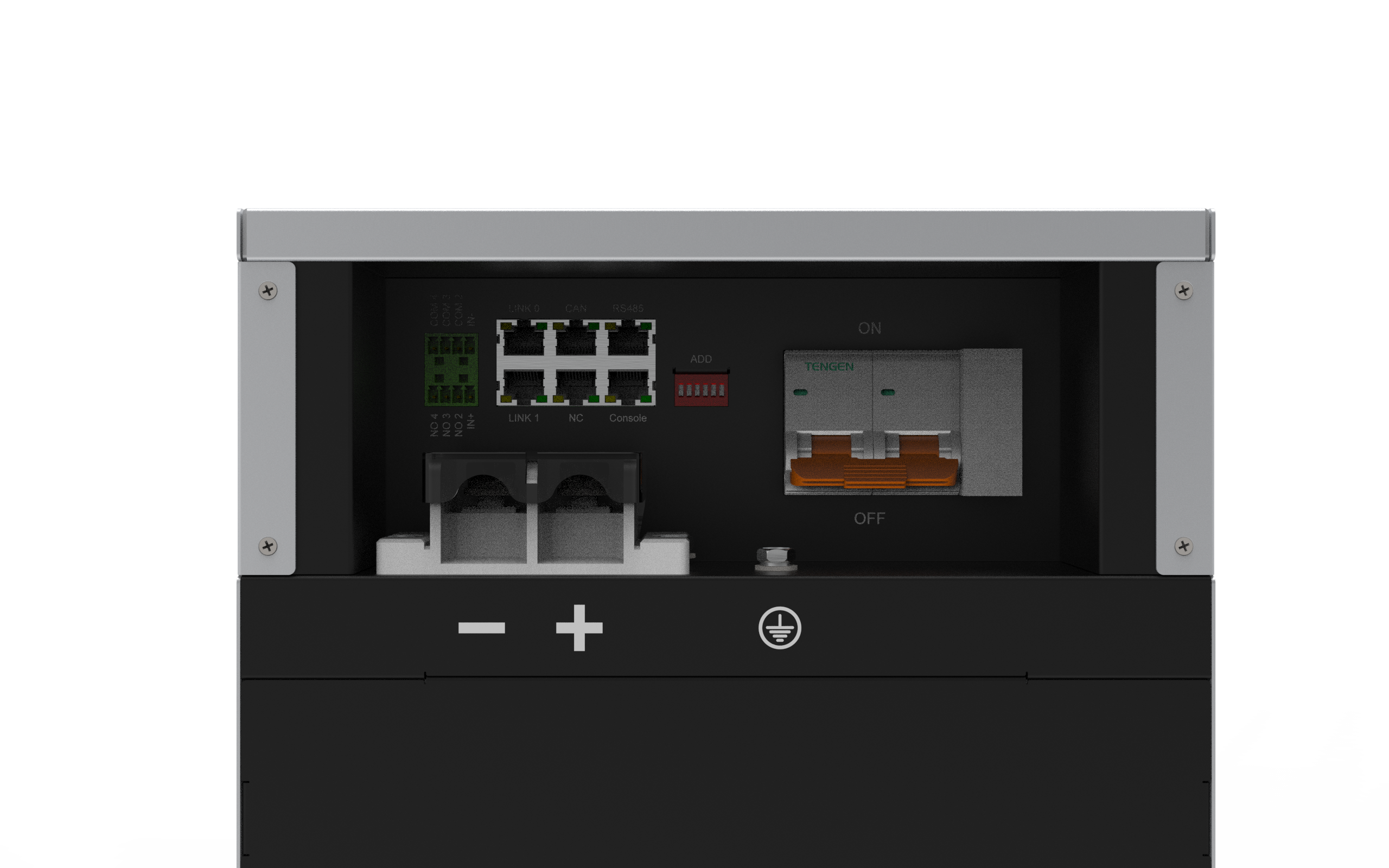

External Communication | RS485 / CAN / Dry Contact / WiFi |
Internal Communication | RS232 |
Calendar Life | ≥10 Years |
Ingress Protection | IP21 |
Round-Trip Efficiency | ≥95% |
Certifications | |
UN38.3 |
