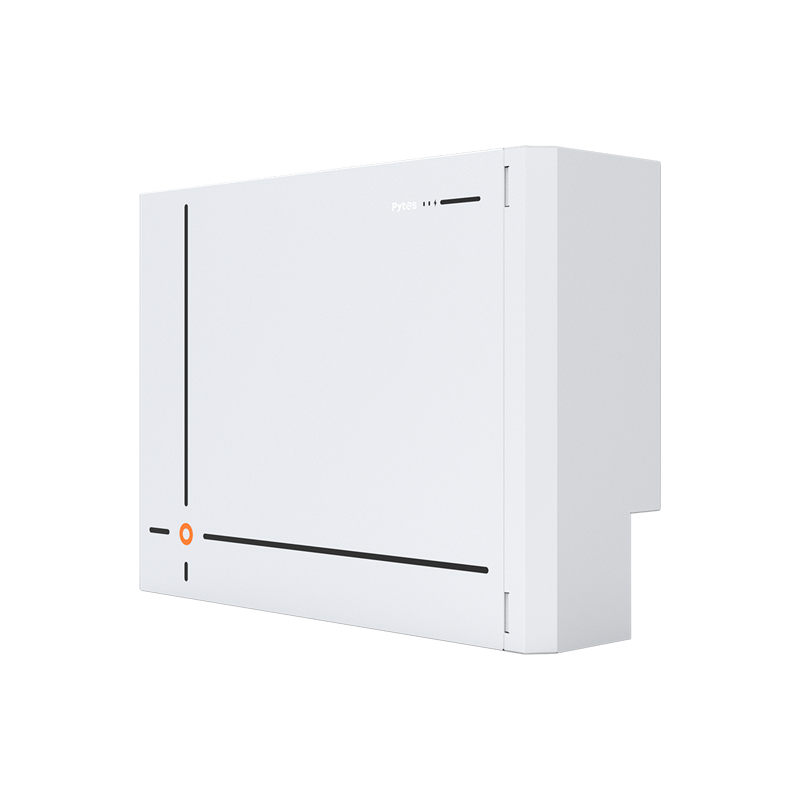

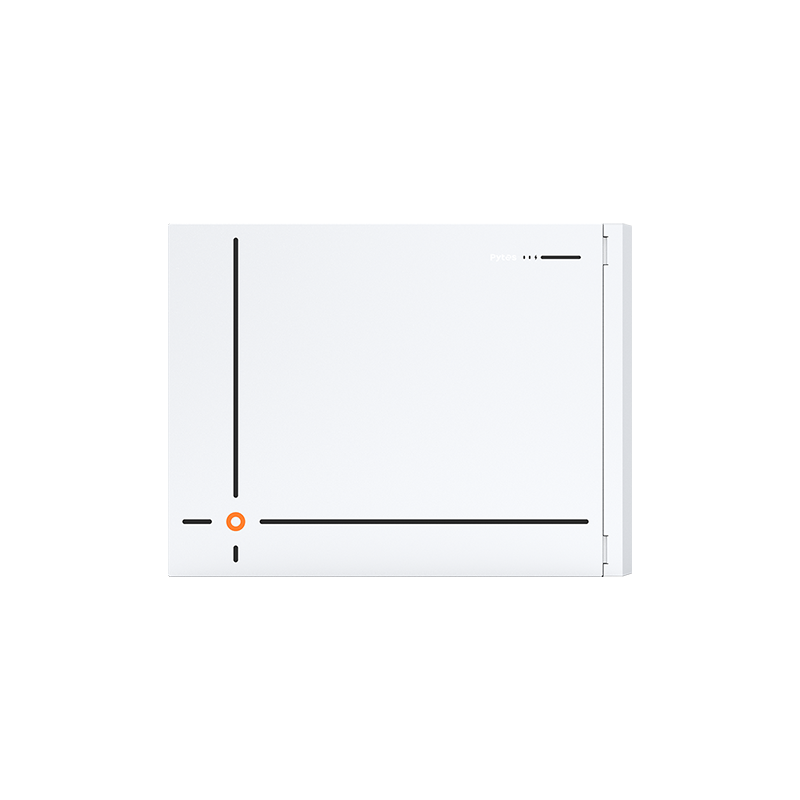

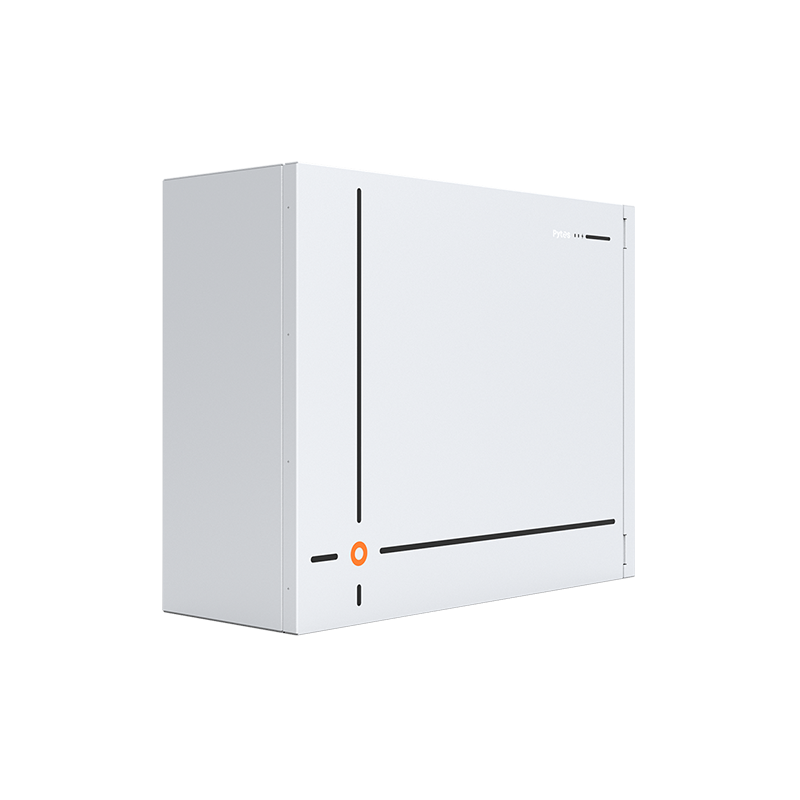

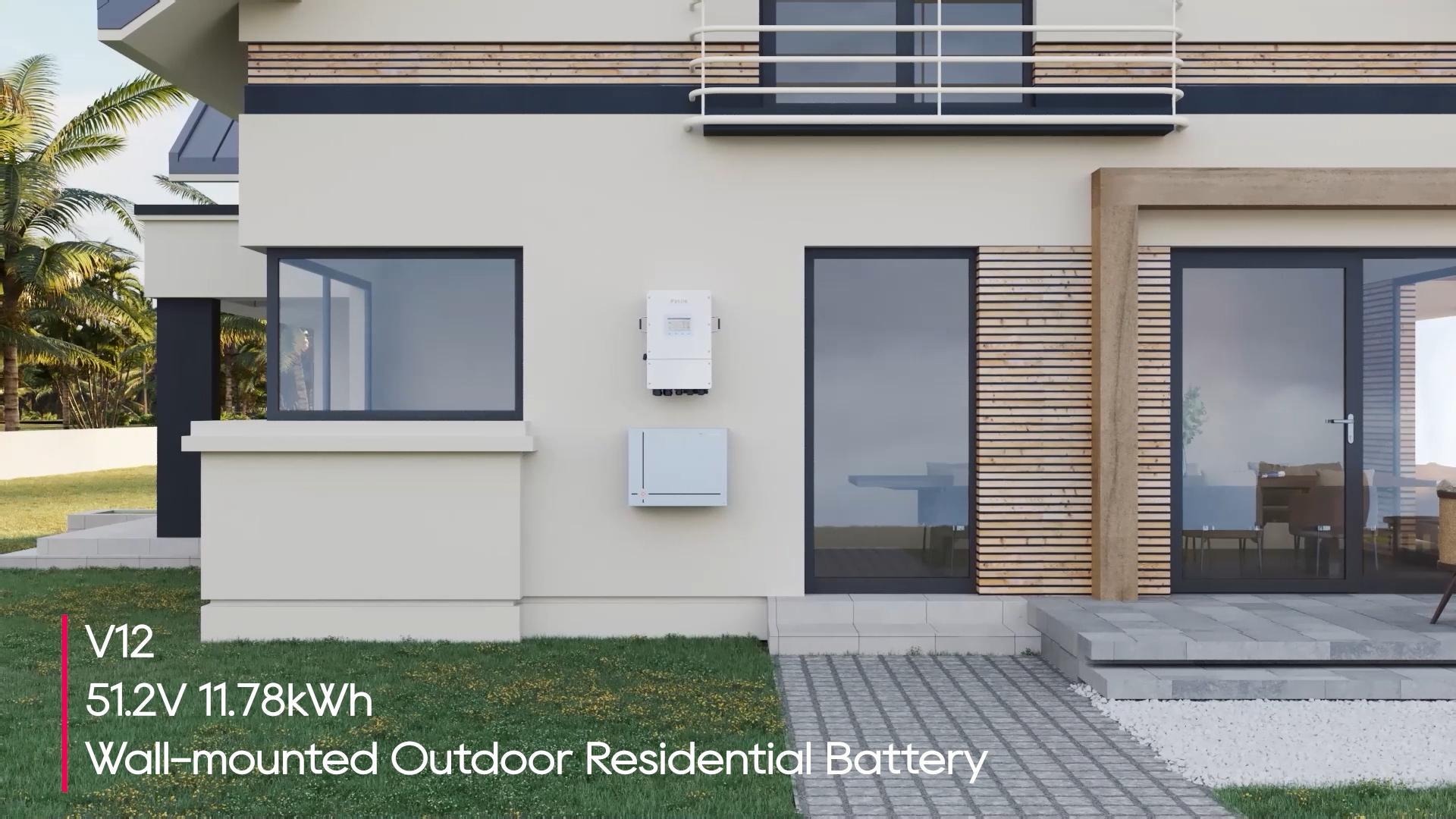

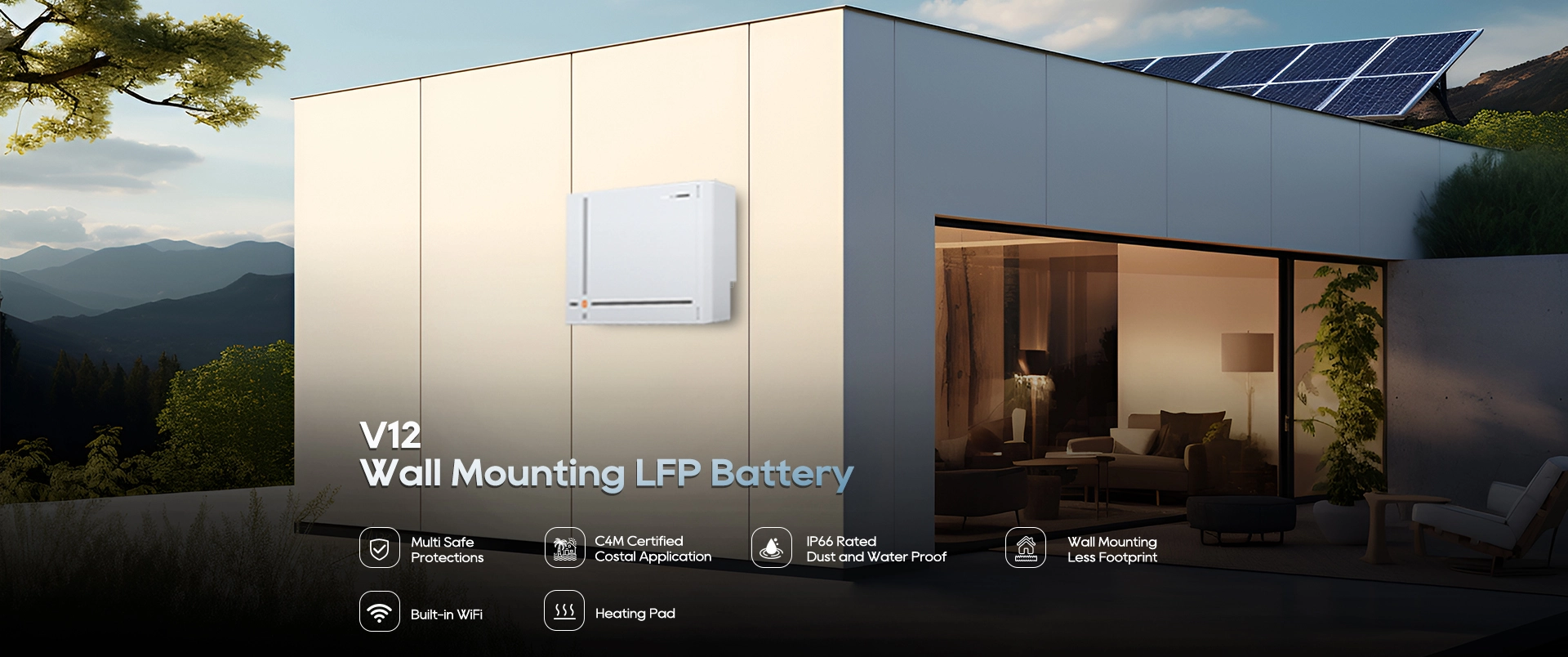

Pytes New Robust, Wall-Mounted Solar Battery Designed for the Outdoors.
The V12 is a 51.2V low voltage LFP battery with 11.78kWh capacity, designed for outdoor applications. Featuring IP66 protection and 6000 cycles, it delivers safe, reliable, and long-lasting energy storage for solar and backup systems.

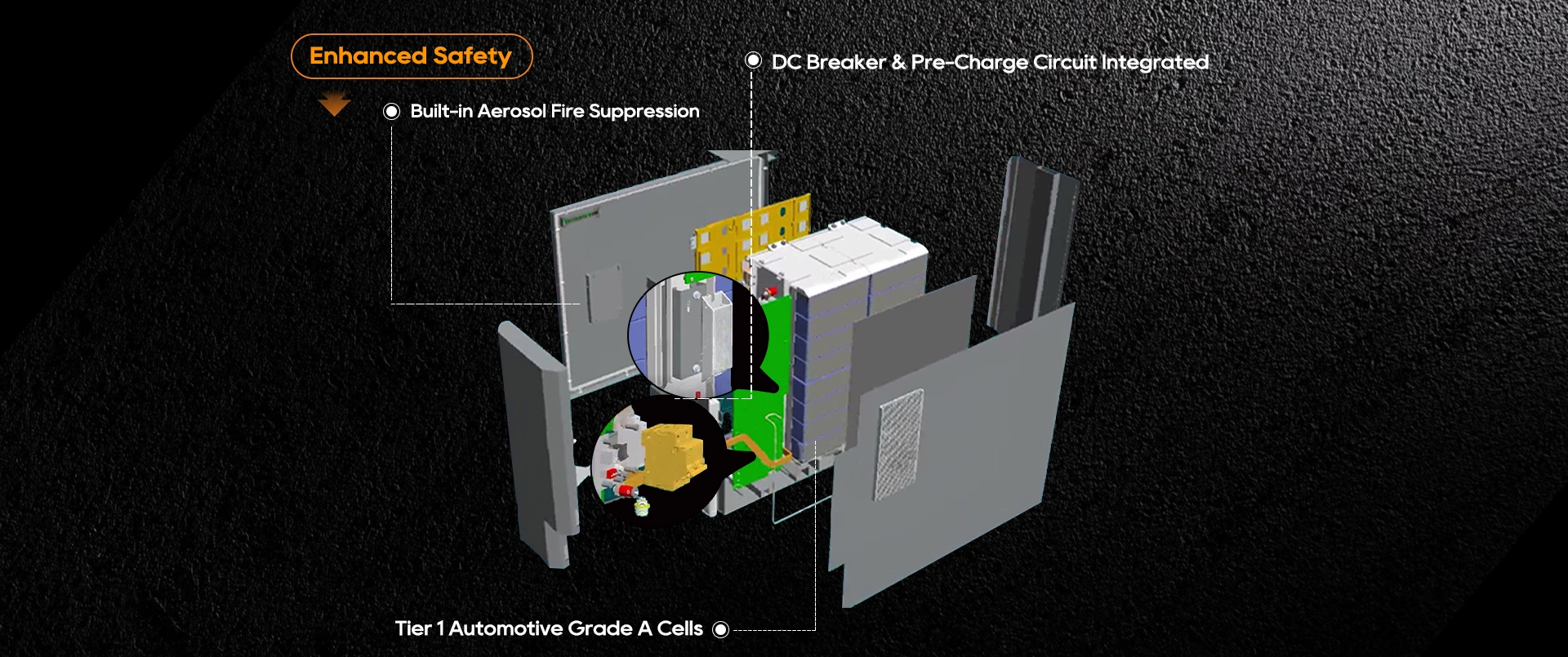

Pre-charge Circuit Integrated
Emergency Shutdown with Battery Breaker
Built-in Fire Fighting System (Optional)
Tier 1 Automotive Grade A 230Ah Cells
Lighter Weight with Smaller Footprint
5.12kW Nominated Output Power
C4-M Certified Anti-Corrosion
IP66 Rated Water & Dust Proof
Heating Pad Integrated

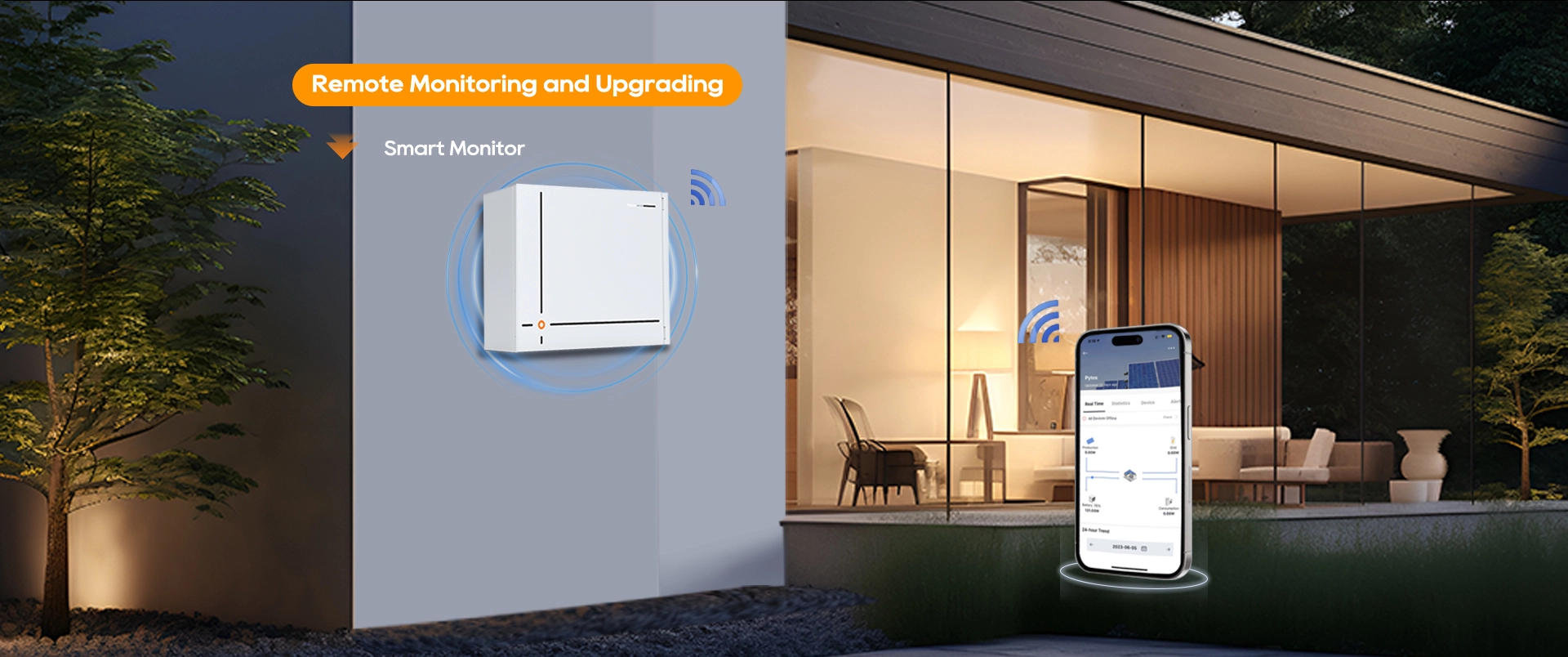

Remote Monitoring and Upgrading

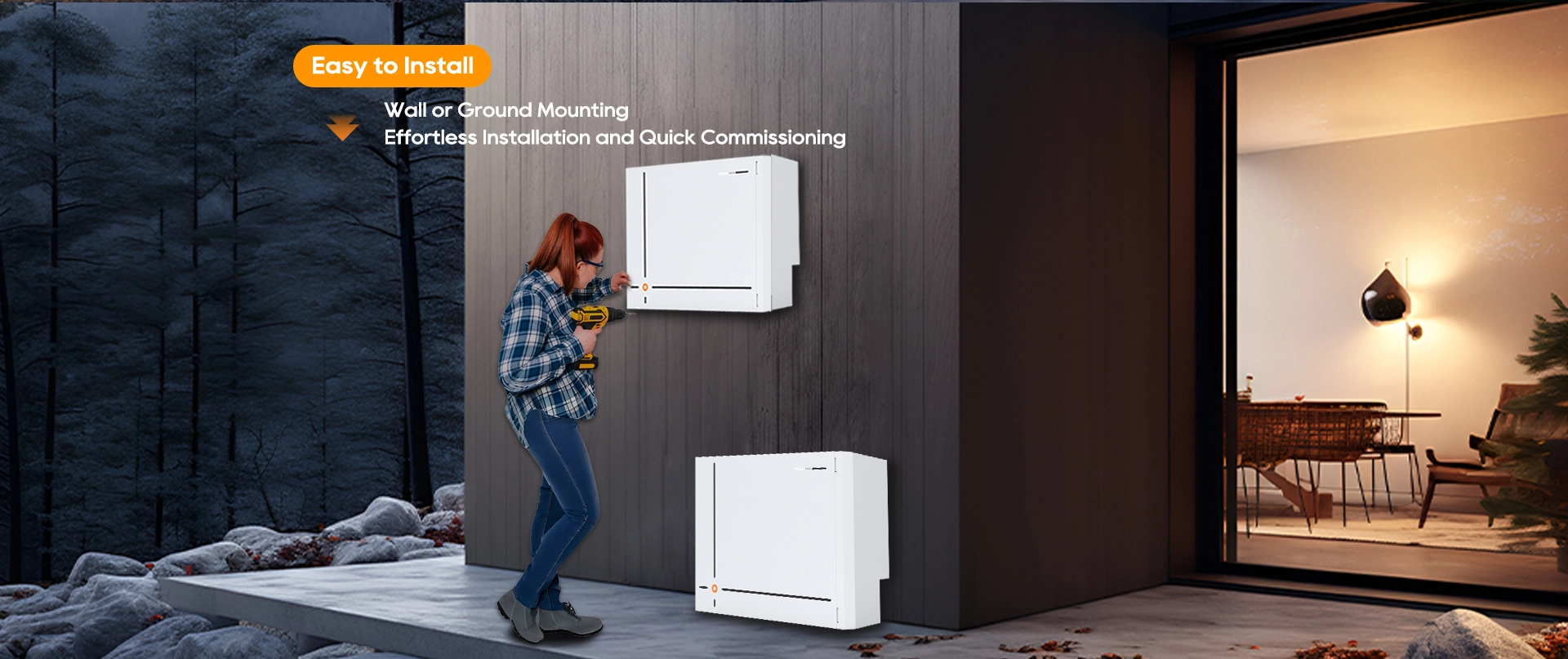

Wall or Ground Mounted
Effortless Installation and Quick Commissioning
Are you prepared to adopt the latest in-home energy management? Solar Battery Manufacturer offers cutting-edge home battery storage systems that are revolutionizing the way we store and use energy. These innovative solutions are designed to improve energy usage, sustainability, and efficiency. Let's explore home battery systems and see how Solar Battery Manufacturer is at the forefront of this transformative technology."
Efficient Energy Storage
Pytes Energy's home battery system V12 is at the forefront of efficient energy storage solutions. Designed to work seamlessly with solar panels and renewable energy sources, these batteries enable households to harness, store, and use excess energy for when it's needed most. With advanced storage capacities and intelligent management systems, homeowners can enjoy reliable backup power and reduce their dependence on the traditional grid.
Smart Energy Management
By integrating cutting-edge technology, Pytes Energy's home battery system V12 provides smart energy management features that allow you to monitor and optimize your energy usage with App. You can gain real-time insights into your energy consumption, enabling you to make informed decisions that maximize efficiency and savings.
Seamless Integration
One of the key advantages of Pytes Energy's home battery systems V12 is their seamless integration with most main inverters in the market. Also, we are strategy collaboration partner with Sol-Ark. This seamless compatibility ensures that homeowners can fully harness the potential of their solar panels, while the excess energy is efficiently stored and utilized, enhancing the overall sustainability of their energy usage.
Pytes Energy's latest home battery system V12 is a significant innovation in energy management. They are designed to prioritize sustainability, efficiency, and dependability, and are specifically created to transform the way energy is stored, managed, and used in households. By incorporating Pytes Energy's advanced home battery systems, you can manage your energy future, decrease your environmental impact, and experience significant long-term savings. Embrace the future and energize your home with Pytes Energy's home battery systems!

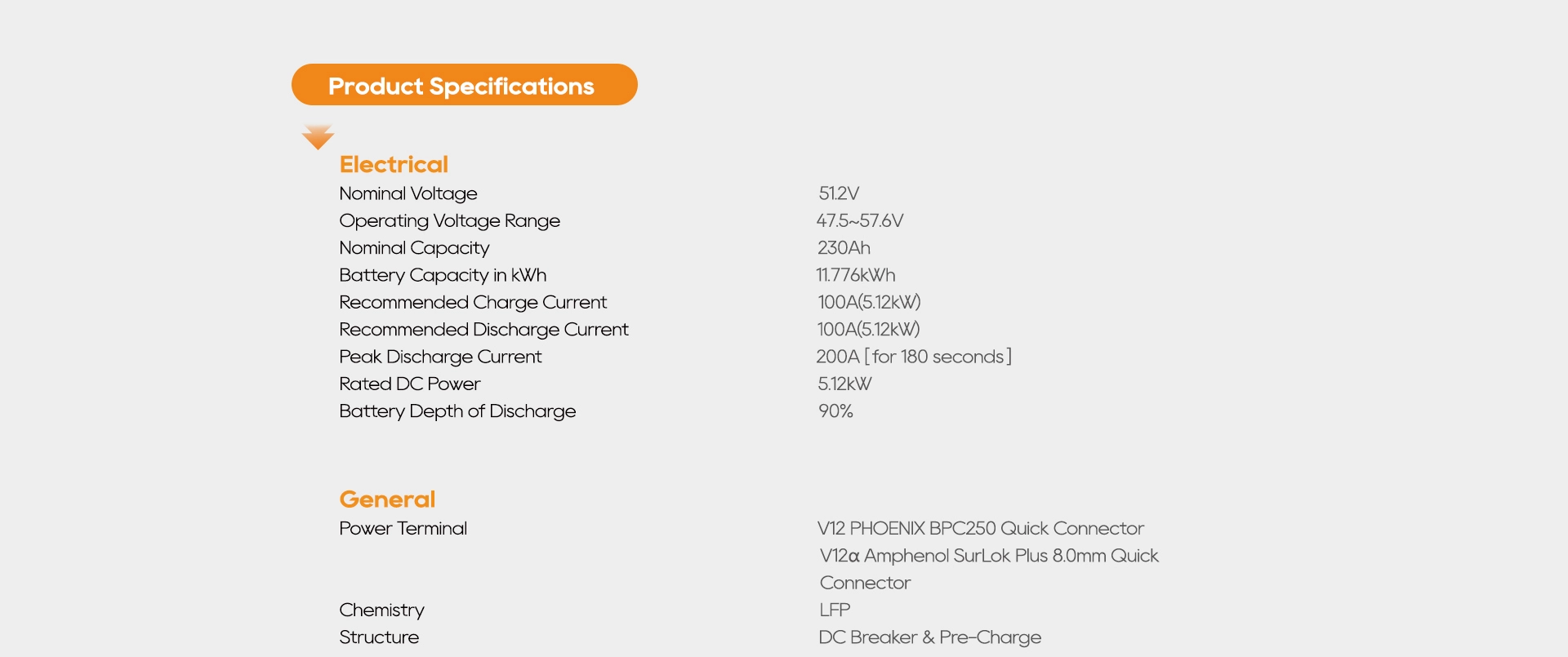

Battery Model | V12 |
---|---|
Electrical | |
Nominal Voltage | 51.2V |
Operating Voltage Range | 47.5~57.6V |
Nominal Capacity | 230Ah |
Nominal Energy | 11.776kWh |
Recommended Charge/Discharge Current | 100A(5.12kW) |
Peak Discharge Current | 200A[ for 180 seconds ] |
Battery Depth of Discharge | 90% |
General | |

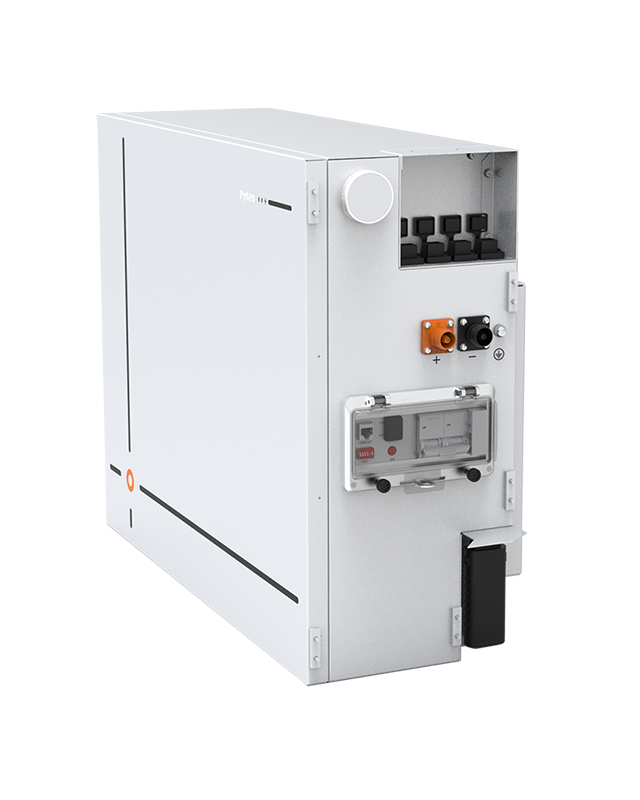

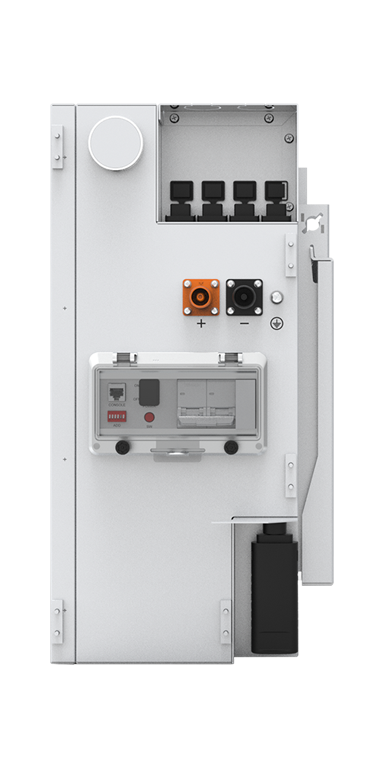

Power Terminal | V12 PHOENIX BPC250 Quick Connector V12α Amphenol SurLok Plus 8.0mm Quick Connector |
Chemistry | LFP |
Structure | DC Breaker & Pre-Charge Circuit Integrated |
Communication Interface | RS485 / CAN / WIFI / Dry Contact |
Dimensions(L x W x H) | 640 x 230 x 520mm / 25.20 x 9.06 x 20.47inch |
Weight | 100kg / 220.5lbs |
Operating Temperature | Charge: 0~55°C / 32~131°F / Discharge: -20~55°C / -4~131°F |
Cycle Life* | 6000 Cycles[1] |
Altitude | <13123.35ft / 4000m |
Warranty | 10 Years Basic Warranty[2] |
Ingress Protection | lP66 |
Corrosion Resistance Class | C4-M |

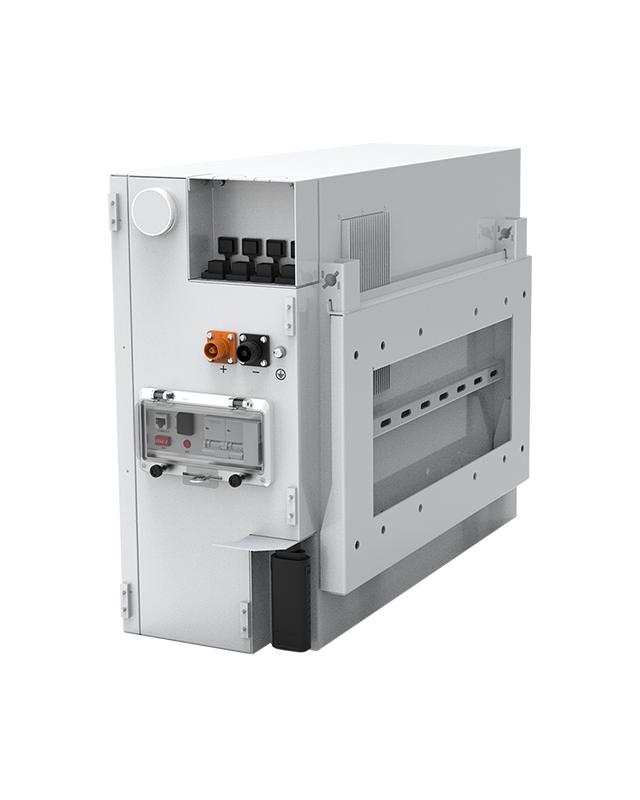

Mounting Method | Wall / Ground (W/ Optional Battery Tray) |
Heating Pad (Integrated) | Temperature Rise: 8°C/h / 14.4°F/h |
[1] Test Conditions: 25°C, 0.5C/0.5C, 90% DoD,
[2] 70% SOH at Years Warranty Activation Date
Certifications | |
UL 9540, UL 9540A, UL 1973, CEC, SGIP, IEC62619, CE, UN38.3 |
