An innovative battery solution, outperforming lead-acid batteries of the same capacity.
It's lightweight for easy portability and installation, boasts higher charge-discharge
efficiency and configures operation indicator, warning light and SOC indicator to ensure
real-time monitoring. It has high cycle life, supports the parallel expansion of 8 batteries, and is equipped with a heating function for low-temperature operation.This battery is ideal for deep-cycle off-grid use in RVs, boats, trucks, and cabins and can replace deep-cycle lead-acid batteries.

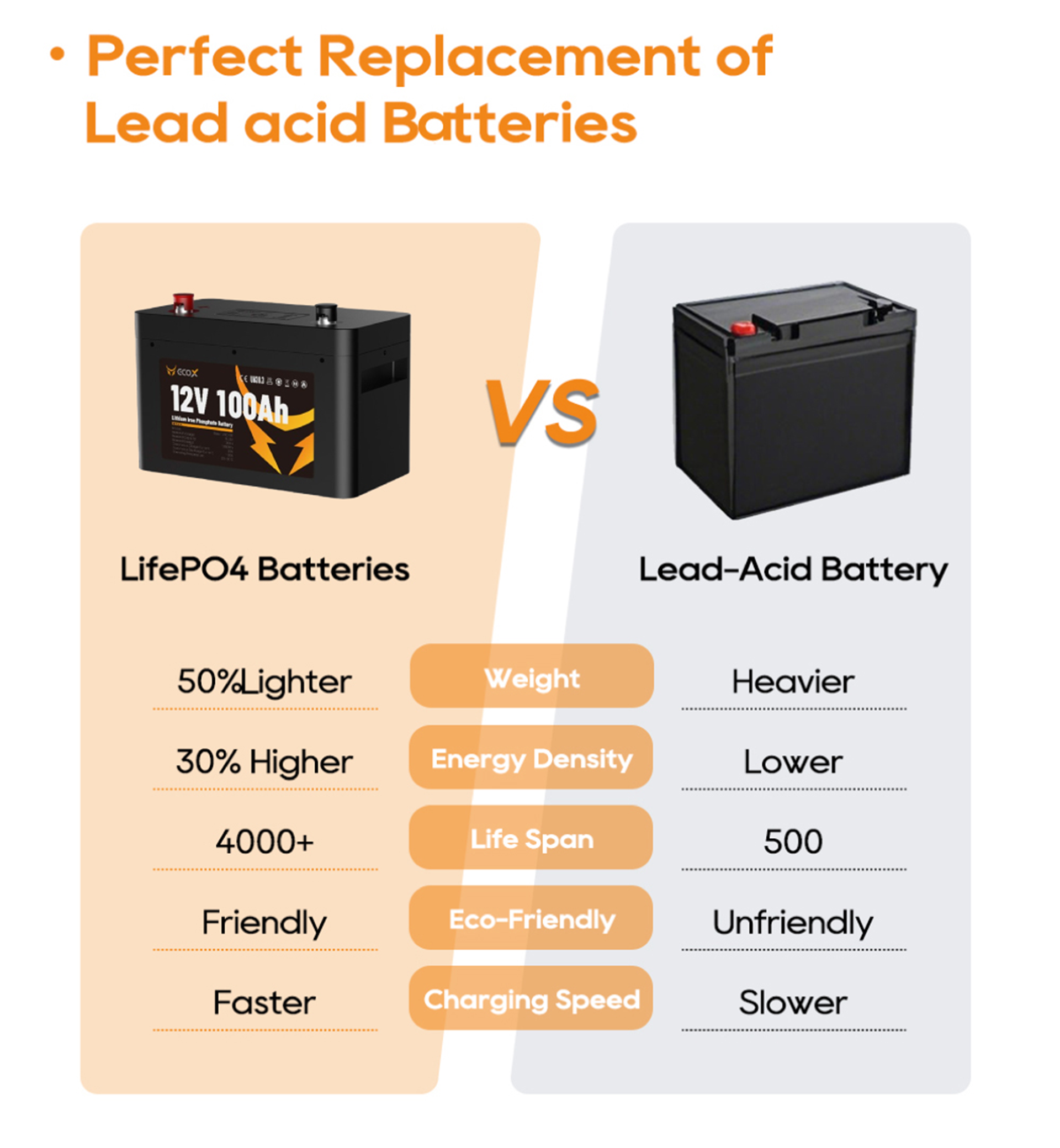

50% lighter than lead-acid batteries of the same capacity.

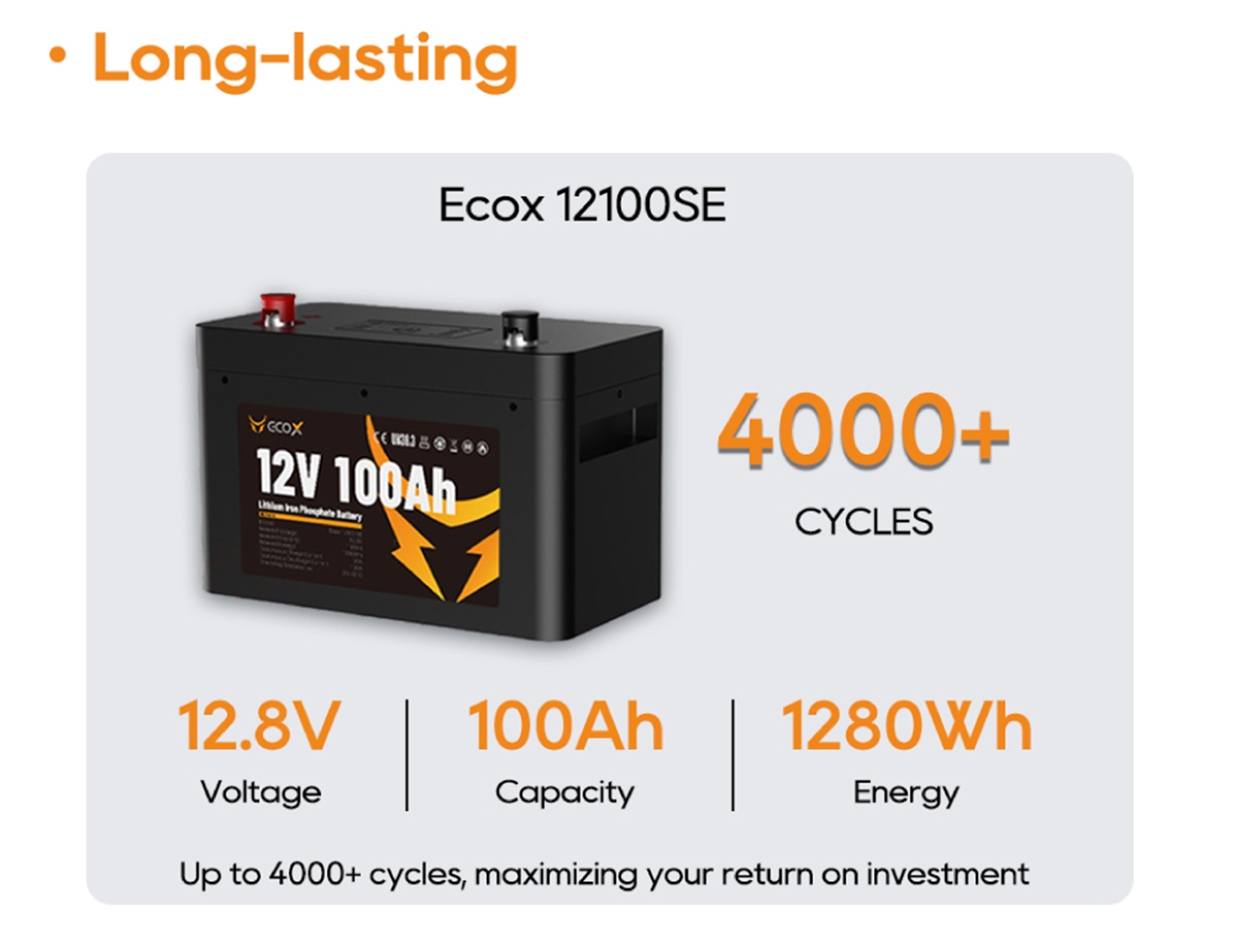

Up to 4000+cycles,maximizing your return on investment.
Supports up to 8 batteries in parallel, with a maximum energy of 10.24kWh.
30% higher energy density than lithium iron phosphate batteries of the same capacity.
Operation indicator, warning light, and SOC indicator allow you to monitor the battery status in real-time
Built-in heating film,supports battery charging in cold environments.
Battery Model | Ecox 12100 SE |
---|---|
Electrical | |
Nominal Voltage | 12.8VDC |
Nominal Capacity | 100Ah |
Internal Resistance | <10mΩ |
Round-Trip Efficiency | 99% |
Self-discharge Rate | ≤3% per month |
Scalability | 8P |
Cycle Life | >4000 |
Peak Discharge Current | 200A@10s |
Maximum Continuous charge Current | 100A |
Maximum Continuous Discharge Current | 100A |
Recommended Continuous Charge Current | ≤50A |
Recommended Charge Voltage | 14V~14.4V |
Environmental | |
Recommend Storage Temperature | 5010°C~40°C |
Storage Temperature | -20°C~60°C |
Autitude | <4000m |
Relative Humidity | 5%~95%(no condensation) |
Mechanical | |
Dimensions | 300×160×210mm |
Weight | approx 12kg |
Terminal Type | M8×1.25×14mm |
Terminal Torque | 8±1Nm |
Housing Material | Metal |
Ingress Protection | IP20 |
Battery Type | LFP |
Cooling | Nature Cooling |
Certifications | |
IEC62619,UN38.3,MSDS,CE |
