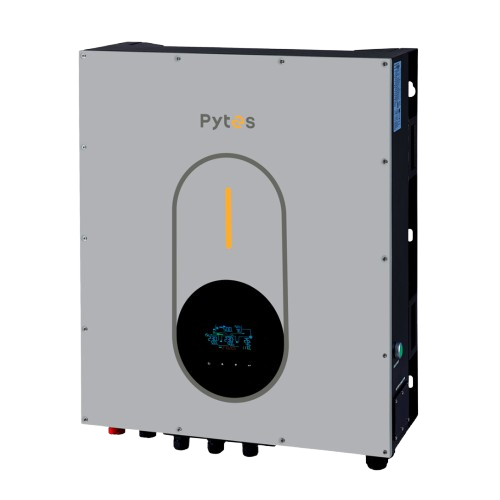

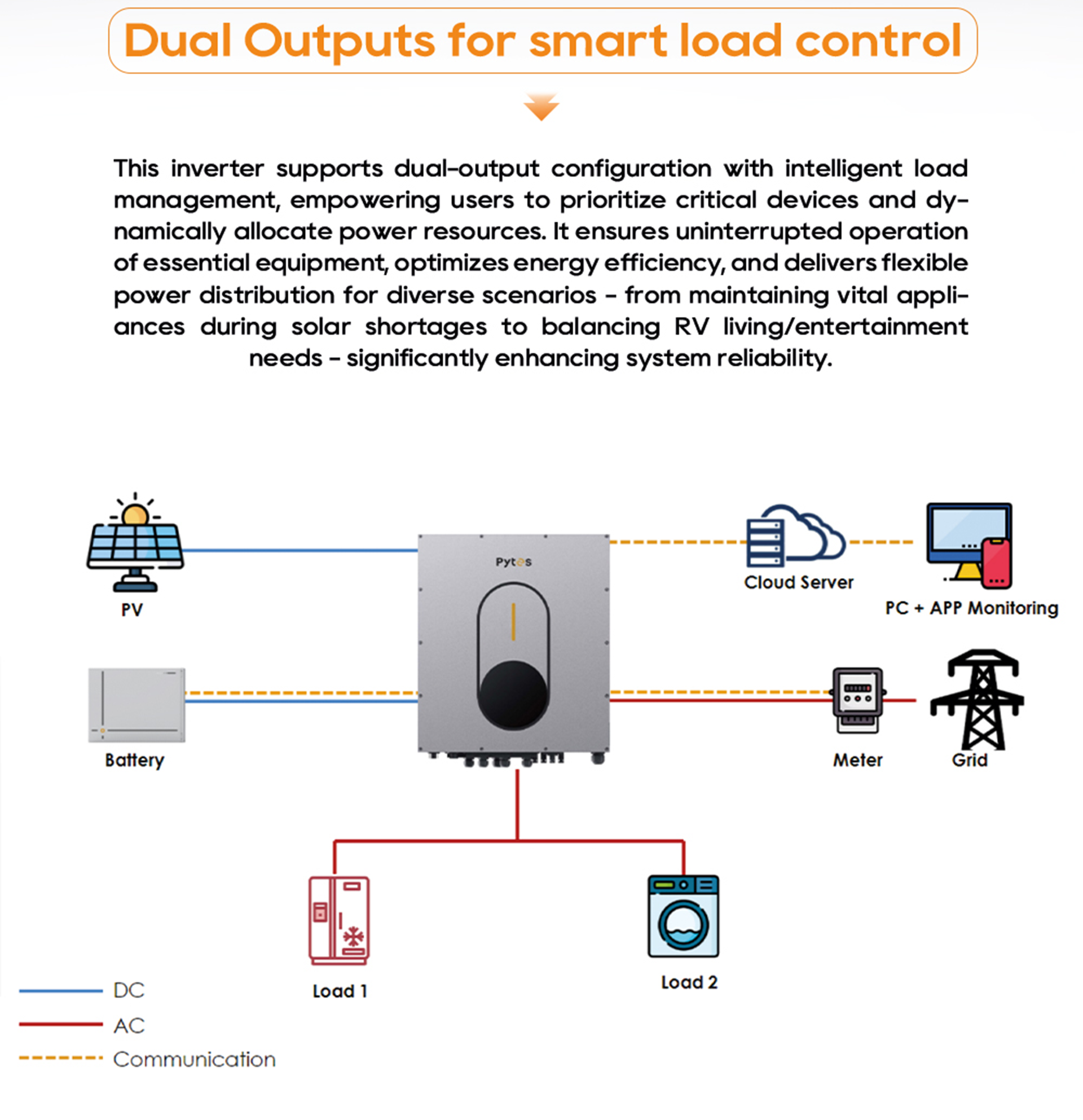

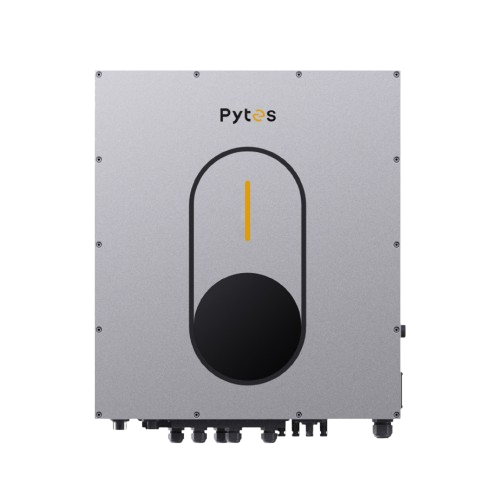

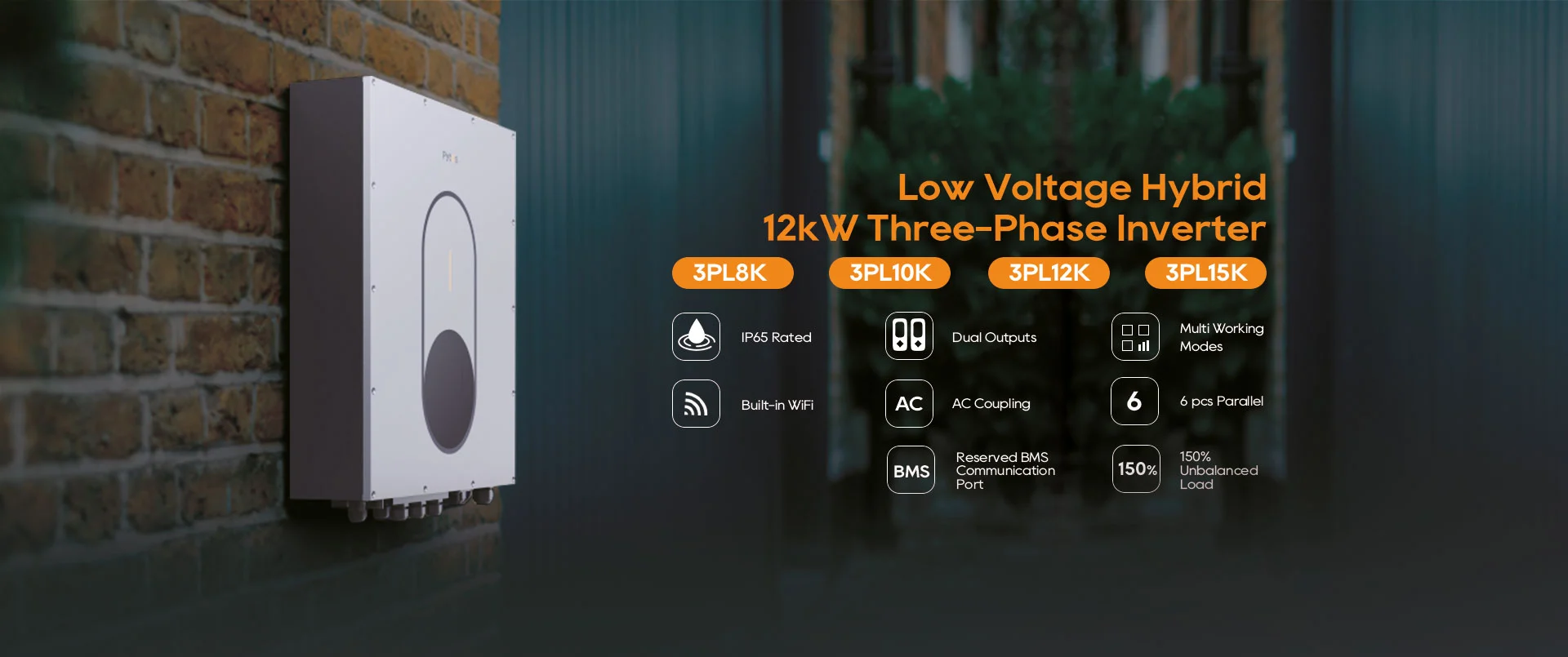

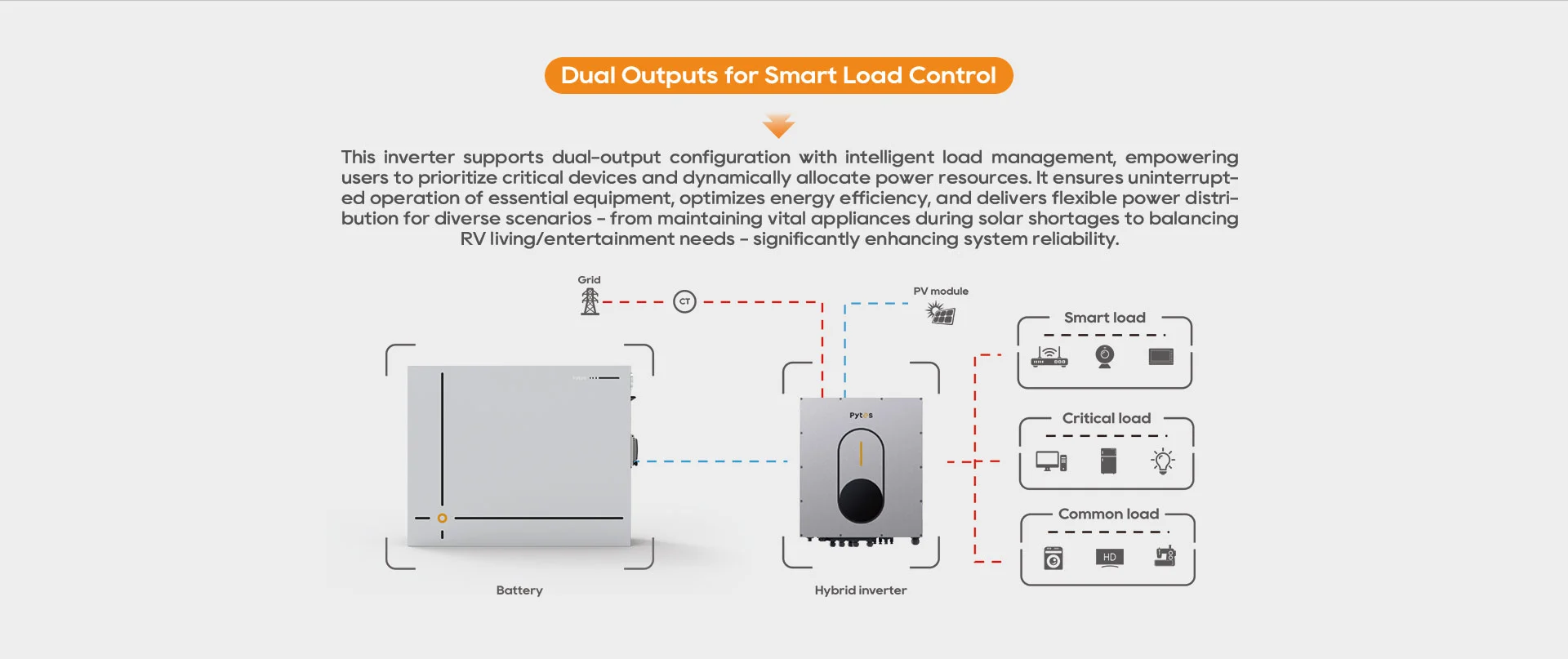

Pytes V3PL(8-15)K is a high-performance 8-15 kW hybrid inverter designed to meet the demands of both residential and small commercial energy storage systems. With IP65 waterproof protection, dual AC input, and smart load management, it ensures stable power supply under various conditions. Built-in WiFi monitoring, scalable parallel operation, and customizable charging settings make this inverter a flexible, reliable, and future-ready solution for off-grid and hybrid solar applications.



MODELV3PL8KV3PL10KV3PL12KV3PL15K
RATED POWER8000 W10000 W12000 W15000 W
PV INPUT (DC)
Maximum DC Power12000 W1500018000 W22500 W
Nominal DC Voltage720 VDC
Maximum DC Voltage900 VDC1000 VDC
Working DC Voltage Range150 VDC ~ 900 VDC300 VDC ~ 1000 VDC
Start-up Voltage / Initial Feeding Voltage150 VDC / 150 VDC320 VDC / 350 VDC
MPP Voltage Range / Full Load MPP Voltage Range150 VDC ~ 850 VDC /
400VDC ~ 850 VDC		150 VDC ~ 850 VDC /
420VDC ~ 850 VDC		150 VDC ~ 850 VDC /
400VDC ~ 850 VDC		350 VDC ~ 950 VDC /
348 VDC ~ 900 VDC
Number of MPP Trackers / Maximum Input Current2 /A: 15A, B:15A2 /A: 18A, B:18A2 /A: 27A, B:18A2 / A: 26A, B:26A
GRID OUTPUT (AC)
Nominal Output Voltage230 VAC (P-N) / 400 VAC (P-P)
Output Voltage Range184 - 265 VAC per phase
Output Frequency Range47.5 ~ 51.5 Hz or
59.3~ 60.5Hz
Nominal Output Current11.6A per phase14.5A per phase17.4A per phase21.7A per phase
Inrush Current/Duration22 A per phase / 20ms
Maximum Output Fault Current/Duration66 A per phase / 1ms
Maximum output Overcurrent Protection66 A per phase
Power Factor Range0.9 lead – 0.9 lag
AC INPUT
AC Start-up Voltage120-140 VAC per phase
Auto Restart Voltage180 VAC per phase
Acceptable Input Voltage Range170 - 290 VAC per phase
Nominal Frequency50 Hz / 60 Hz
AC Input Power8KVA/8KW10KVA/10KW12KVA/12KW15KVA/15KW
Maximum AC Input Current40 A
Inrush Input Current40 A / 1ms
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage230 VAC (P-N) / 400 VAC (P-P)
Output Frequency50 Hz / 60 Hz (auto sensing)
Output WaveformPure sine wave
Output Power8KVA/8KW10KVA/10KW12KVA/12KW15KVA/15KW
Efficiency (DC to AC)93%91%
BATTERY & CHARGER (Lead-acid/Li-ion)
DC Voltage Range40 – 60 VDC40 – 62 VDC
Nominal DC Voltage48 VDC
Maximum Battery Discharging Current200A220A240 A375 A
Maximum Charging Current160A200A240 A300 A
GENERAL
PHYSICAL
Dimension, D X W X H (mm)247 x 500 x 650
Net Weight (kgs)505473
INTERACE
Communication PortRS-232/USB/RS485/CAN/WI-FI
Intelligent SlotOptional SNMP, Modbus cards available
ENVIRONMENT
Protective ClassI

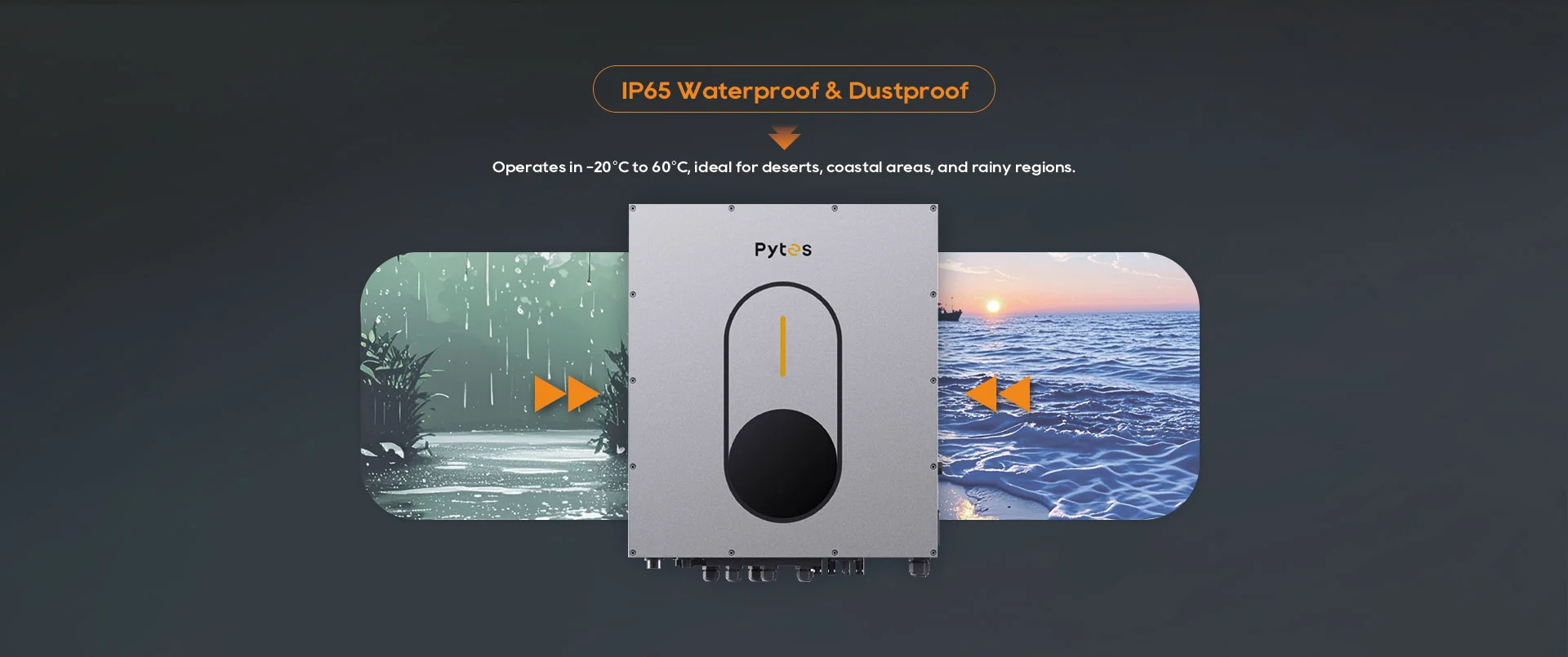

Ingress Protection RatingIP65
Humidity0 ~ 100% RH (No condensing)
Operating Temperature-25 to 60°C (Power derating above 45°C)
AltitudeMax. 1000m*
* Power derating 1% every 100m when altitude is over 1000m.
