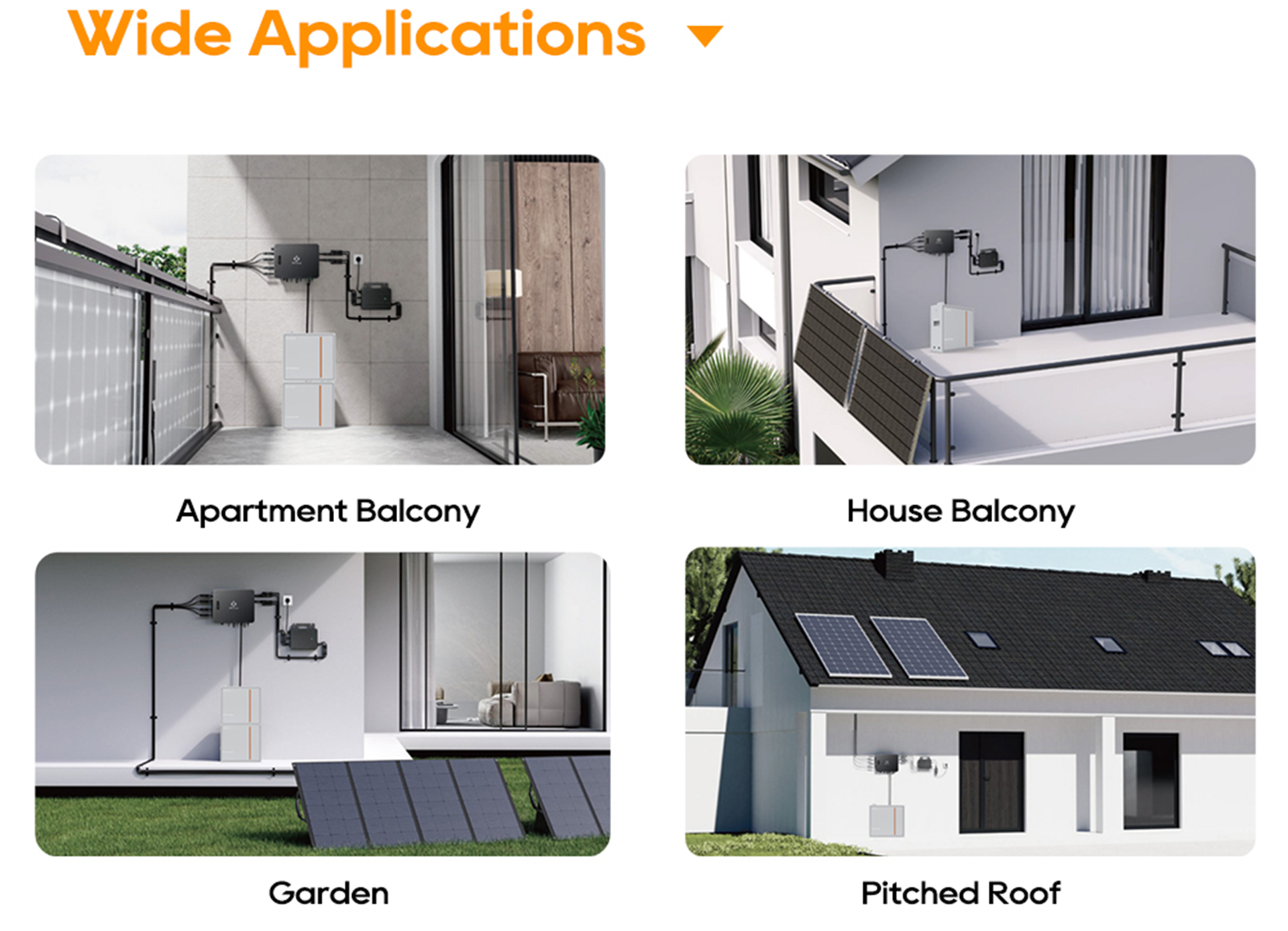

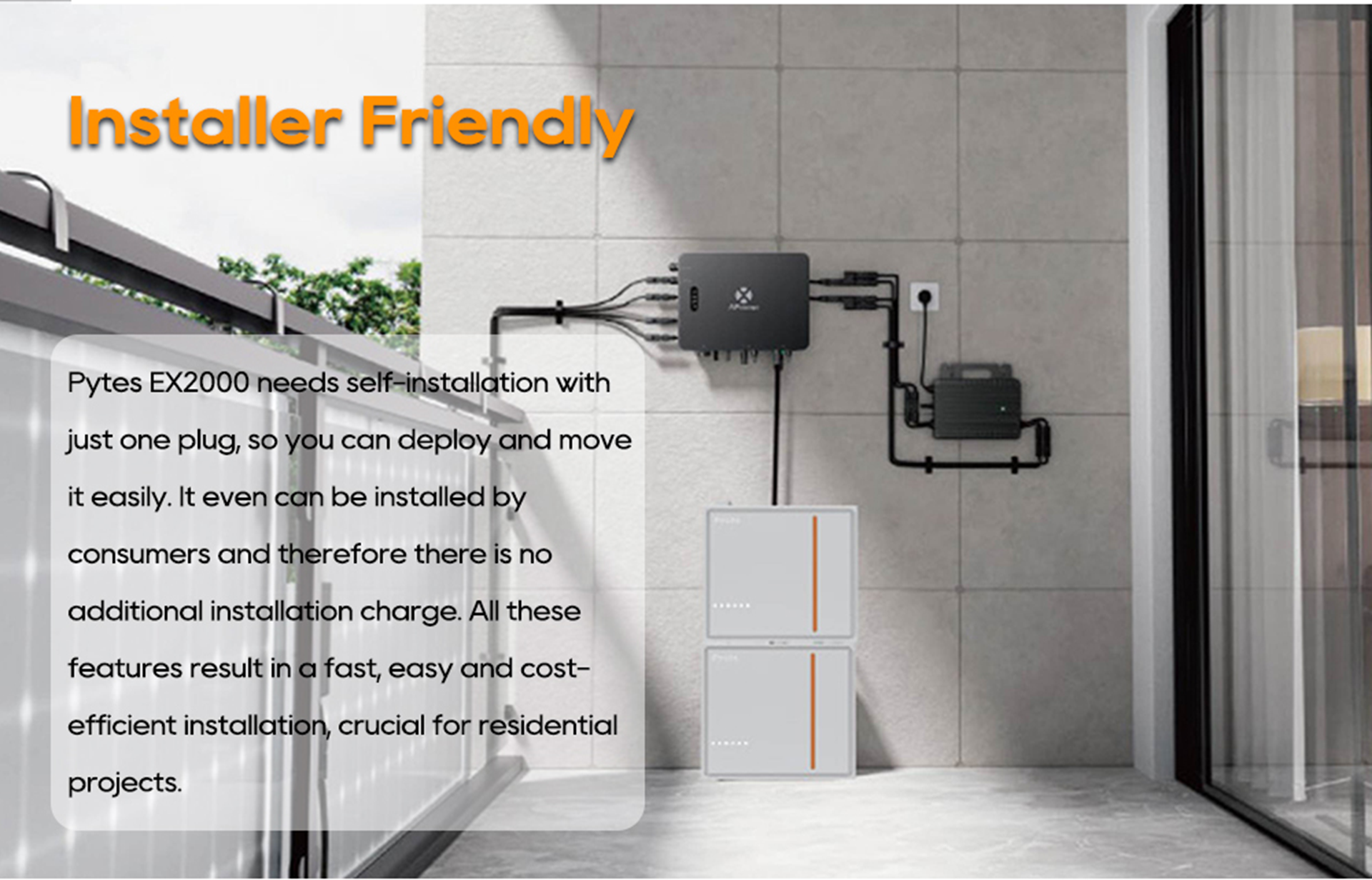

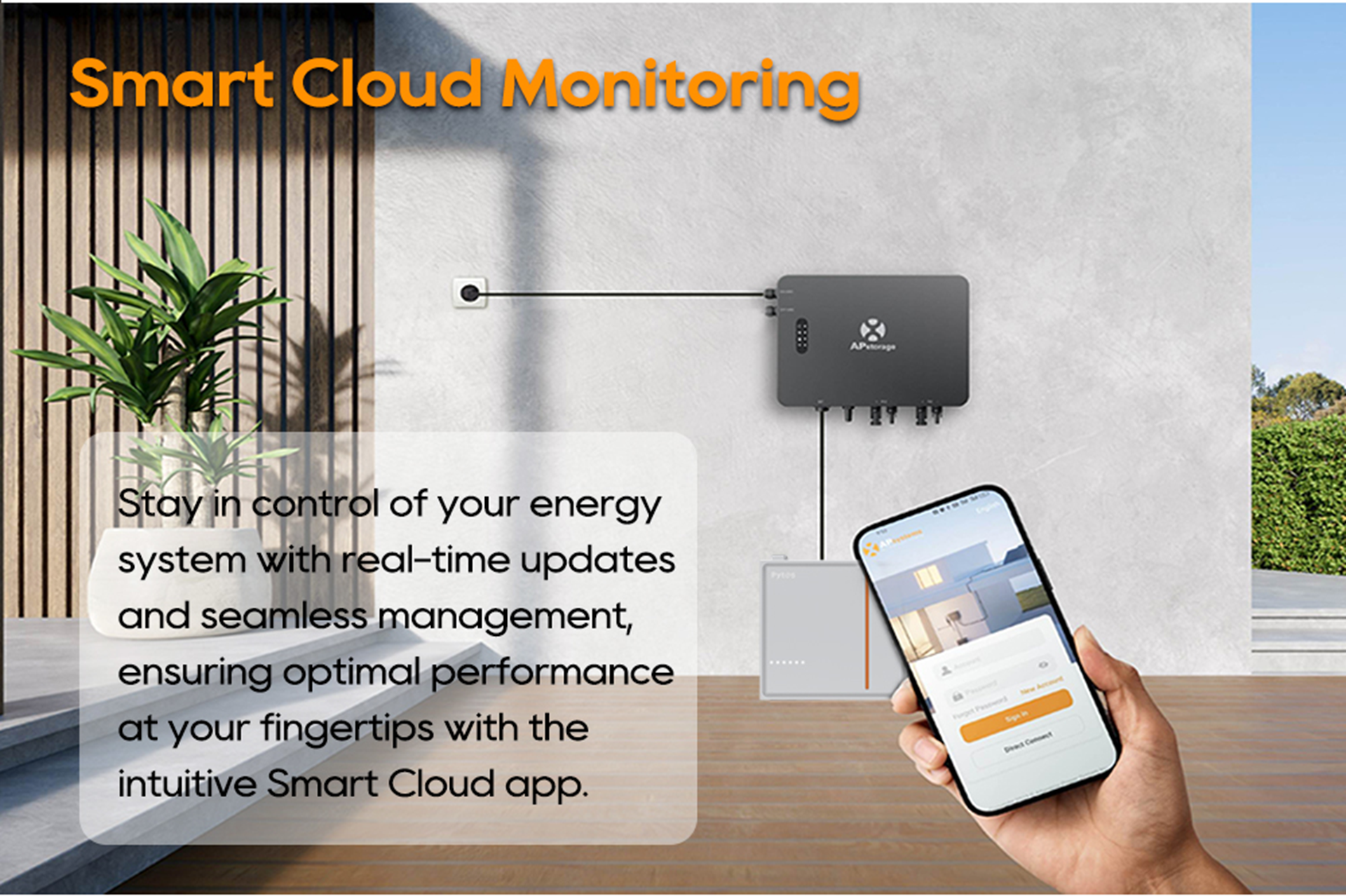

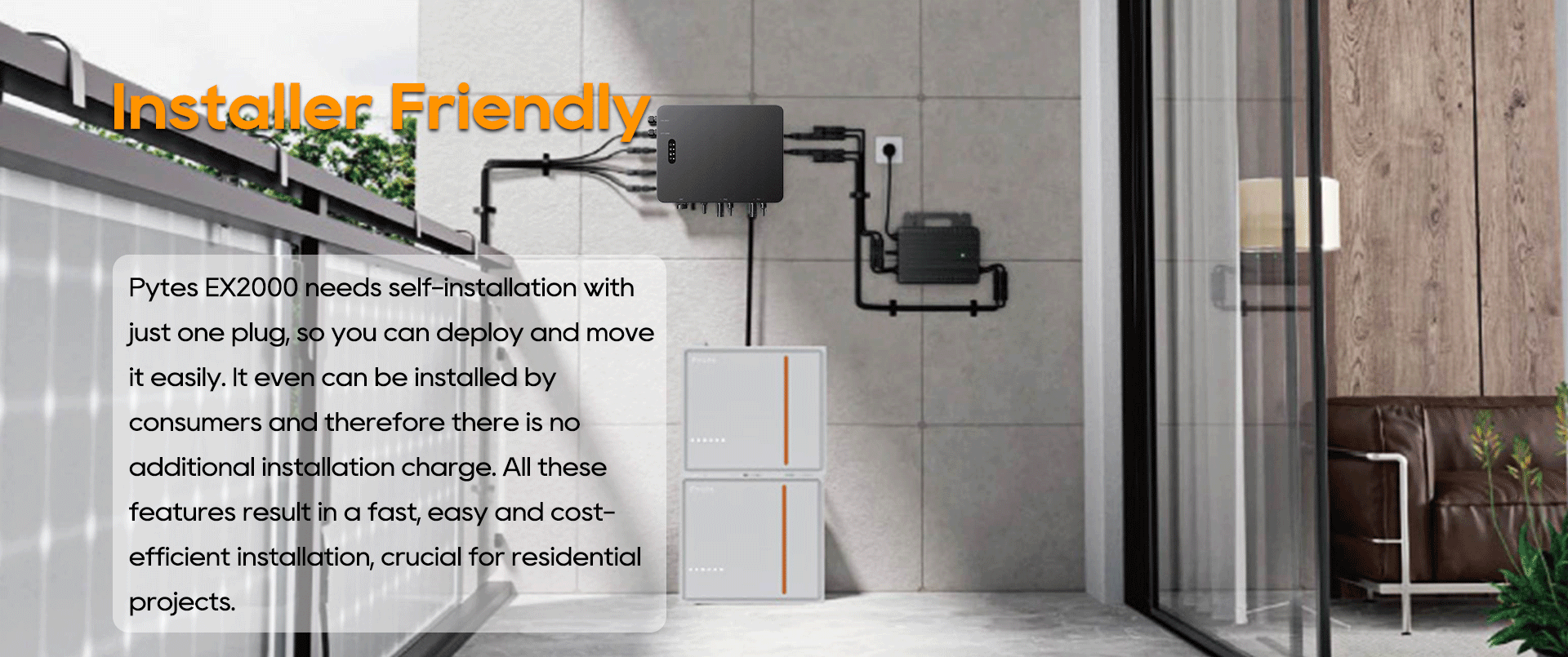

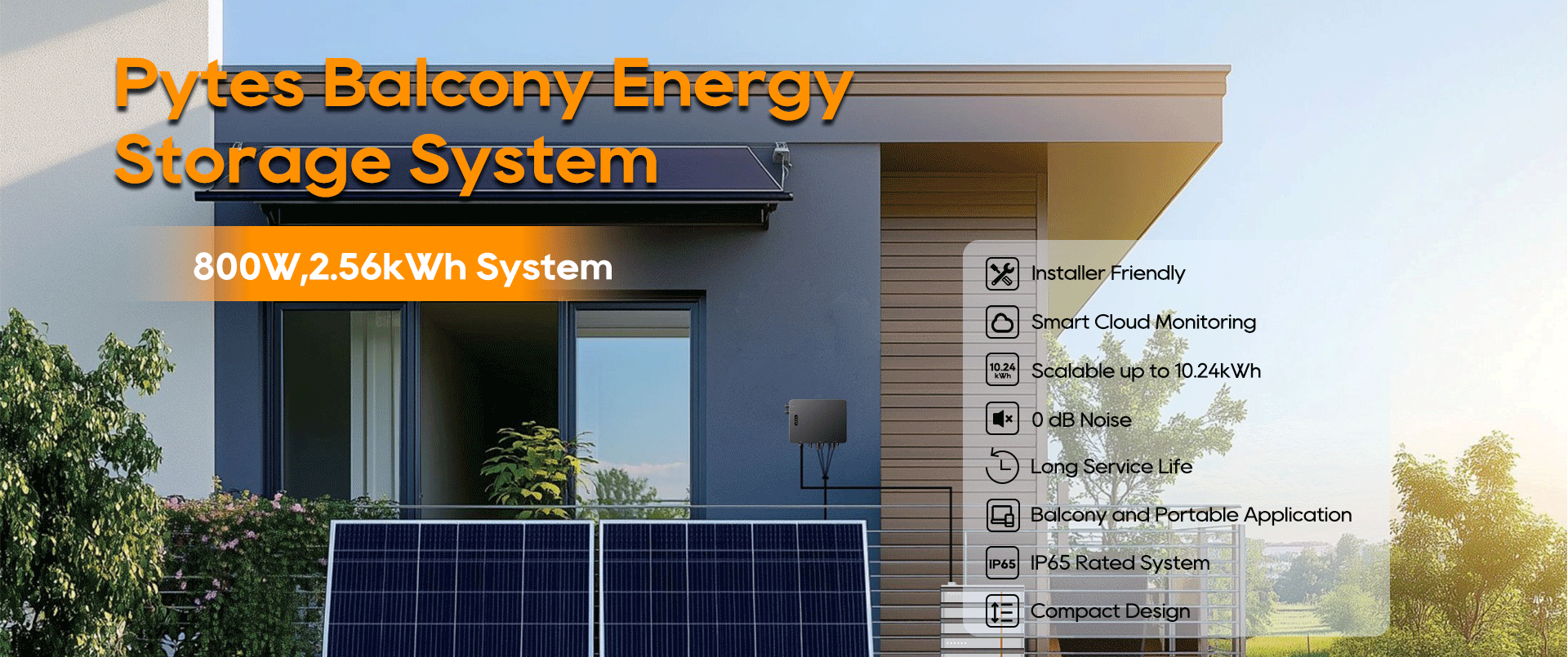

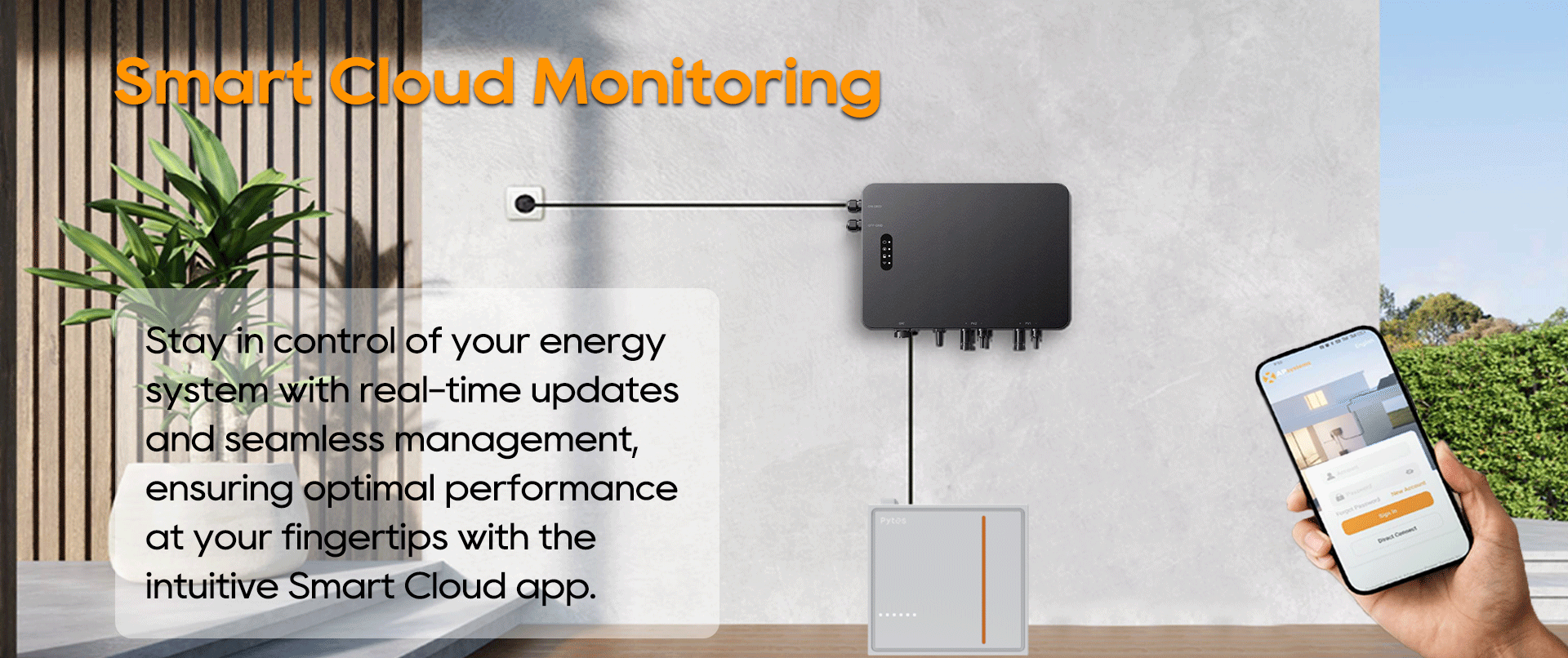

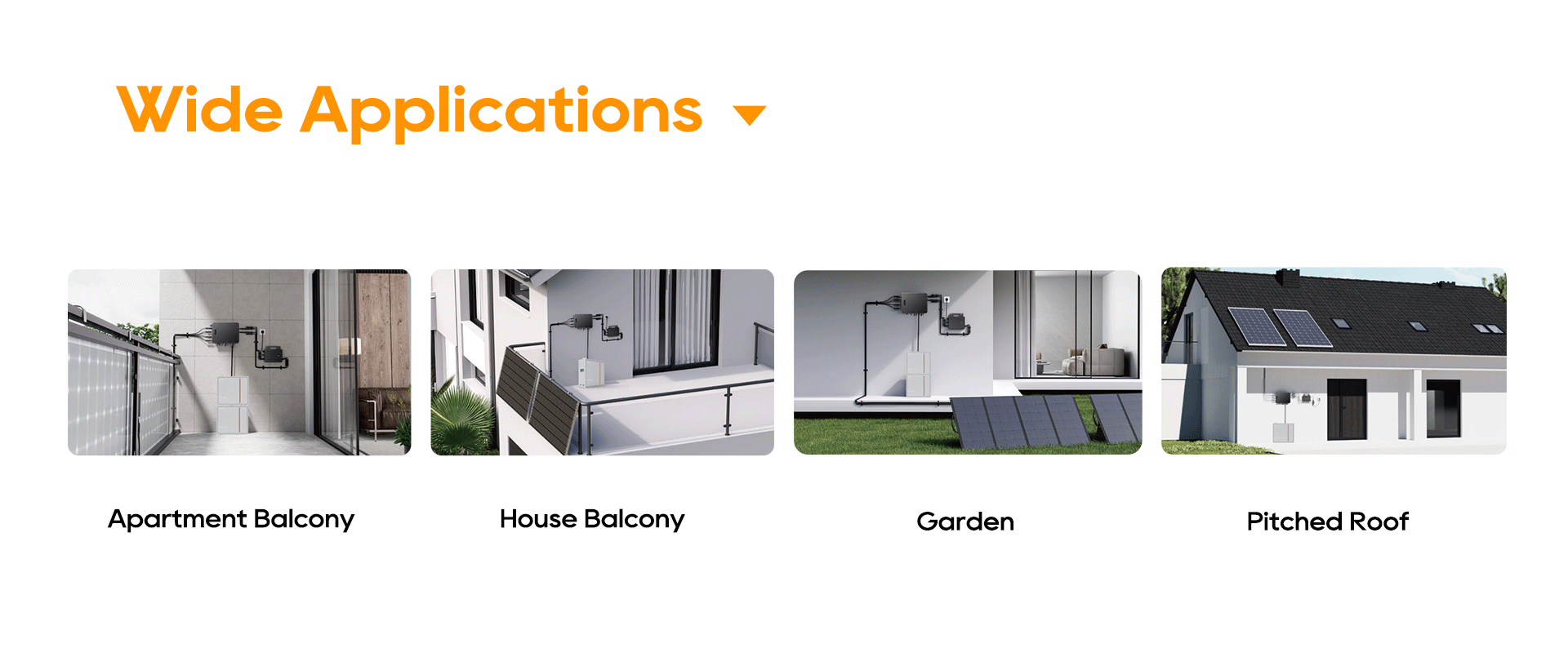

Pytes Balcony Energy Storage System is an all-in-one solar battery solution specially designed for apartment residents and urban users. With 800W output and 2.56kWh capacity, it enables easy energy independence for balconies, small rooftops, and portable scenarios. IP65-rated, silent operation (0 dB), and tool-free installation make it user-friendly and flexible. Scale up to 10.24kWh by adding more units to meet larger household or backup needs. Enjoy real-time monitoring via the Pytes smart cloud platform and harness the power of the sun with minimal space and noise. It’s the perfect choice for energy-conscious households looking to reduce bills and achieve sustainability without roof modifications or permits.

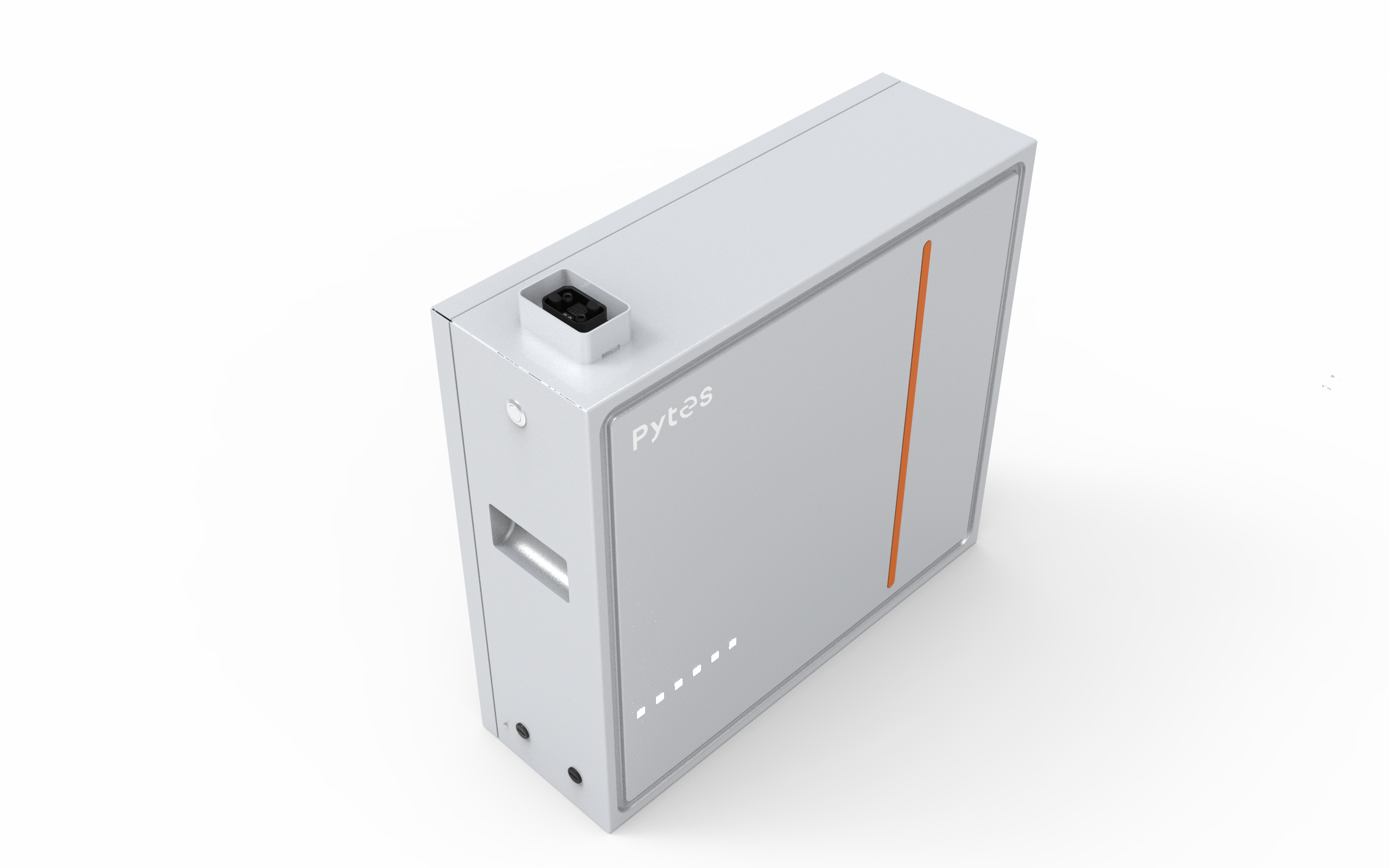

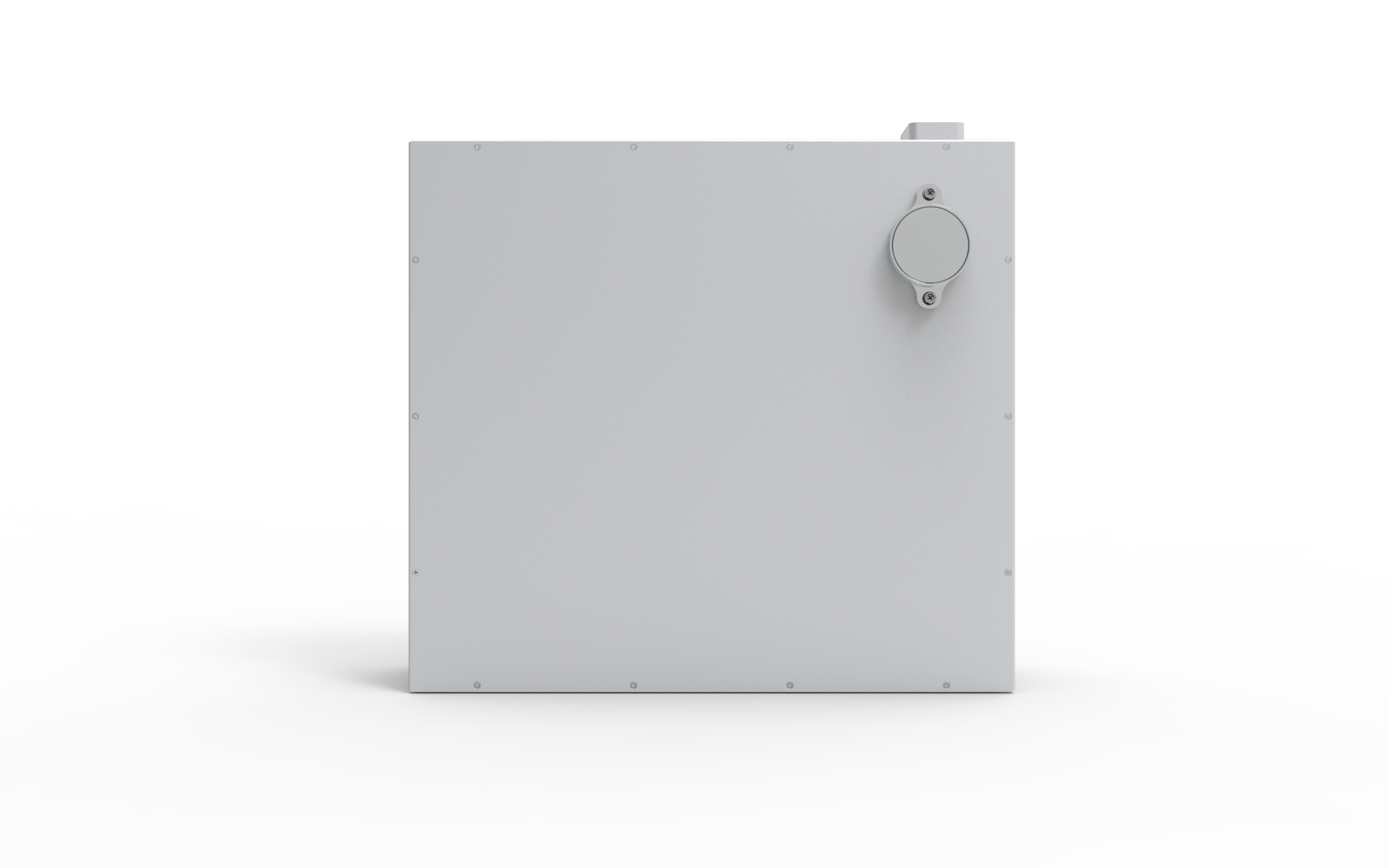

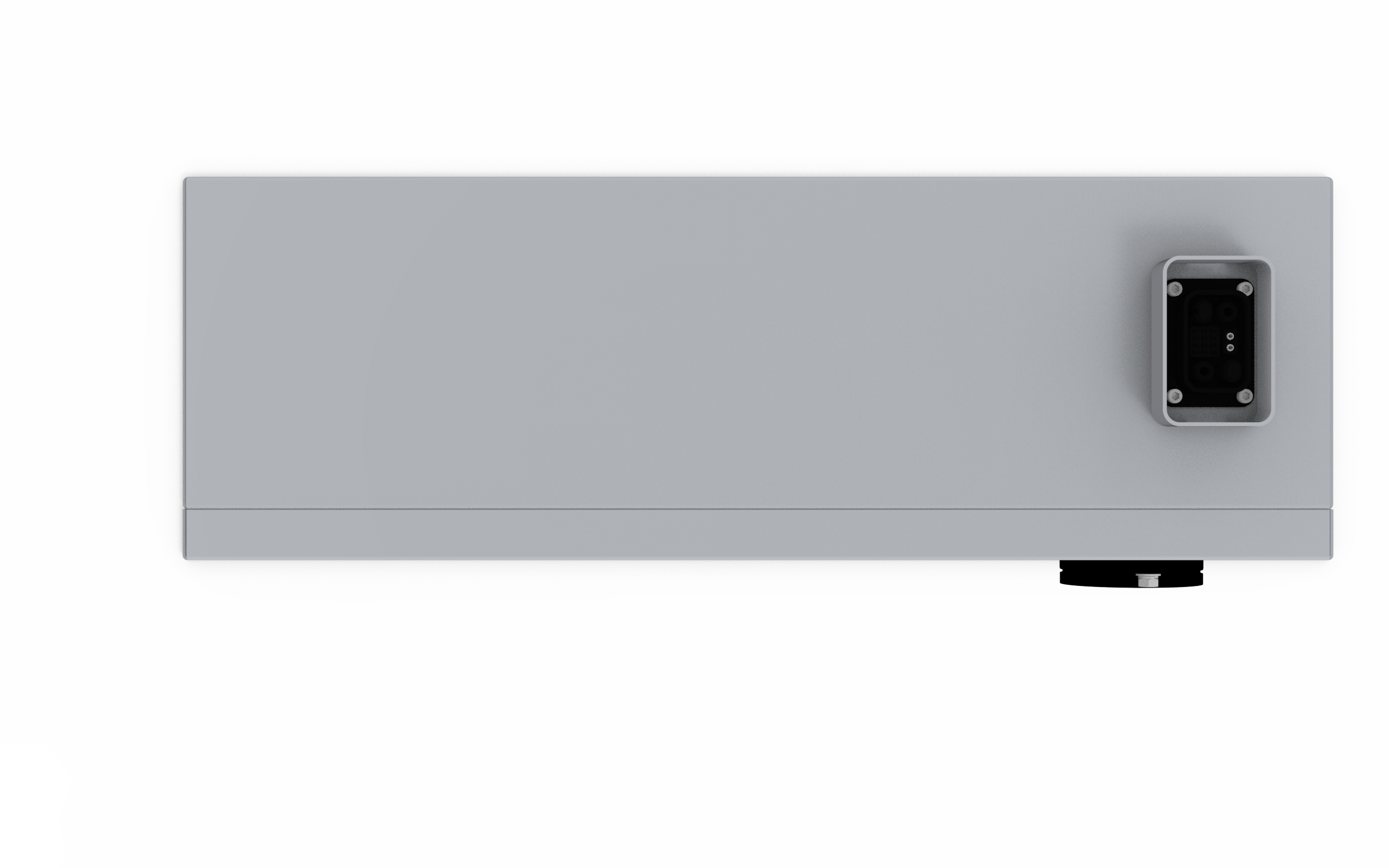

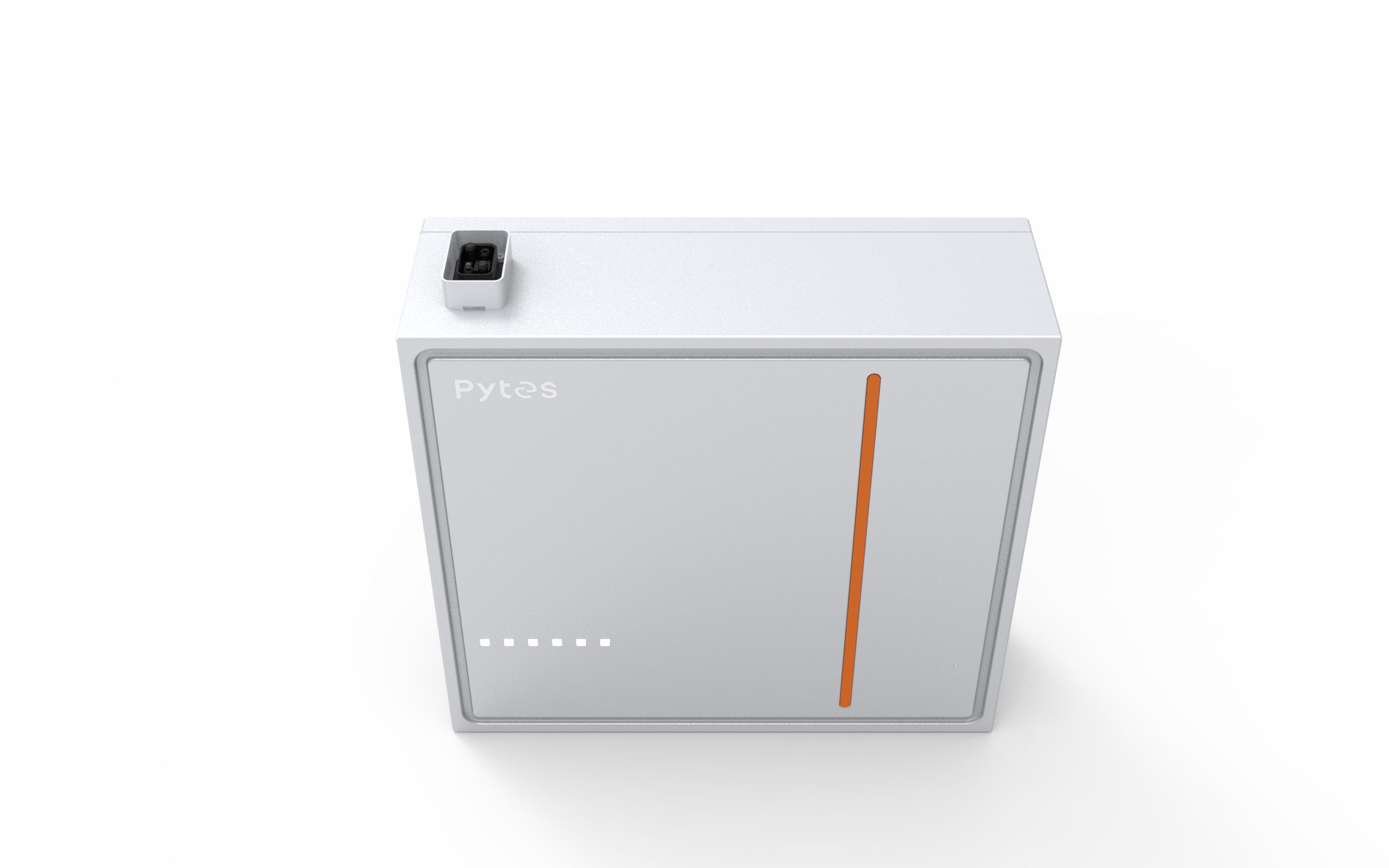

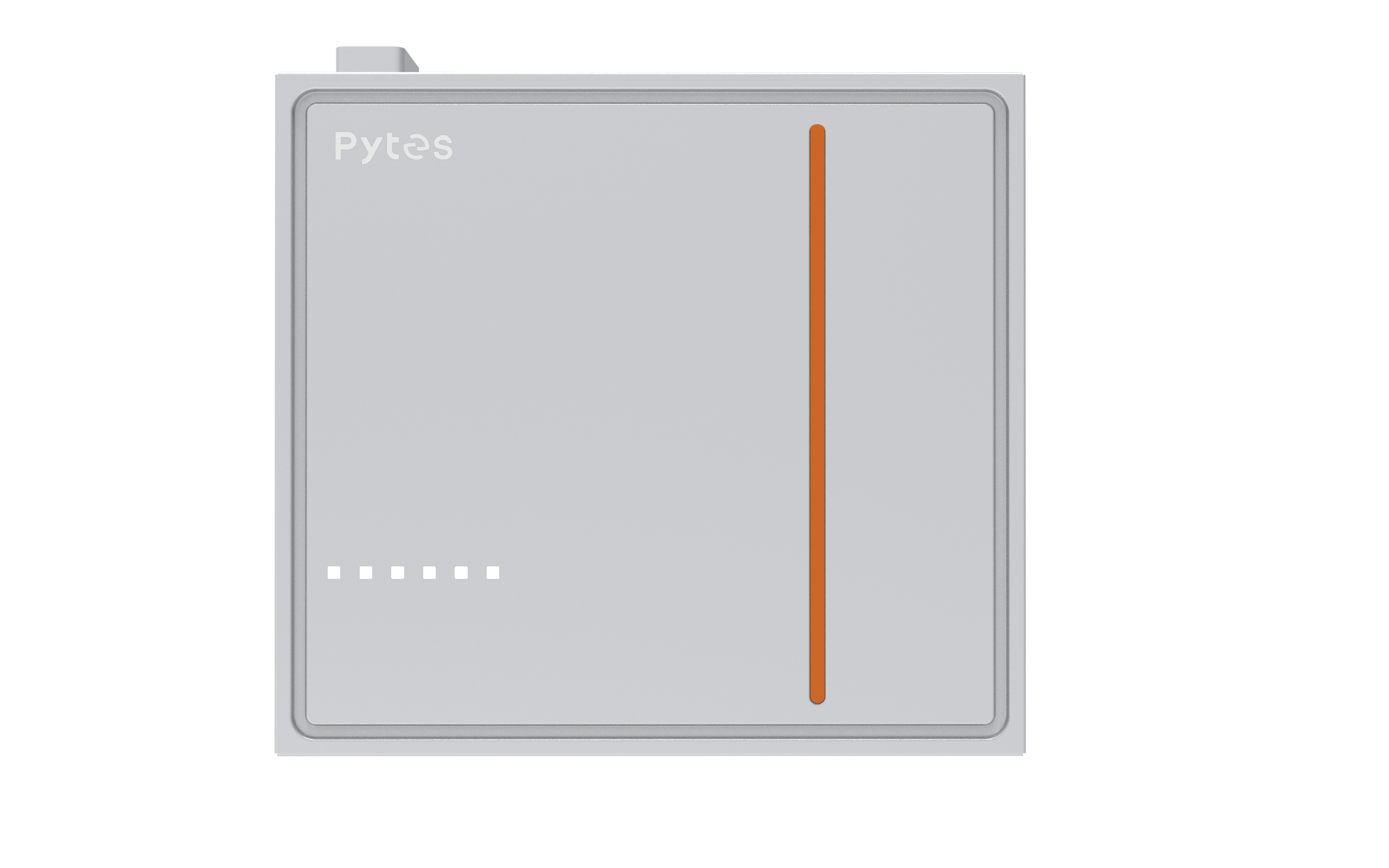

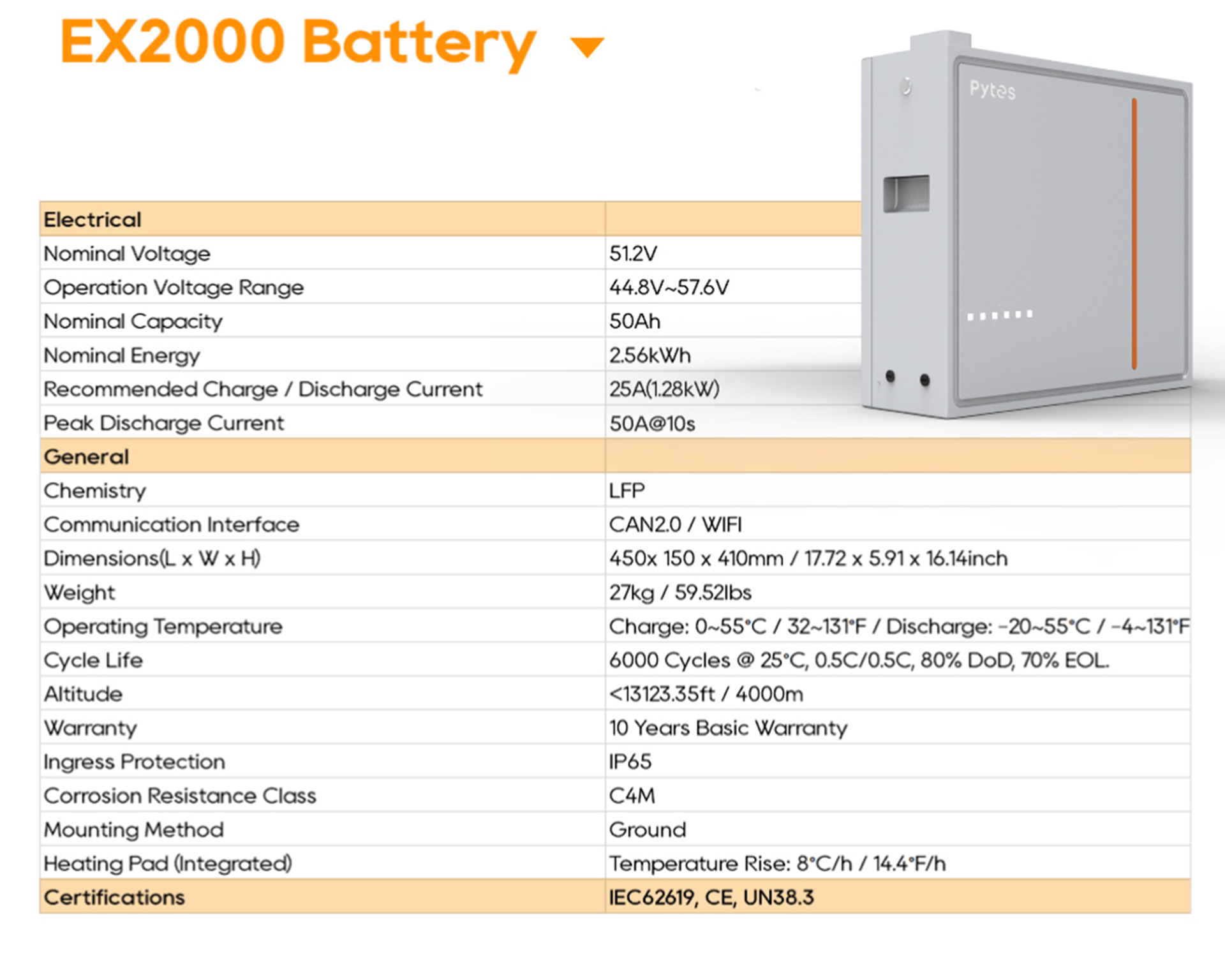

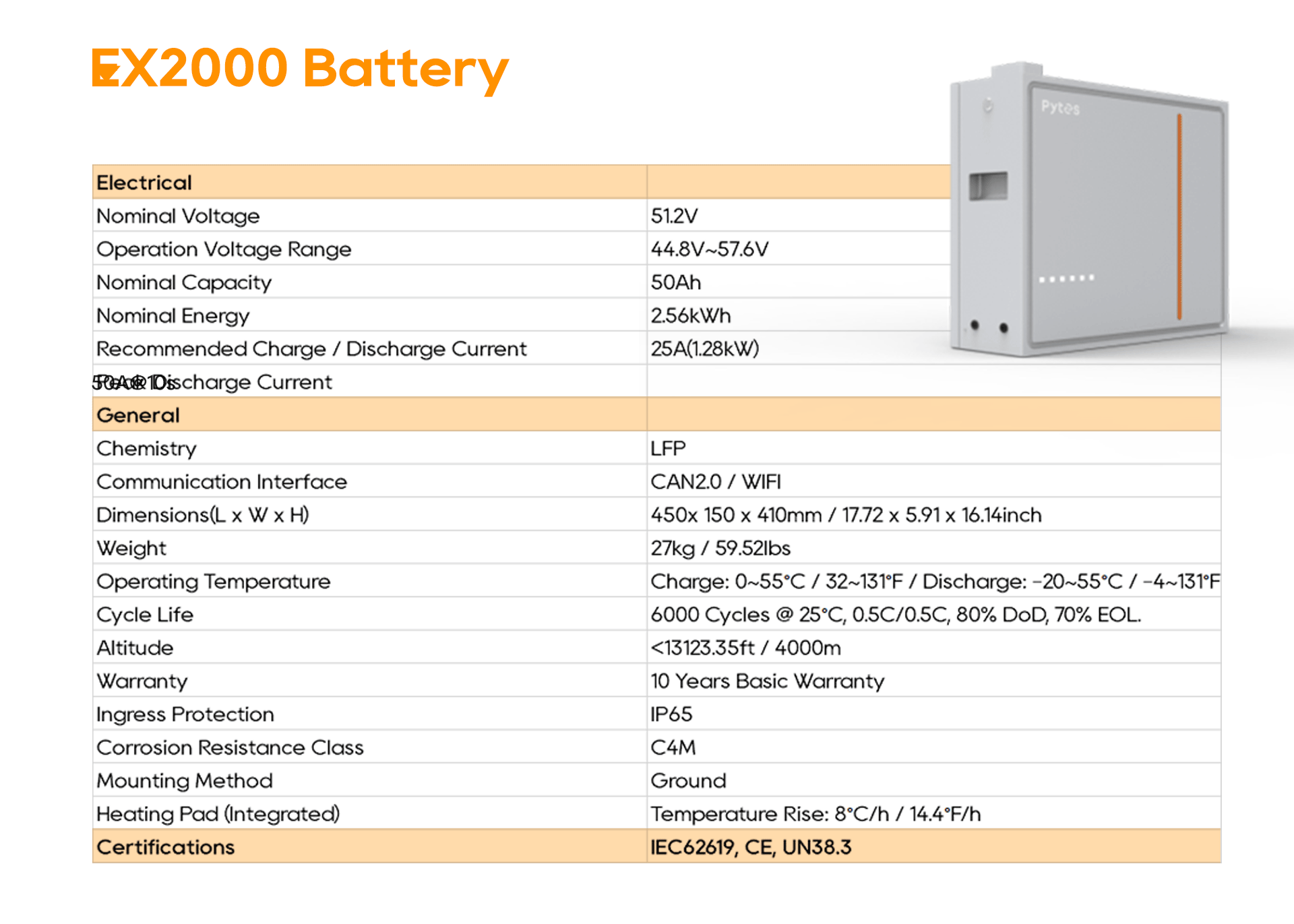

Battery ModelEX2000
Electrical
Nominal Voltage51.2V
Operating Voltage Range44.8~57.6V
Nominal Capacity50Ah
Nominal Energy2.56kWh
Recommended Charge/Discharge Current25A(1.28kW)
Peak Discharge Current50A@10s
General
ChemistryLFP
Communication InterfaceCAN2.0 / WIFI
Dimensions(L x W x H)

450x 150 x 410mm / 17.72 x 5.91 x 16.14inch

Weight27kg / 59.52lbs
Operating TemperatureCharge: 0~55°C / 32~131°F / Discharge: -20~55°C / -4~131°F
Cycle Life*6000 Cycles@25°C, 0.5C/0.5C,80% DoD, 70% EOL
Altitude<13123.35ft / 4000m
Warranty

10 Years Basic Warranty

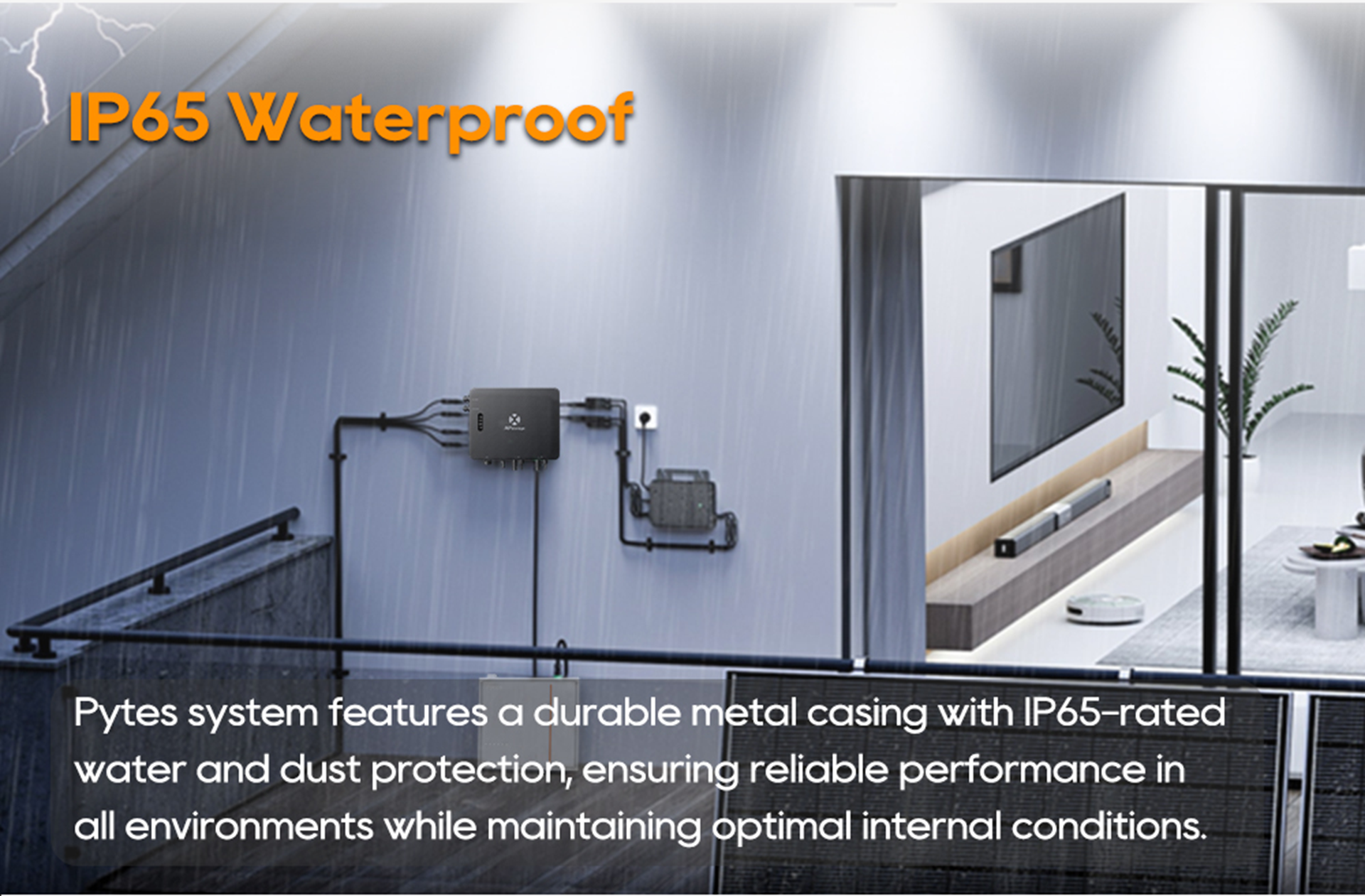

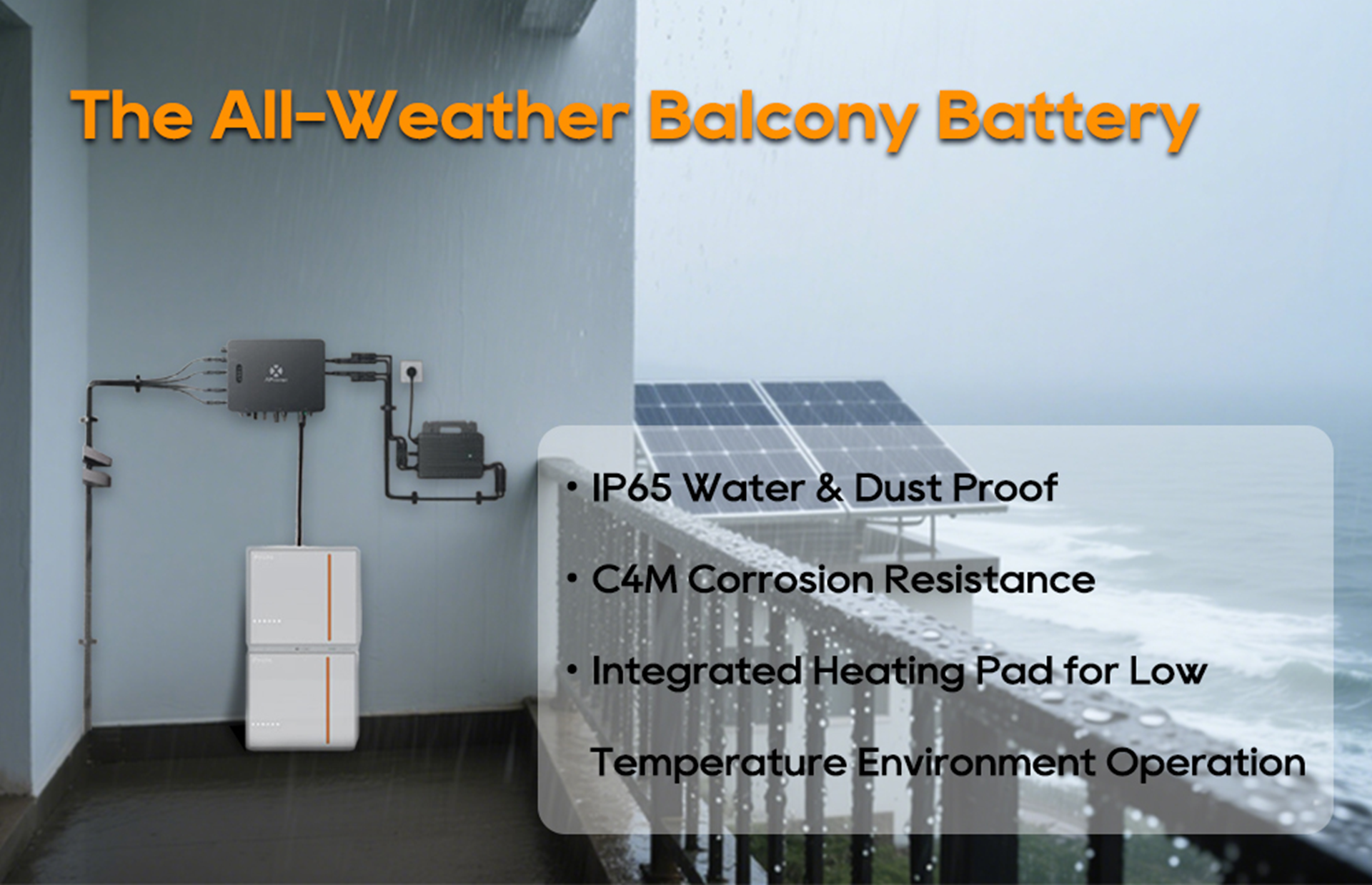

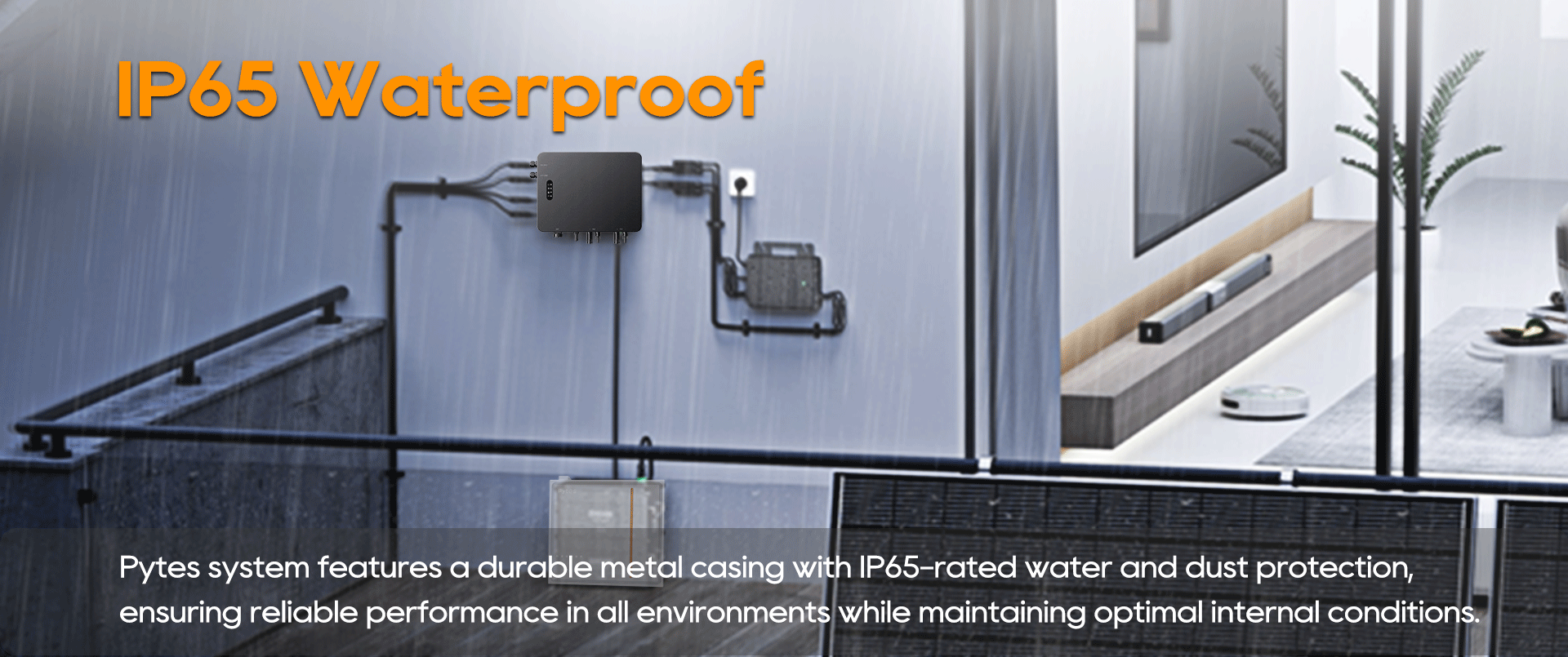

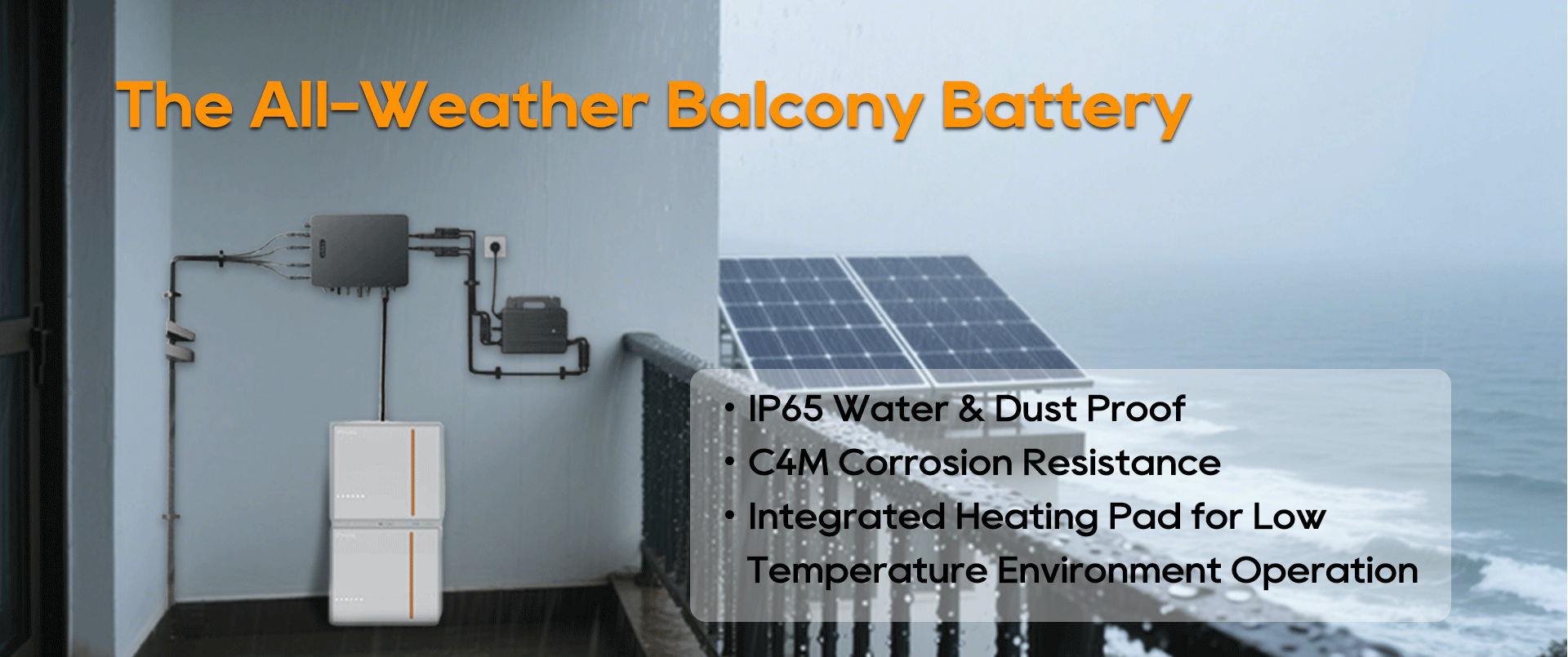

Ingress ProtectionlP65
Corrosion Resistance ClassC4M
Mounting MethodGround
Heating Pad (Integrated)Temperature Rise: 8°C/h / 14.4°F/h
Certifications
IEC62619, CE, UN38.3

*Test Conditions: 25°C, 0.5C/0.5C, 90% DoD, 70% EOL.

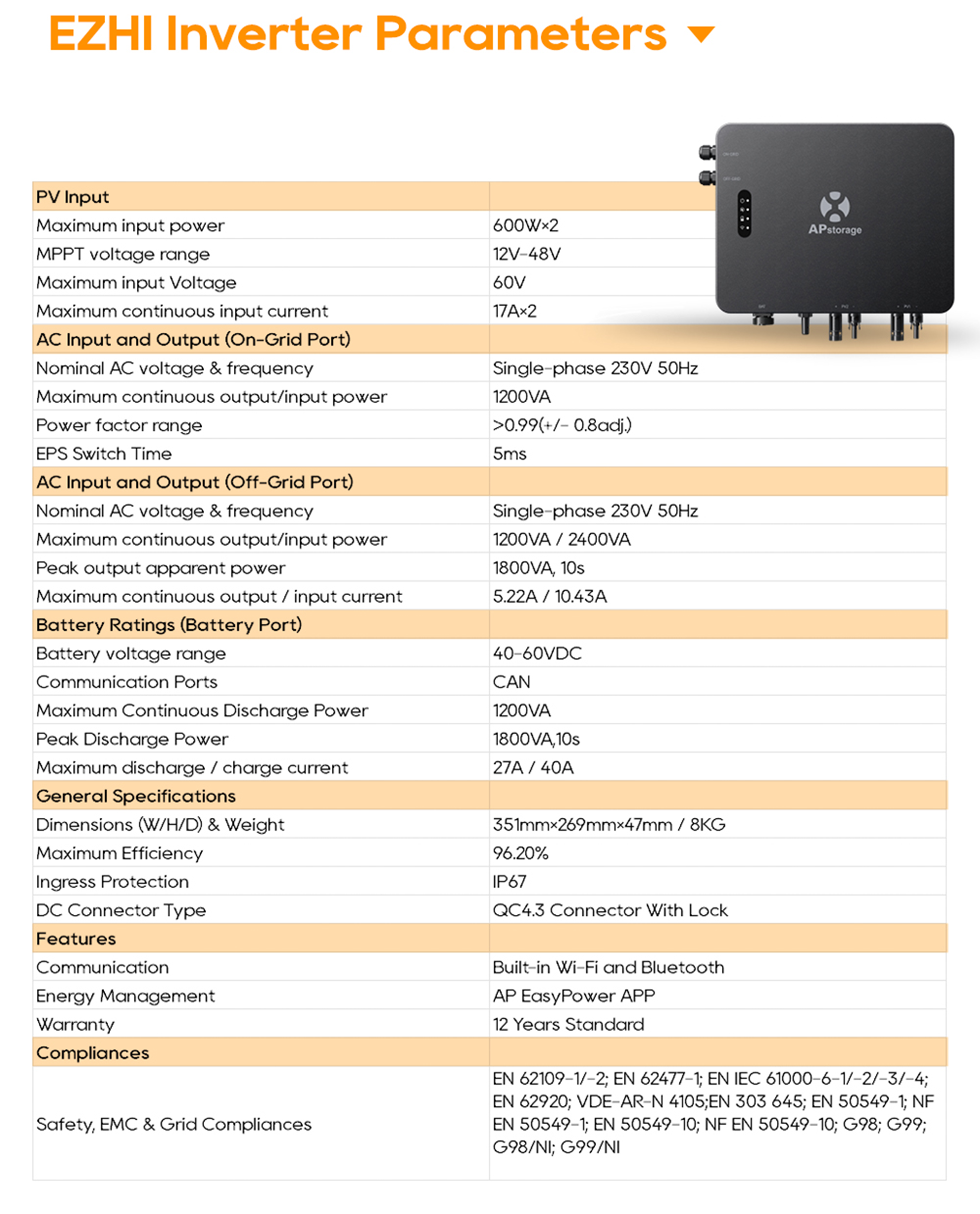

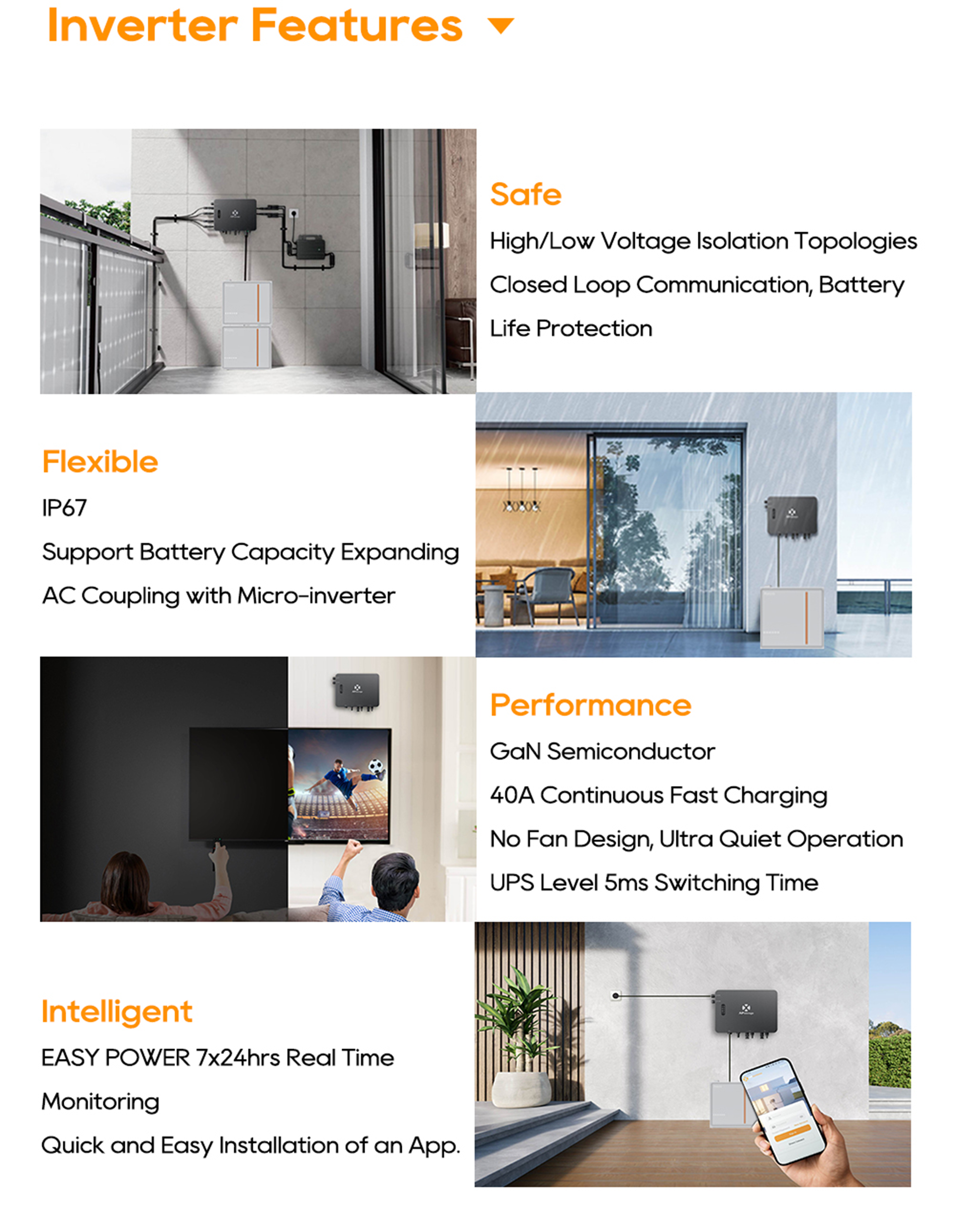

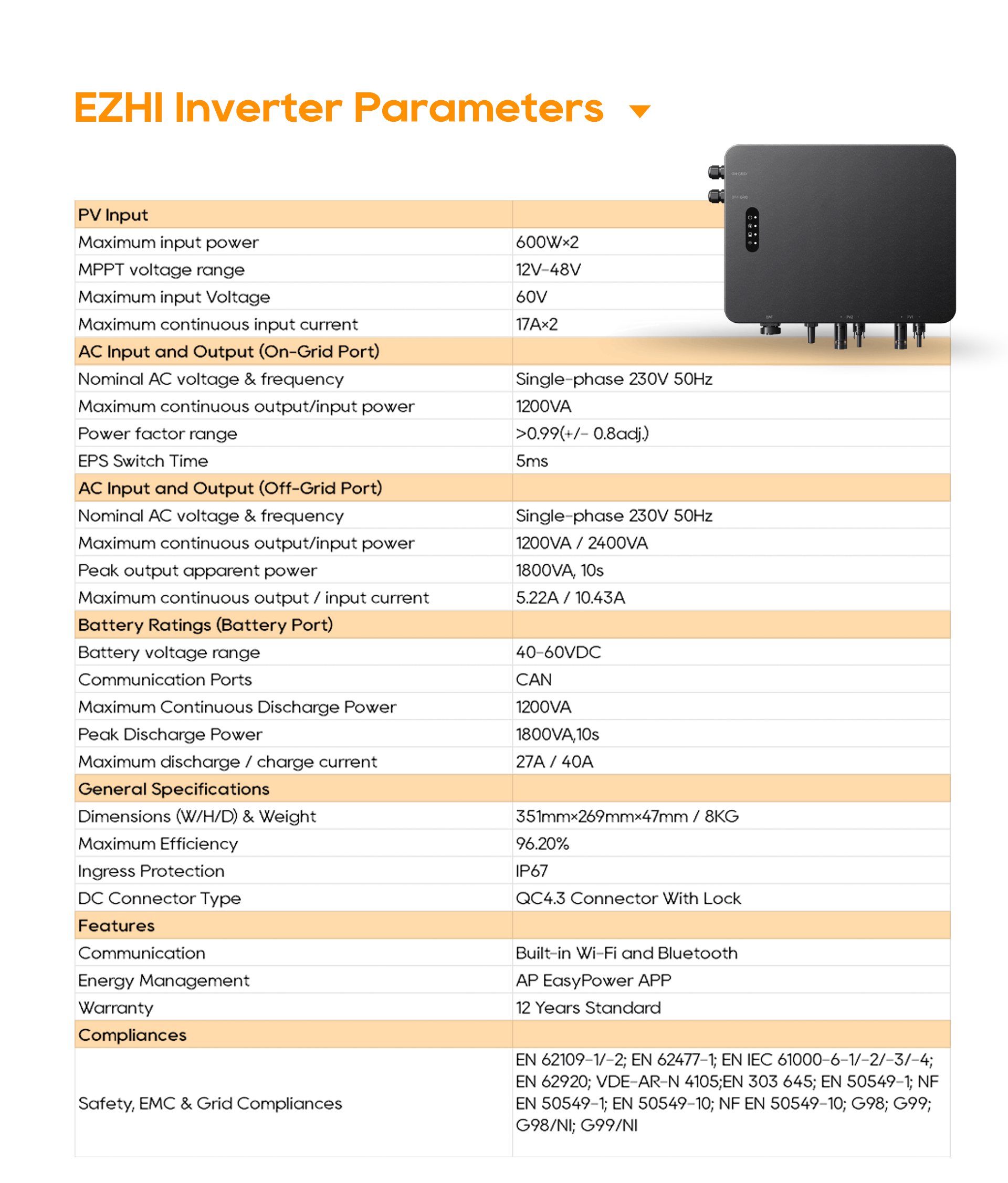

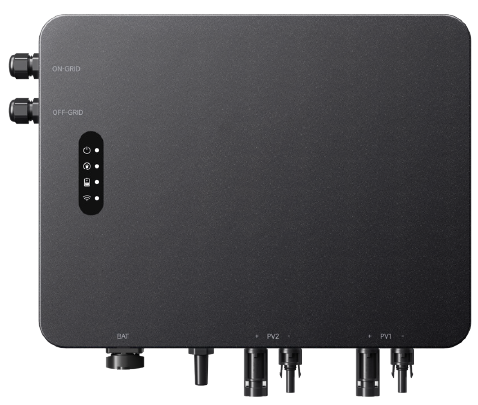

EZHI Inverter Parameters
PV Input
Maximum input power
600W×2
MPPT voltage range
12V~48V
Maximum input Voltage60V
Maximum continuous input current17A×2
AC Input and Output (On-Grid Port)
Nominal AC voltage & frequencySingle-phase 230V 50Hz
Maximum continuous output/input power1200VA
Power factor range

0.99(+/- 0.8adj)

EPS Switch TimeSms
AC Input and Output (Off-Grid Port)
Nominal AC voltage & frequencySingle-phase 230V 50Hz
Maximum continuous output/input power1200VA / 2400VA
Peak output apparent power1800VA, 10s
Maximum continuous output / input current5.22A / 10.43A
Battery Rating (Battery Port)
Battery voltage range40~60VDC
Communication PortsCAN
Maximum Continuous Discharge Power1200VA
Peak Discharge Power1800VA,10s
Maximum discharge / charge current27A/40A
General Specifications
Dimensions (W/H/D) & Weight351mm×269mm×47mm / 8KG
Maximum Efficiency96.20%
Ingress ProtectionIP67
DC Connector TypeQC4.3 Connector With Lock
Features
CommunicationBuilt-in Wi-Fi and Bluetooth
Energy ManagementAP EasyPower APP
Warranty12 Years Standard
Compliance
Safety, EMC & Grid CompliancesEN 62109-1/-2; EN 62477-1; EN IEC 61000-6-1/-2/-3/-4; EN 62920; VDE–AR-N 4105;EN 303 645; EN 50549-1; NF EN 50549-1; EN 50549-10; NF EN 50549-10; G98; G99; G98/NI; G99/NI

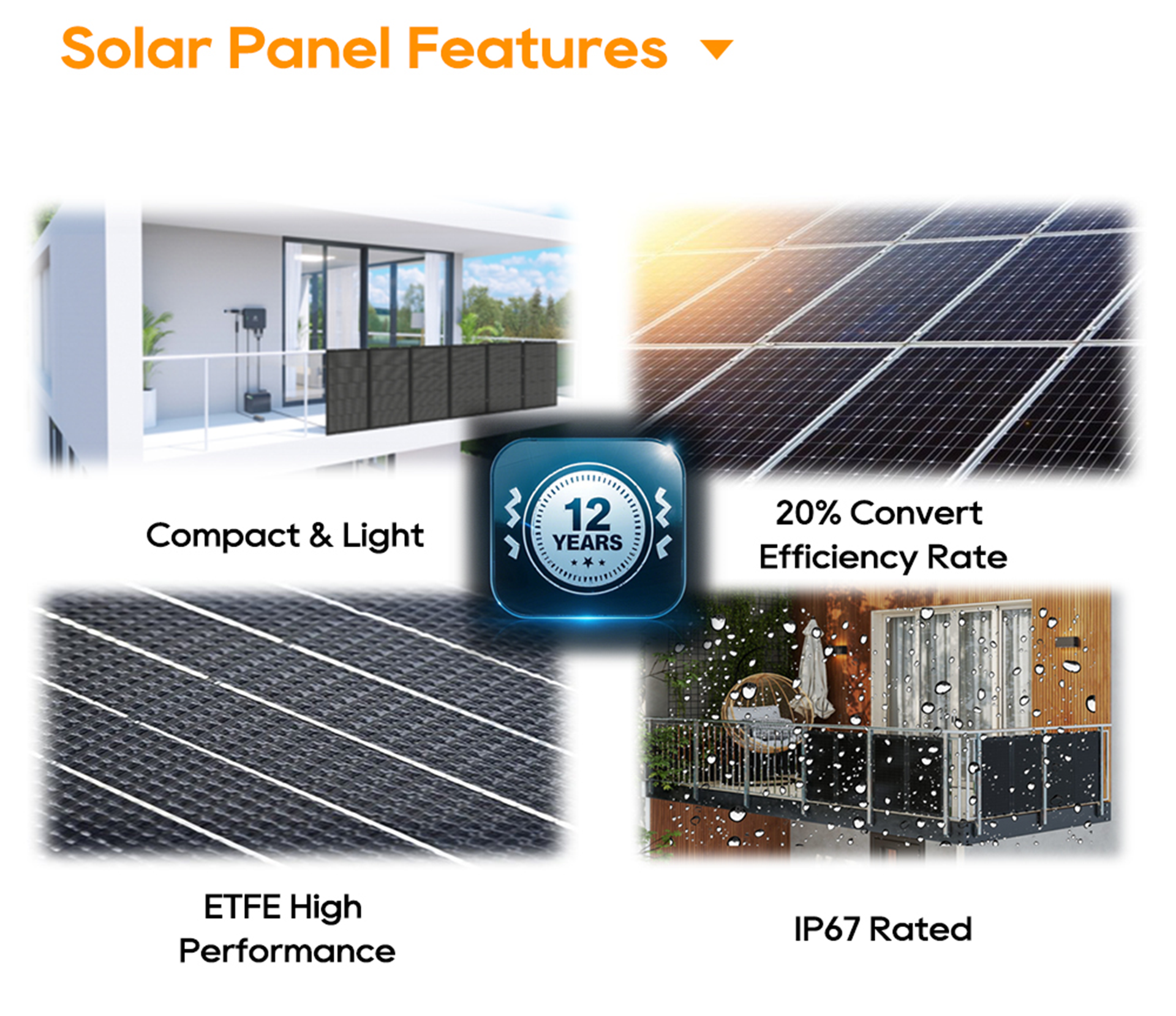

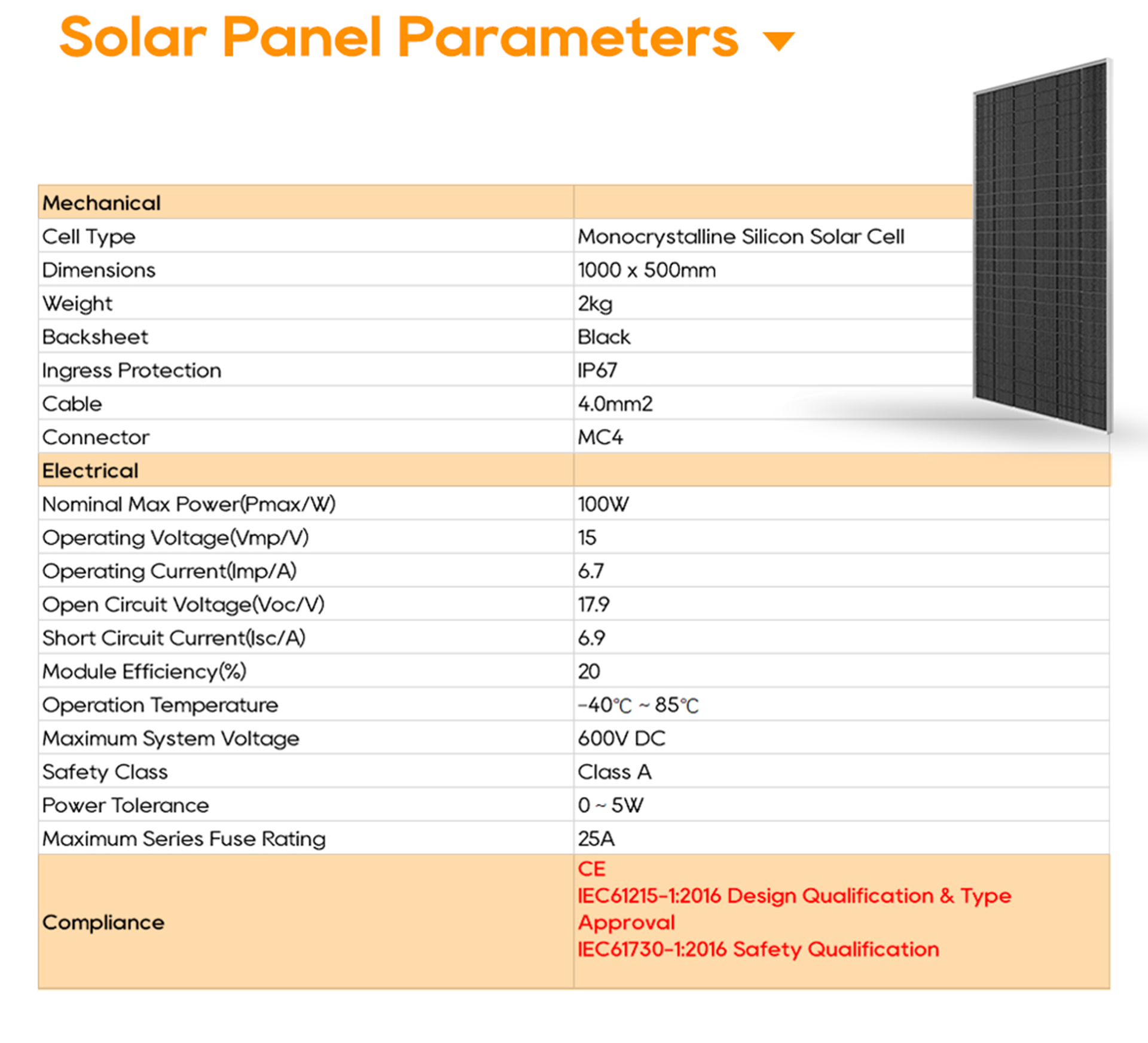

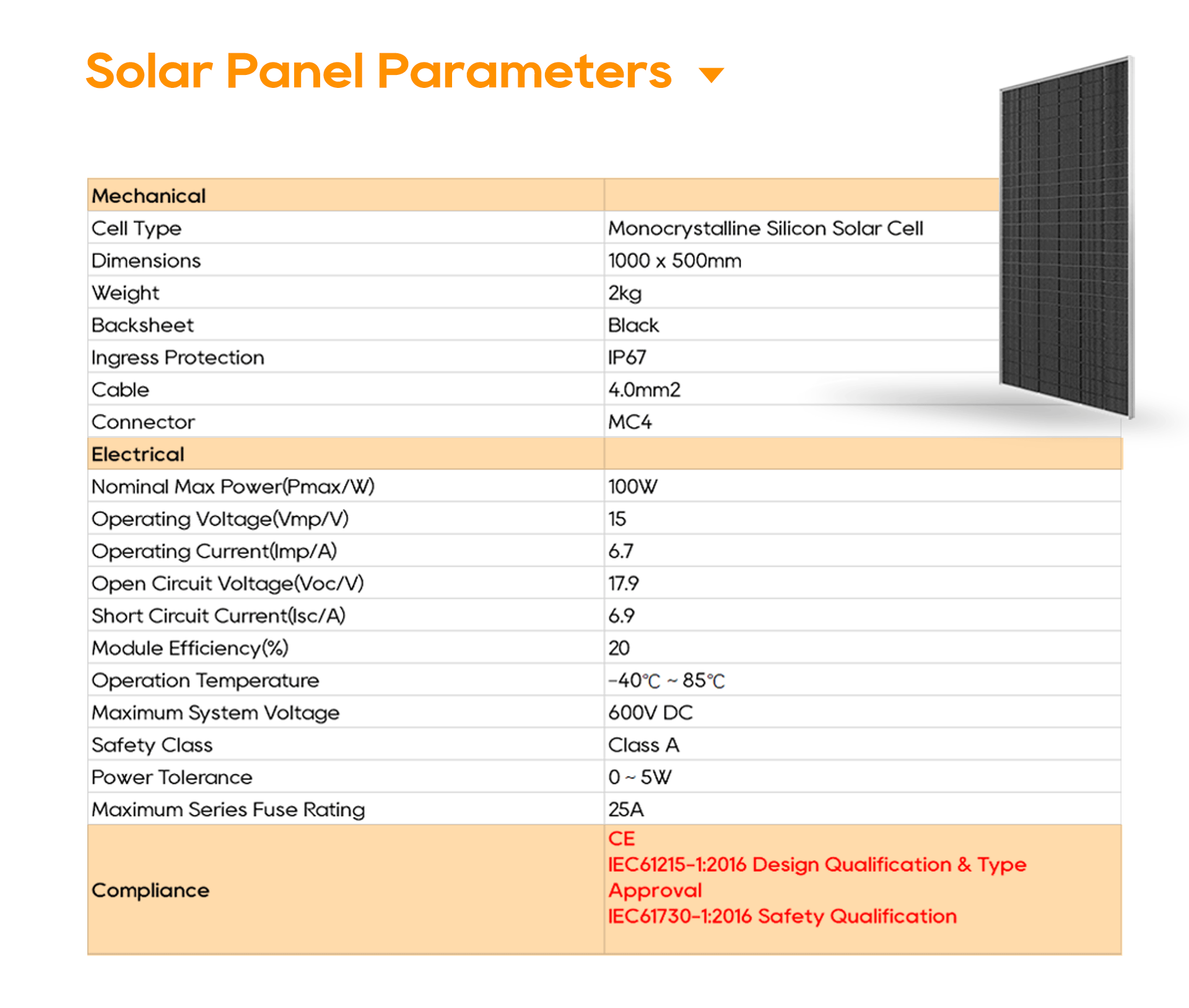

Solar Panel Parameters
Mechanical
Cell Type
Monocrystalline Silicon Solar Cell
Dimensions1000 x 500mm
Weight2kg
BacksheetBlack
Ingress ProtectionIP67
Cable4.0mm²
ConnectorMC4
Electrical
Nominal Max Power (Pmax/W)100W
Operating Voltage (Vmp/V)15
Operating Current (Imp/A)

6.7

Open Circuit Voltage (Voc/V)17.9
Short Circuit Current (Isc/A)6.9
Module Efficiency (%)20
Operation Temperature-40°C ~ 85°C
Maximum System Voltage

600V DC

Safety ClassClass A
Power Tolerance0 ~ 5W
Maximum Series Fuse Rating25A
Compliance

CE

IEC 61215-1:2016 (Design Qualification & Type Approval)

IEC 61730-1:2016 (Safety Qualification)
