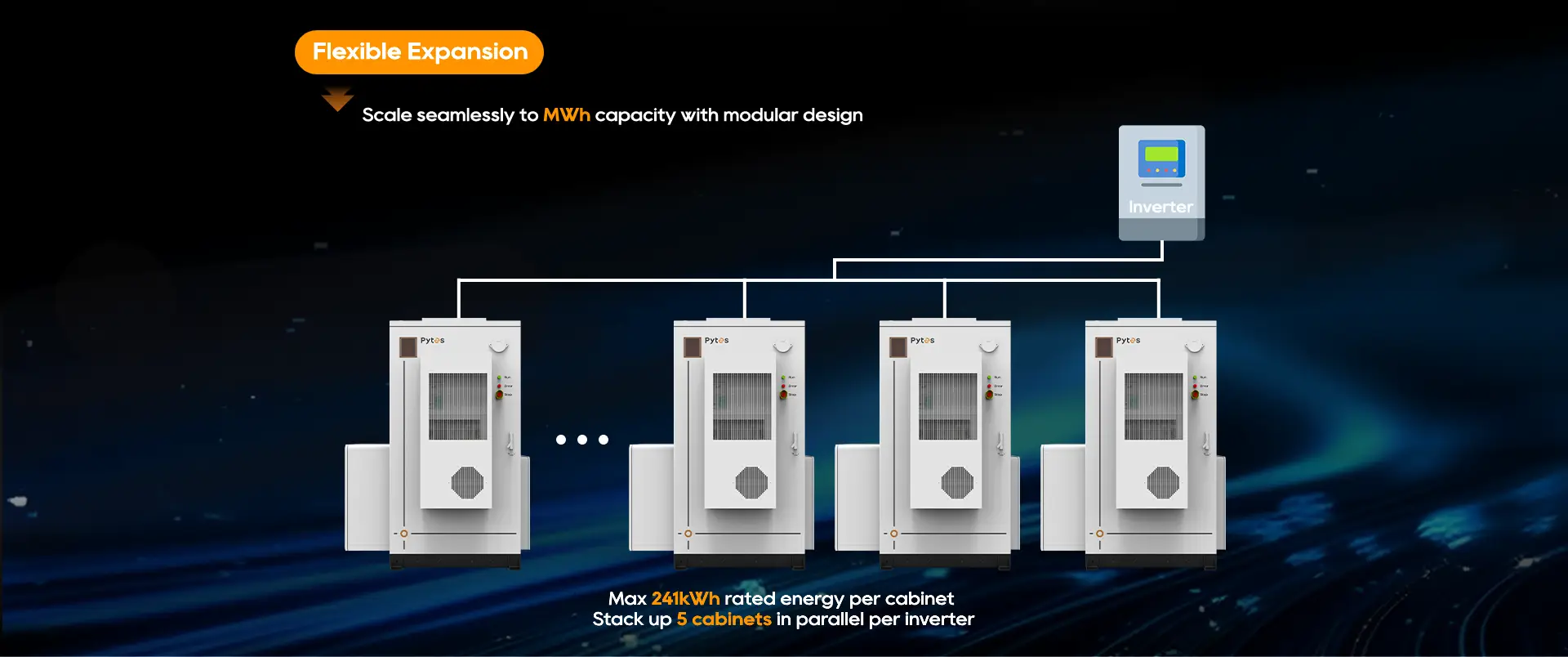

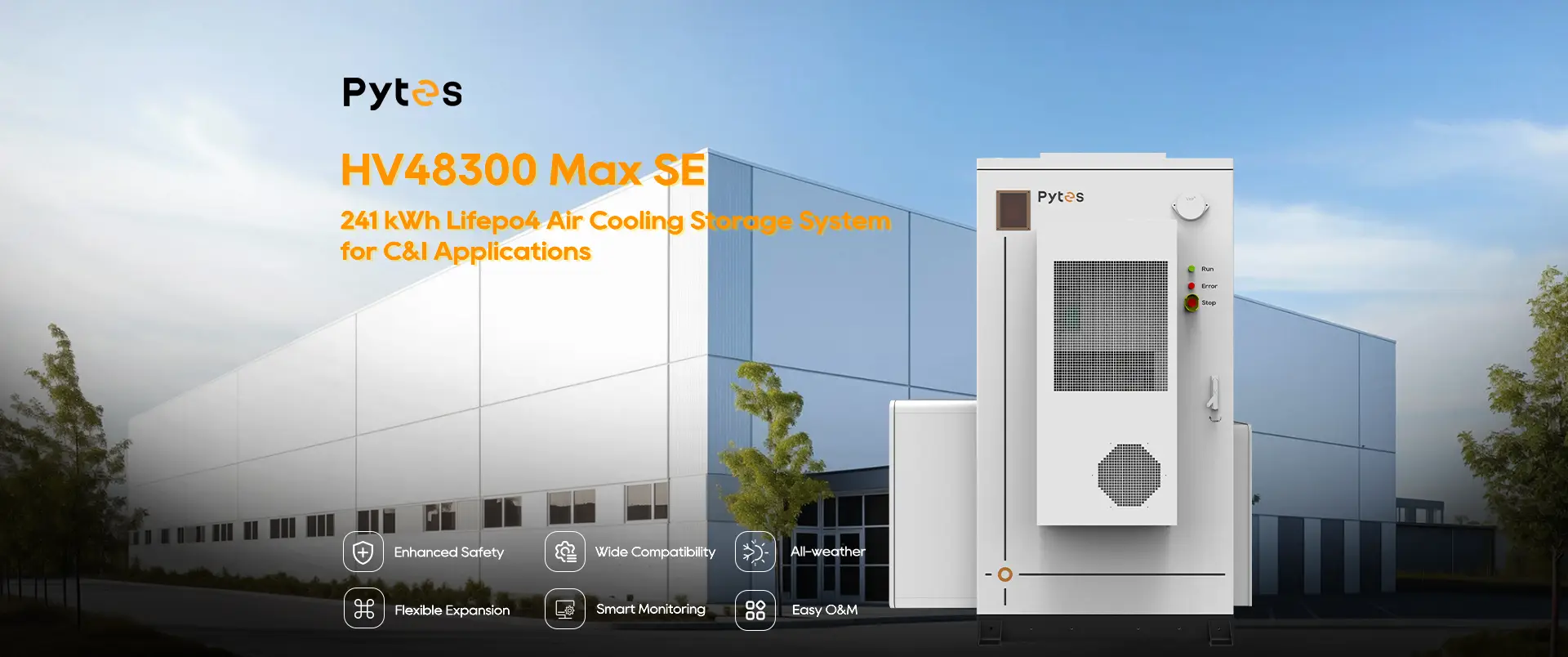

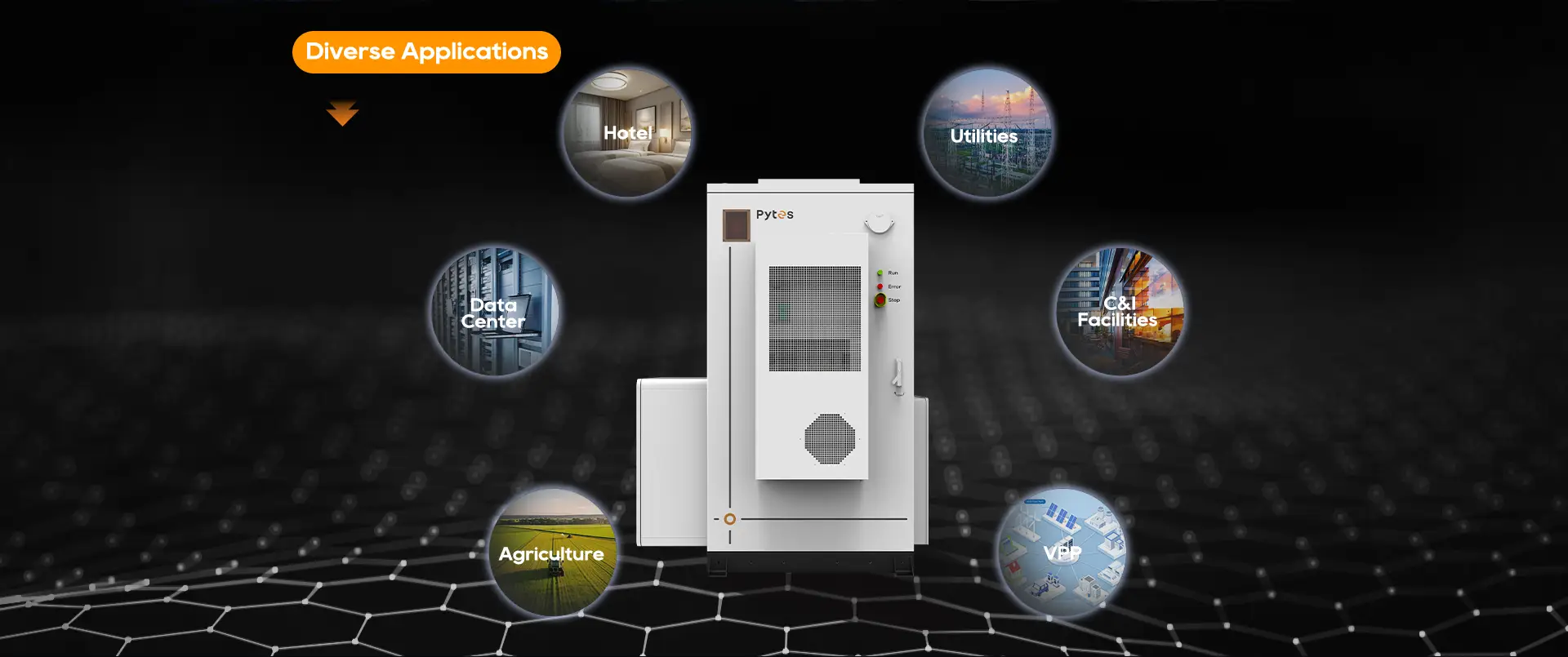

The Pytes HV48300 Max SE is a high-voltage commercial and industrial energy storage solution. Equipped with Tier 1 LFP cells and multi-level BMS protection, it offers all-weather adaptability (IP55), smart remote monitoring, flexible configurations, and scalable energy up to 241kWh per cabinet. Multiple cabinets can be stacked in parallel to provide a safe, reliable, and efficient storage solution for businesses.

Battery Module
Battery ChemistryLithium Iron Phosphate (LFP)
Battery Module Energy16.076kWh
Battery Module Nominal Voltage51.2V
Battery Module Operating Voltage47.5V~56.8V
Battery Module Nominal Capacity314Ah
Weight (lb / kg)262 ± 11 / 119 ± 5
System

Battery Module[1]

(1P7S)×21P8S1P10S1P11S1P12S1P13S1P14S1P15S
Rated Energy112.53kWh×2128.60kWh160.76kWh176.84kWh192.92kWh208.99kWh225.07kWh241.15kWh
Rated Power56.26kW×264.30kW80.38kW88.42kW96.46kW104.49kW112.53kW120.57kW

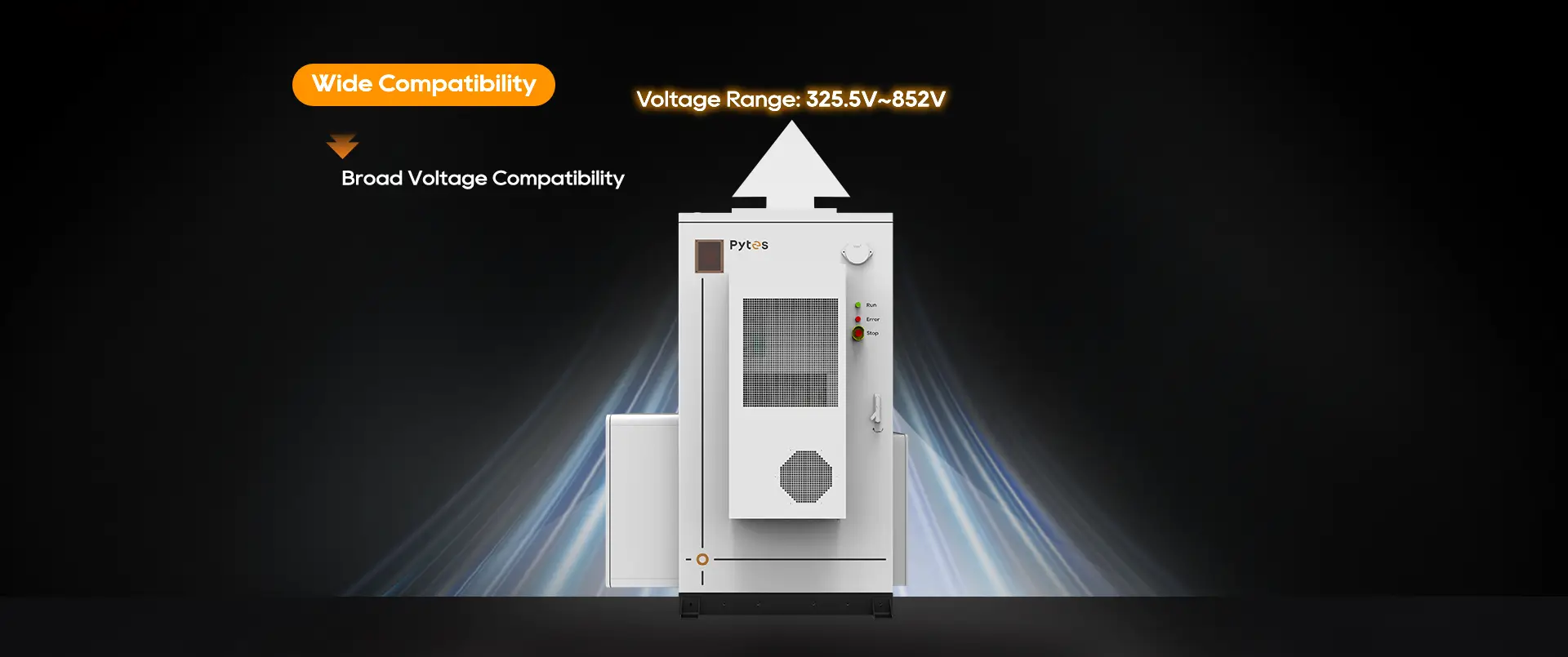

Operating Voltage325.5V~397.6V372V ~ 454.4V465V ~ 568V511.5V ~ 624.8V558V ~ 681.6V604.5V ~ 738.4V651V ~ 795.2V697.5V~ 852V
Rated Charge/Discharge Current157A157A157A157A x 2157A x 2157A x 2157A x 2157A x 2
Peak Charge/Discharge Current205A205A205A205A x 2205A x 2205A x 2205A x 2205A x 2
General
Dimensions (W x D x H)68 x 57 x 92in (1750 x 1450 x 2350mm)
Weight (lb / kg)5471 / 24823716 / 16864241 / 19244504 / 20434766 / 21625028 / 22815291 / 24005553 / 2519
Ingress Protection RatingIP55

Cycle Life[2]

6000 cycles

Warranty[3]

Battery system: basic warranty 3years/ advantage warrenty 5 years[4]

Battery module: basic warranty 5years/ advantage warrenty 10 years

Environmental

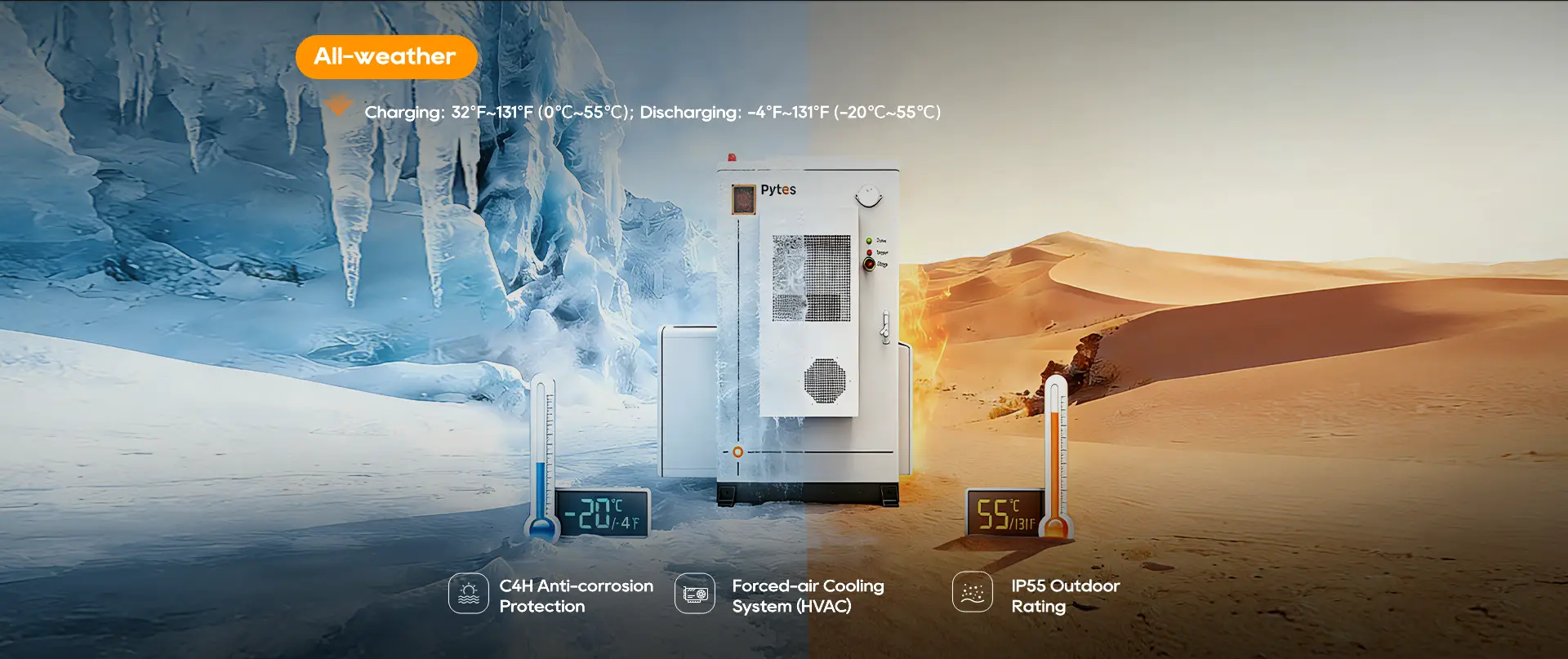

Operating Temperature

Charging: 32°F ~ 131°F (0°C~55°C)

Discharging: -4°F ~ 131°F (-20°C~55°C)

Operating Altitude≤ 6561.68 ft (2000m)
Relative Humidity5% ~ 95%, non-condensing

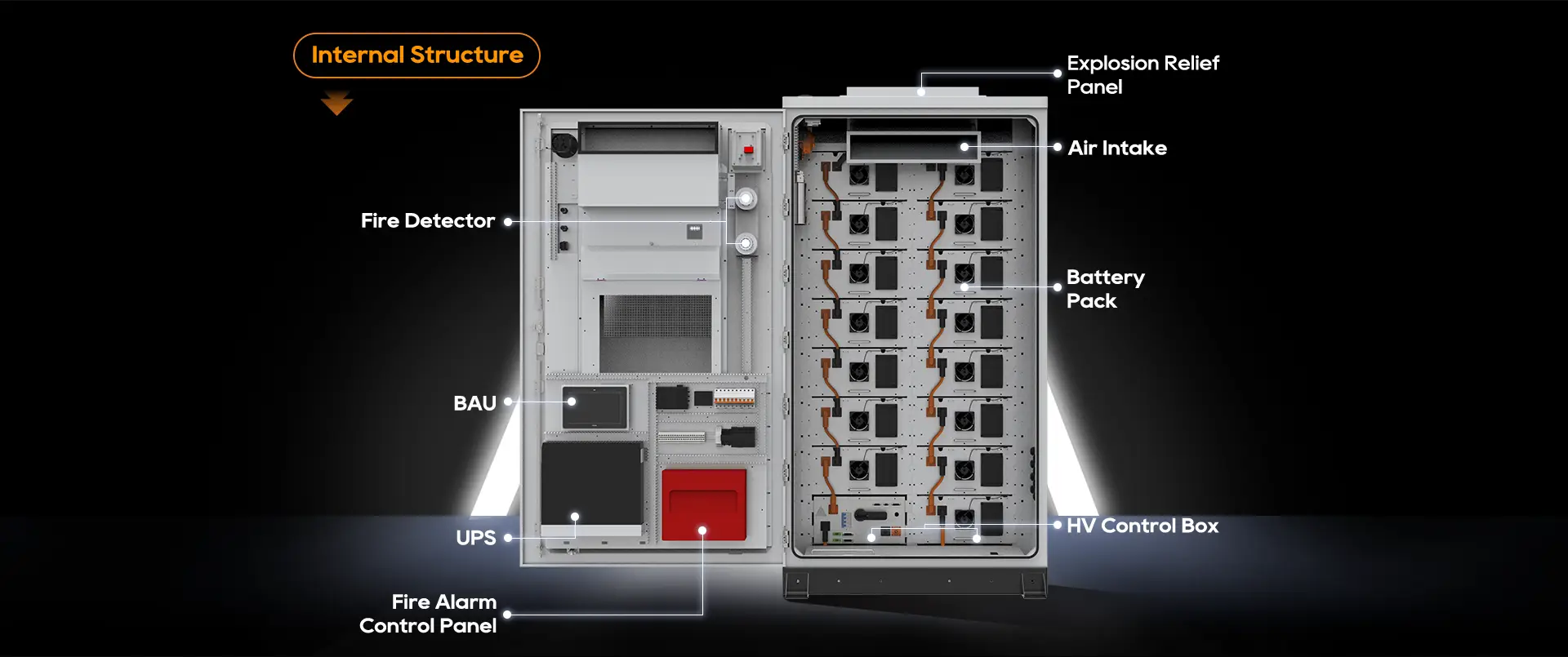

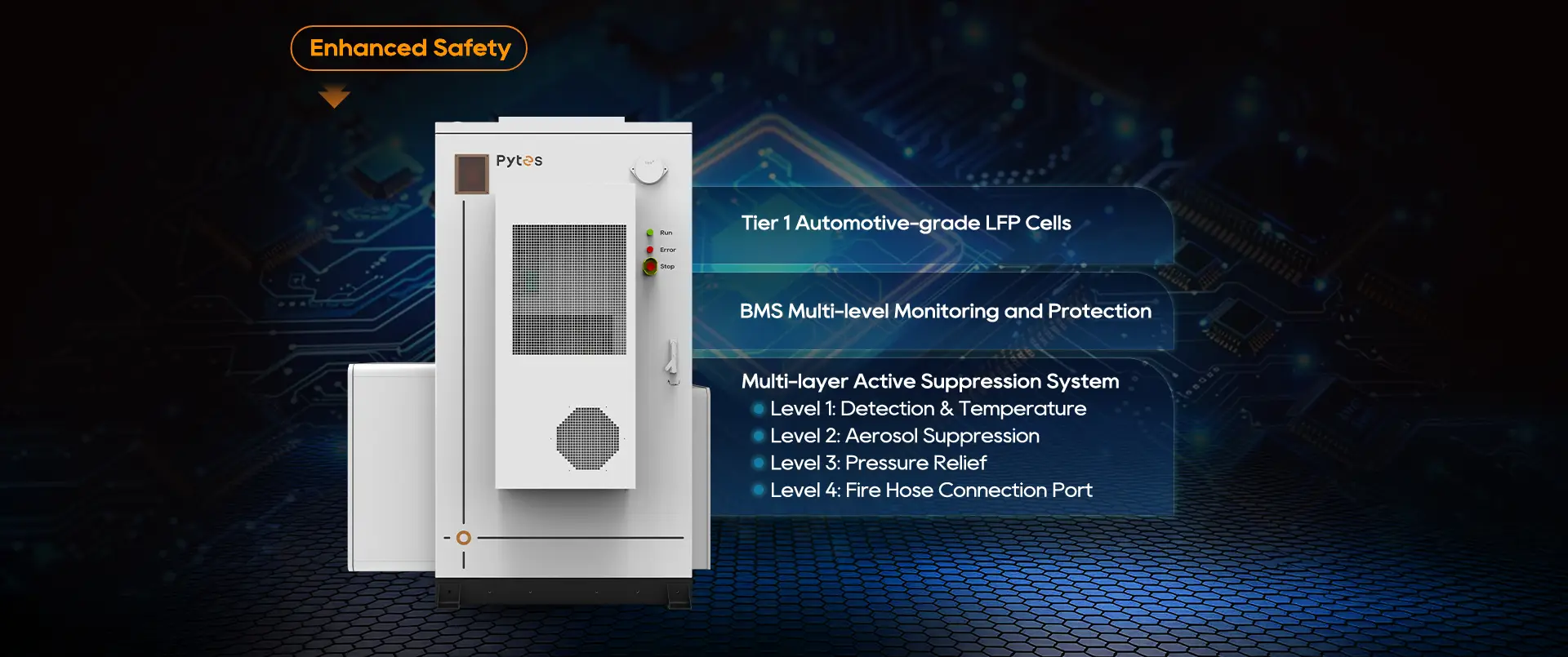

Fire Suppression System
Level 1: Detection & VentilationHazardous gas detection activates ventilation system
Level 2: Aerosol SuppressionHeat and smoke detection activates aerosol fire suppression system
Level 3: Pressure ReliefThe explosion relief valve opens automatically if internal pressure exceeds safe limits
Level 4: Fire Hose Connection PortEquipped with a fire hose connection port for firefighter hose attachment
HVAC
Rated Cooling Capacity5000W (L35)
Rated Heating Capacity2500W
Ingress Protection RatingIP55
Compliance
CertificationsUL 9540A , UL 1973 , UN 38.3 , IEC62619 , CE EMC , IEC63056 , IEC62477 , IEC62040

[1]: Flexible Configuration:

1P (1 x BCU): Number of connectable BMUs ranges from 1 to 15. Voltage Range: 44.8 V × (1 ~ 15) ~ 57.6 V × (1 ~ 15).

2P (2 x BCU in parallel): Number of connectable BMUs ranges from 1 to 7 for each BCU. Voltage Range: 44.8 V × (1 ~ 7)~57.6 V × (1 ~ 7).

[2]: Operating conditions: 77°F (25°C), 0.5 P @ 90% DoD, ret @70% (EOL).

[3]: Basic warranty 5 years/ advantage warrenty 10 years; or 6000 cycles (Condition: 0.5P/0.5P, 90% DOD[ Recommended SOC Range=10-100%.], 20~35°C, ret 70%. )

[4]: Optional 2 year warranty extension available for purchase.
