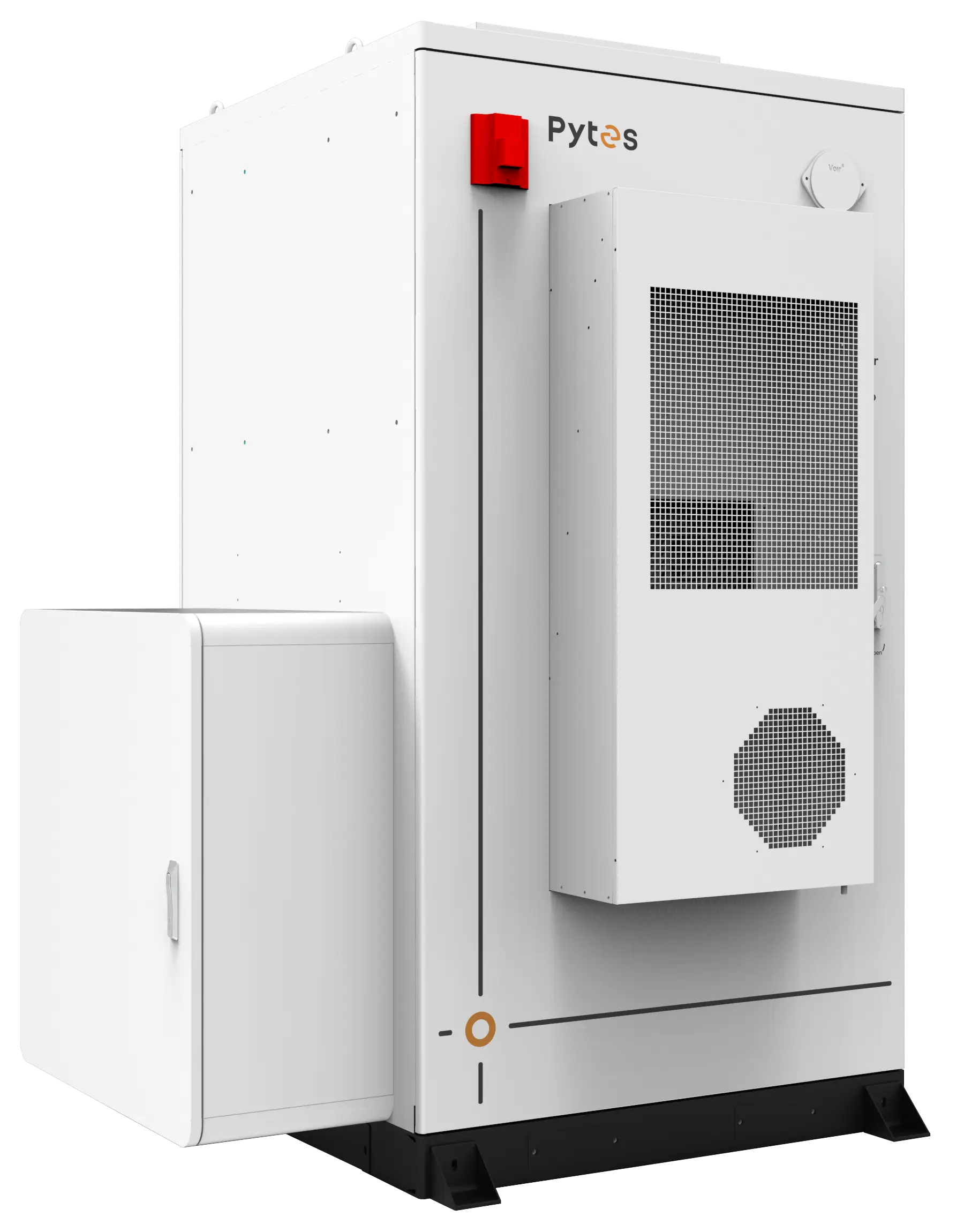

HV48300 MAX SE: Advanced BMS Architecture by Pytes

The HV48300 MAX SE from Pytes features an advanced multi-level BMS architecture designed for commercial and industrial energy storage applications.

As a high-voltage battery system, the HV48300 MAX SE uses intelligent battery management technology to monitor operating conditions, coordinate battery performance, and support stable system operation.

Multi-Level BMS Architecture for HV48300 MAX SE

The HV48300 MAX SE adopts a multi-level battery management approach to achieve comprehensive monitoring and control throughout the energy storage system.

The BMS architecture includes:

• Individual cell voltage monitoring
• Module-level balancing
• System-level coordination control
• Real-time fault diagnosis

Through these management functions, the system can maintain coordinated operation from battery components to the complete energy storage system.

Individual Cell Voltage Monitoring

The HV48300 MAX SE BMS monitors battery cell conditions to provide accurate operating status information.

Cell-level monitoring helps the system:

• Track battery operating conditions
• Detect abnormal voltage changes
• Support stable charging and discharging processes

This provides a foundation for reliable battery management during daily operation.

Module-Level Balancing Management

The HV48300 MAX SE integrates balancing management within its battery control system to help maintain consistent operation between battery modules.

This supports:

• Balanced battery performance
• Coordinated module operation

• Stable system output during operation

System-Level Coordination Control

Beyond battery component monitoring, the HV48300 MAX SE provides system-level coordination control to manage overall battery operation.

This enables the battery system to respond effectively to different operating requirements while maintaining stable performance.

Real-Time Fault Diagnosis

The HV48300 MAX SE incorporates real-time system monitoring and fault diagnosis capabilities.

By continuously monitoring operating conditions, the BMS can identify abnormal situations and support timely protection responses to enhance system reliability.

The HV48300 MAX SE by Pytes is equipped with an advanced multi-level BMS architecture integrating individual cell voltage monitoring, module-level balancing, system-level coordination control, and real-time fault diagnosis.

Through intelligent battery management, the HV48300 MAX SE provides stable monitoring and coordinated control for high-voltage commercial and industrial energy storage applications.
