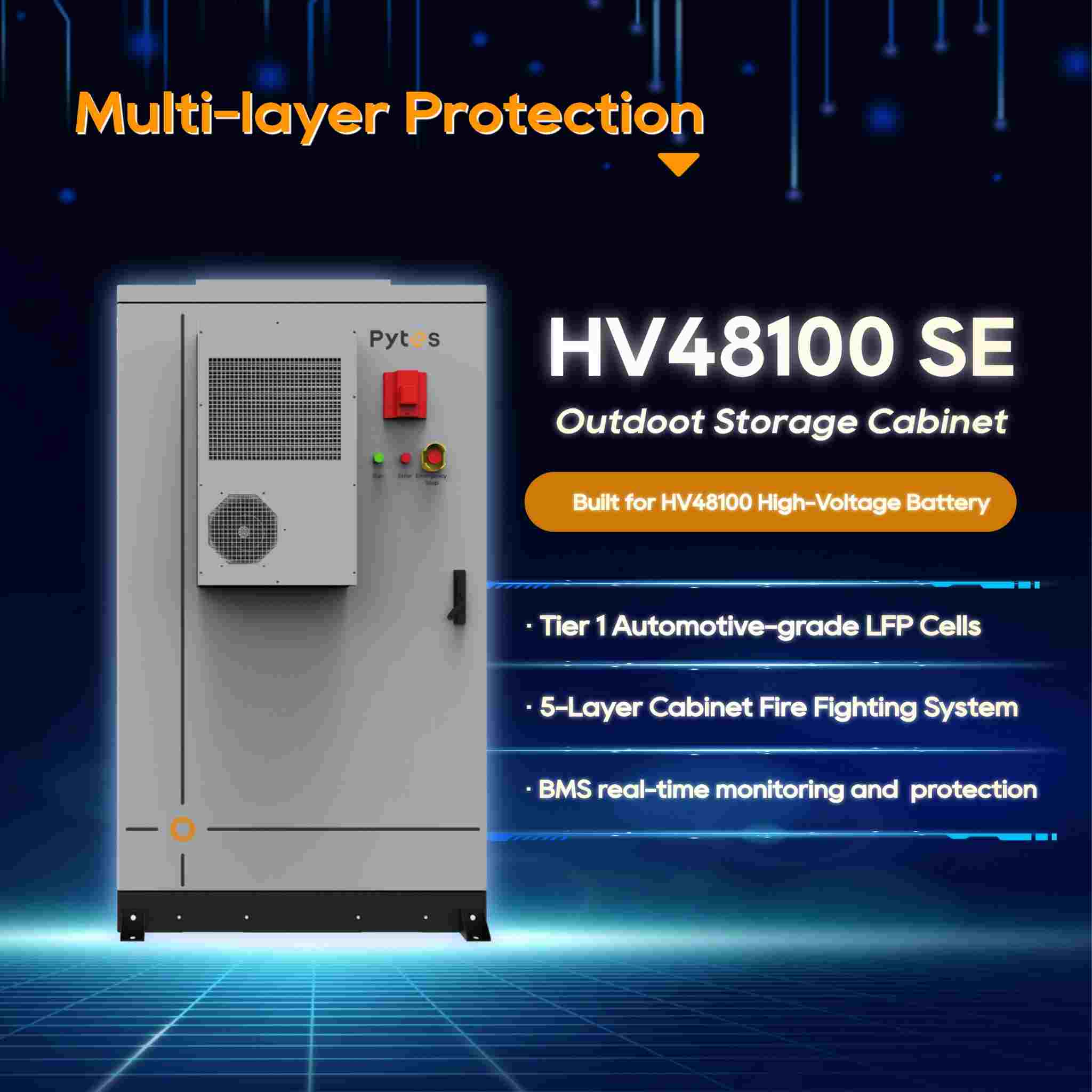

The Pytes HV48100 SE is an outdoor high-voltage energy storage cabinet designed for commercial and industrial energy applications. It is built to operate in complex environmental conditions while maintaining stable performance, safety, and system reliability.
A key feature of the HV48100 SE is its integrated monitoring and control system, which continuously supervises battery operating status and ensures safe operation under different working conditions.
The HV48100 SE integrates a comprehensive monitoring system equipped with heat, smoke, and gas detection sensors. These sensors continuously monitor hazardous gas concentration, temperature rise, and smoke presence in real time.
The system is designed to support:
• Real-time hazardous gas detection
• Heat and smoke monitoring
• Automatic activation of ventilation and fire suppression systems
• Explosion pressure monitoring
• Integration with external fire-fighting equipment
This enables the battery system to operate safely in outdoor and distributed energy storage applications.
At the core of the HV48100 SE is a four-level fire protection system that manages fire and gas risks in a structured and progressive manner.
Level 1: Detection & Ventilation
When hazardous gas is detected, the exhaust and ventilation system activates automatically to remove potentially dangerous gases.
Level 2: Aerosol Suppression
Upon detection of heat or smoke, the aerosol fire suppression system is triggered to control and suppress the fire at an early stage.
Level 3: Pressure Relief
If internal pressure exceeds safe limits, the explosion relief panel (pressure relief valve) opens automatically to release pressure and prevent structural damage.
Level 4: Fire Hose Connection Port
A dedicated external firefighting interface is provided, allowing firefighters to connect a water hose and apply direct suppression when necessary.
This integrated approach ensures fast and appropriate response to different types of abnormal conditions.
Since the HV48100 SE is designed for outdoor deployment, thermal management is critical for stable system operation.
The system continuously monitors internal temperature and utilizes:
• Built-in module-level fans for localized cooling
• Forced-air HVAC cooling system for high-temperature environments
• Integrated heating system for low-temperature operation
These features ensure stable performance across a wide ambient temperature range.
The HV48100 SE is engineered with robust protection mechanisms to ensure reliable operation in harsh outdoor environments.
Key protection features include:
• C4-M corrosion resistance for high-humidity and industrial environments
• IP55 protection rating against dust and water jets, supporting indoor and outdoor installation
When abnormal temperature or pressure conditions are detected, the system can automatically trigger ventilation, pressure relief, or suppression actions, improving operational safety in unattended environments.
The HV48100 SE supports intelligent cloud connectivity, enabling real-time operational data transmission to remote monitoring platforms.
Through the PYTES Battery cloud monitoring system, users can:
• View real-time system operating status
• Access battery performance data
• Receive alerts for fire, gas, or thermal anomalies
• Remotely monitor energy storage system performance
This supports centralized management in multi-site or distributed energy storage projects.

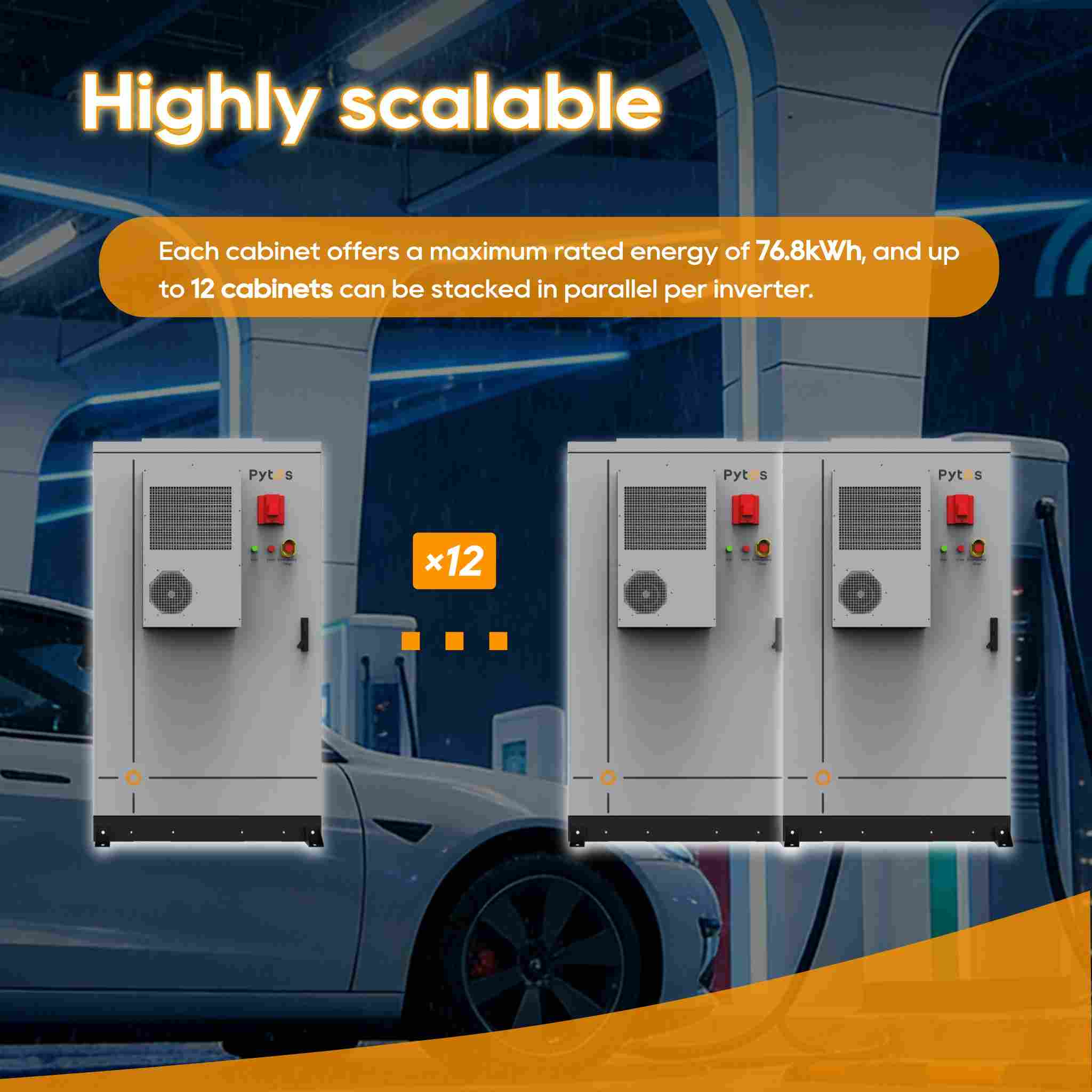

The HV48100 SE is designed for scalable deployment and broad system compatibility.
• Modular architecture supports capacity expansion to MWh-level systems, suitable for commercial and industrial applications
• Multiple battery string configurations support different operating voltages and inverter compatibility
• Standardized cabinet structure simplifies installation across different site conditions
Outdoor energy storage systems operate in more complex environments compared to indoor systems, including temperature fluctuations, humidity, dust exposure, corrosion risk, and long-term unattended operation.
A reliable combination of detection, fire suppression, thermal management, and structural protection is essential for:
• Ensuring stable battery operation
• Maintaining system safety performance
• Early detection of abnormal conditions (gas, heat, smoke, overpressure)
• Reducing maintenance requirements
• Improving long-term system reliability
The HV48100 SE is designed to meet these requirements by integrating gas detection, ventilation control, aerosol suppression, pressure relief, external firefighting interface, active thermal management, corrosion resistance, and cloud-based monitoring into a unified system architecture.
