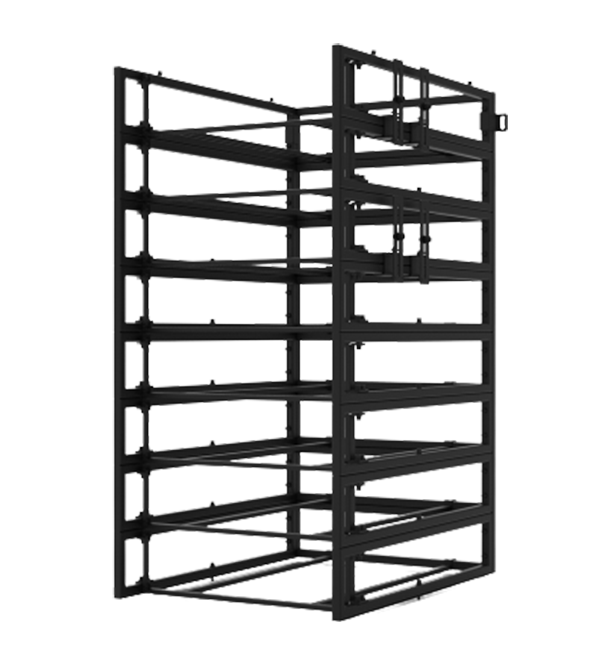

Developed for limited space.
Install your system as easy as stack one on the other. R Bracket is the solution for efficiency while saves your budget.

ModelR Bracket
Unit Dimension (L*W*H)20.9" x 28.5" x 5.3"
Unit Weight17 lbs
Installation1.Install the parts by following the guide of the installation manual;
2.Screws are needed to assemble single battery and rack;
3.Multi-layer battery rack: after assembling all the single batteries
and racks, stack them up vertically. Connection board is needed to
install in between each two layers of battery racks;
4.Secure multi-layer battery rack with accessories to the wall;
5.Connect multi-layer battery rack to the distribution box.


  • R bracket Installation
