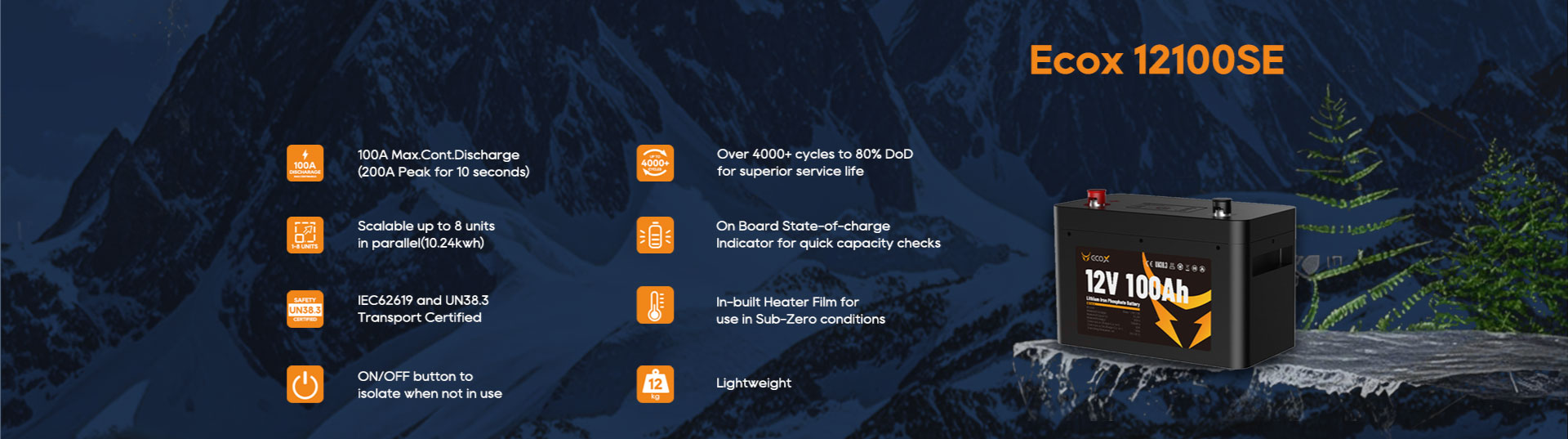

Ecox 12100 SE
Ecox 12100 SE

Ecox 12100 SE

An innovative battery solution, outperforming lead-acid batteries of the same capacity.
It's lightweight for easy portability and installation, boasts higher charge-discharge
efficiency and configures operation indicator, warning light and SOC indicator to ensure
real-time monitoring. It has high cycle life, supports the parallel expansion of 8 batteries, and is equipped with a heating function for low-temperature operation.This battery is ideal for deep-cycle off-grid use in RVs, boats, trucks, and cabins and can replace deep-cycle lead-acid batteries.

Battery ModelEcox 12100 SE
Electrical
Nominal Voltage12.8VDC
Nominal Capacity100Ah
Internal Resistance<10mΩ
Round-Trip Efficiency99%

Self-discharge Rate

≤3% per month
Scalability8P
Cycle Life>4000
Peak Discharge Current200A@10s
Maximum Continuous charge Current100A
Maximum Continuous Discharge Current100A
Recommended Continuous Charge Current≤50A
Recommended Charge Voltage14V~14.4V
Environmental
Recommend Storage Temperature5010°C~40°C
Storage Temperature-20°C~60°C
Autitude
<4000m
Relative Humidity5%~95%(no condensation)
Mechanical
Dimensions300×160×210mm
Weight

Approx 12kg

Terminal TypeM8×1.25×14mm
Terminal Torque8±1Nm
Housing Material
Metal
Ingress ProtectionIP20
Battery TypeLFP
CoolingNature Cooling
Certifications
IEC62619,UN38.3,MSDS,CE
