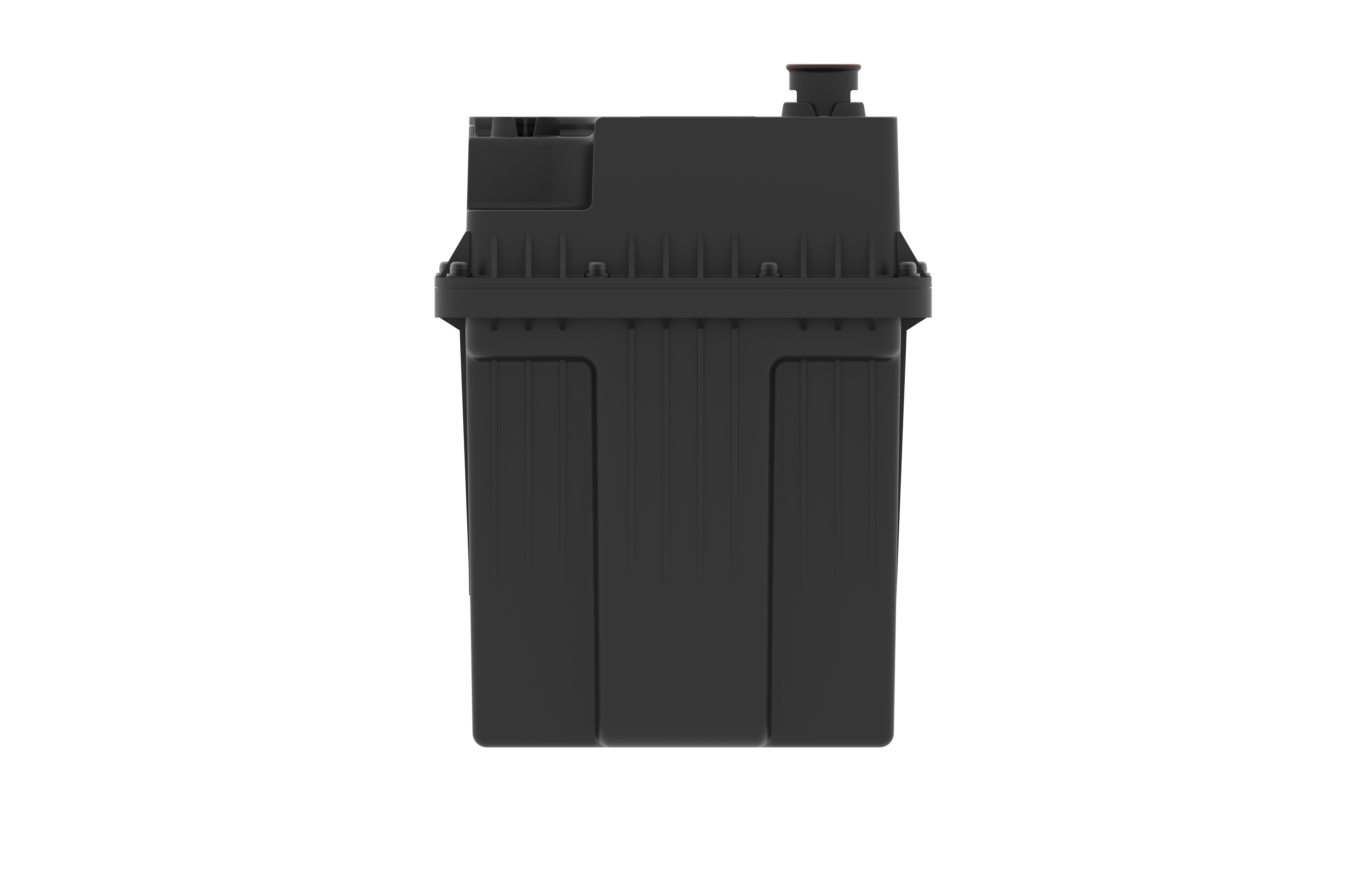

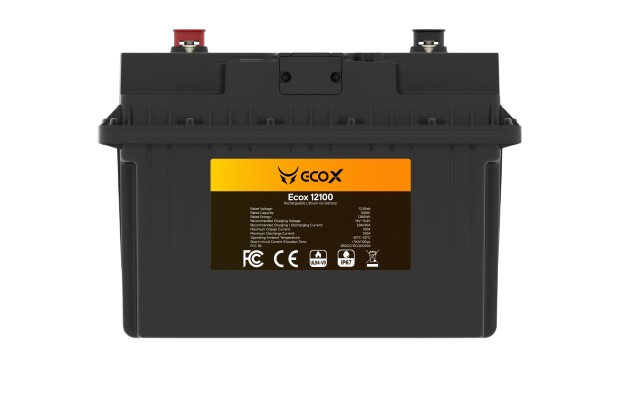

Ecox 12100
Ecox 12100
Ecox 12100
Ecox 12100
Ecox 12100
Ecox 12100
Ecox 12100
Ecox 12100

Ecox 12100

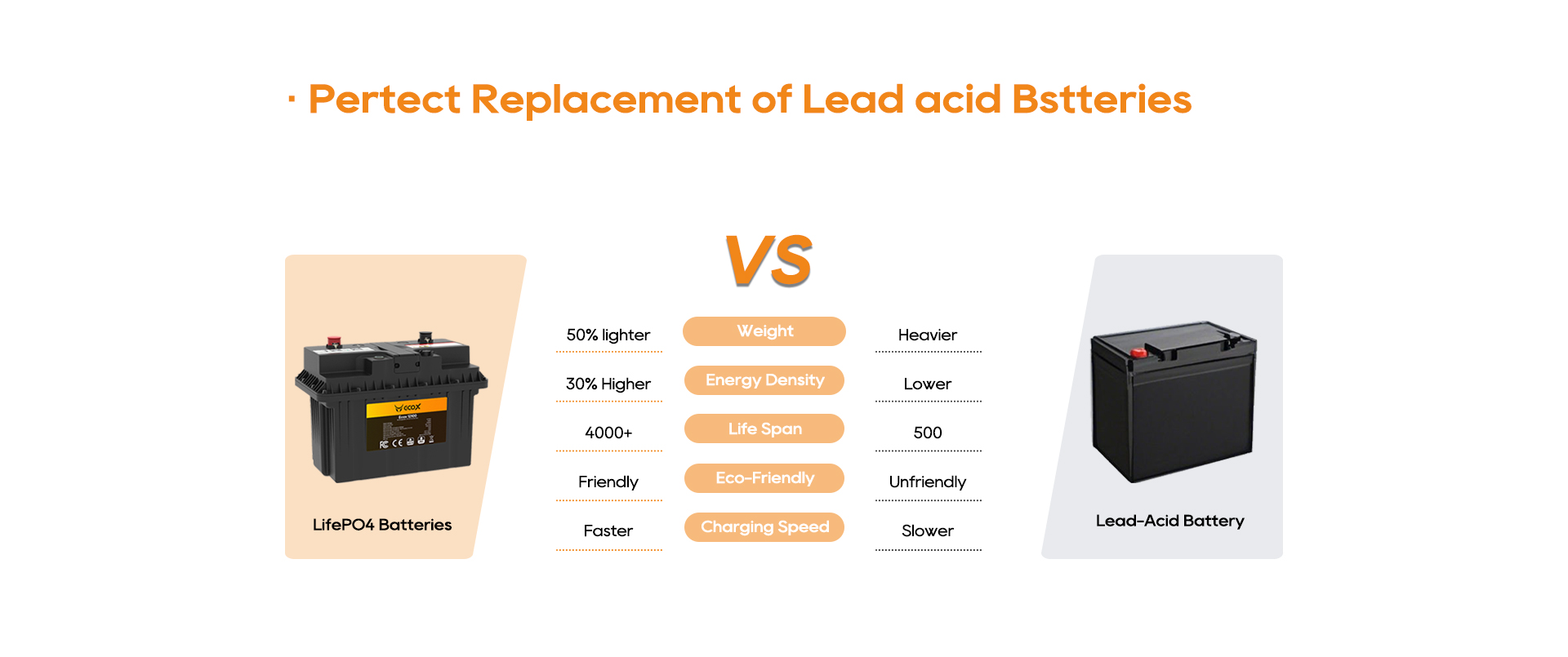

An innovative battery solution, outperforming lead-acid batteries of the same capacity.
It's lightweight for easy portability and installation, boasts higher charge-discharge
efficiency and enables real-time monitoring via mobile devices for smart management.
It has high cycle life, supports battery strings composed of 16 batteries connected in series or parallel for capacity expansion. This battery is ideal for deep-cycle off-grid use in RVs, boats, trucks, and cabins and can replace deep-cycle lead-acid batteries.


Battery ModelEcox 12100 Specs
Electrical
Nominal Voltage12.8VDC
Nominal Capacity100Ah
Internal Resistance<10mΩ
Round-Trip Efficiency99%

Self-discharge Rate

≤3% per month

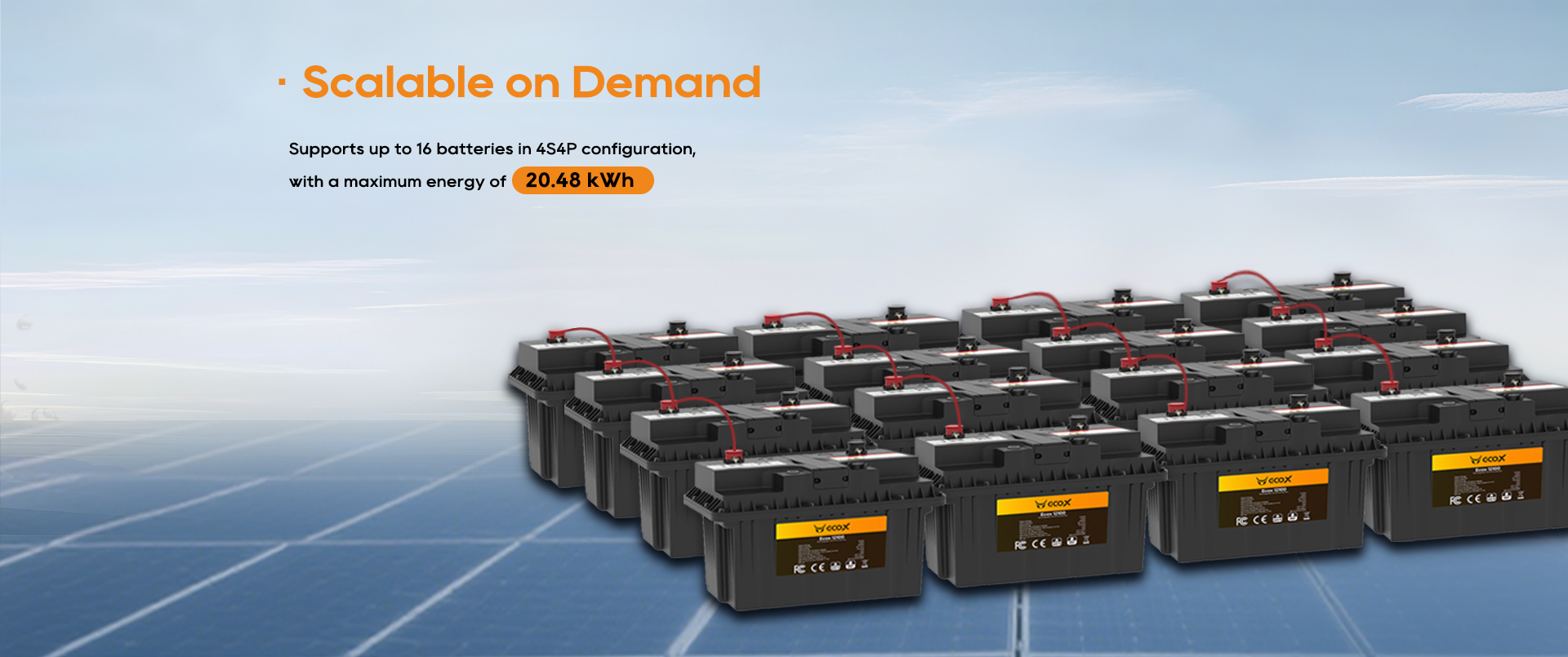

Scalability4S4P
Cycle Life>4500
Maximum Continuous Discharge Current100A
Recommended Continuous Charge Current≤50A
Recommended Charge Voltage14V~14.4V
Environmental
Recommend Storage Temperature50°F~95°F（10°C~35°C）
Discharge Temperature-40°F~140°F（-40°C~60°C）
Autitude
<4000m
Relative Humidity5%~95%(no condensation)
Mechanical
Dimensions12.8×6.83×9.37in(325×173.5×238mm)
Weight

approx 26.46lbs(12kg)

Terminal TypeM8×14
Terminal Torque9±1Nm
Housing Material
PC
Ingress ProtectionIP67
Battery TypeLFP
Certifications
 UN38.3,TELEC,IEC2619,FCC,CE
