Compact and easy installation, specially desiged for limited installation space.

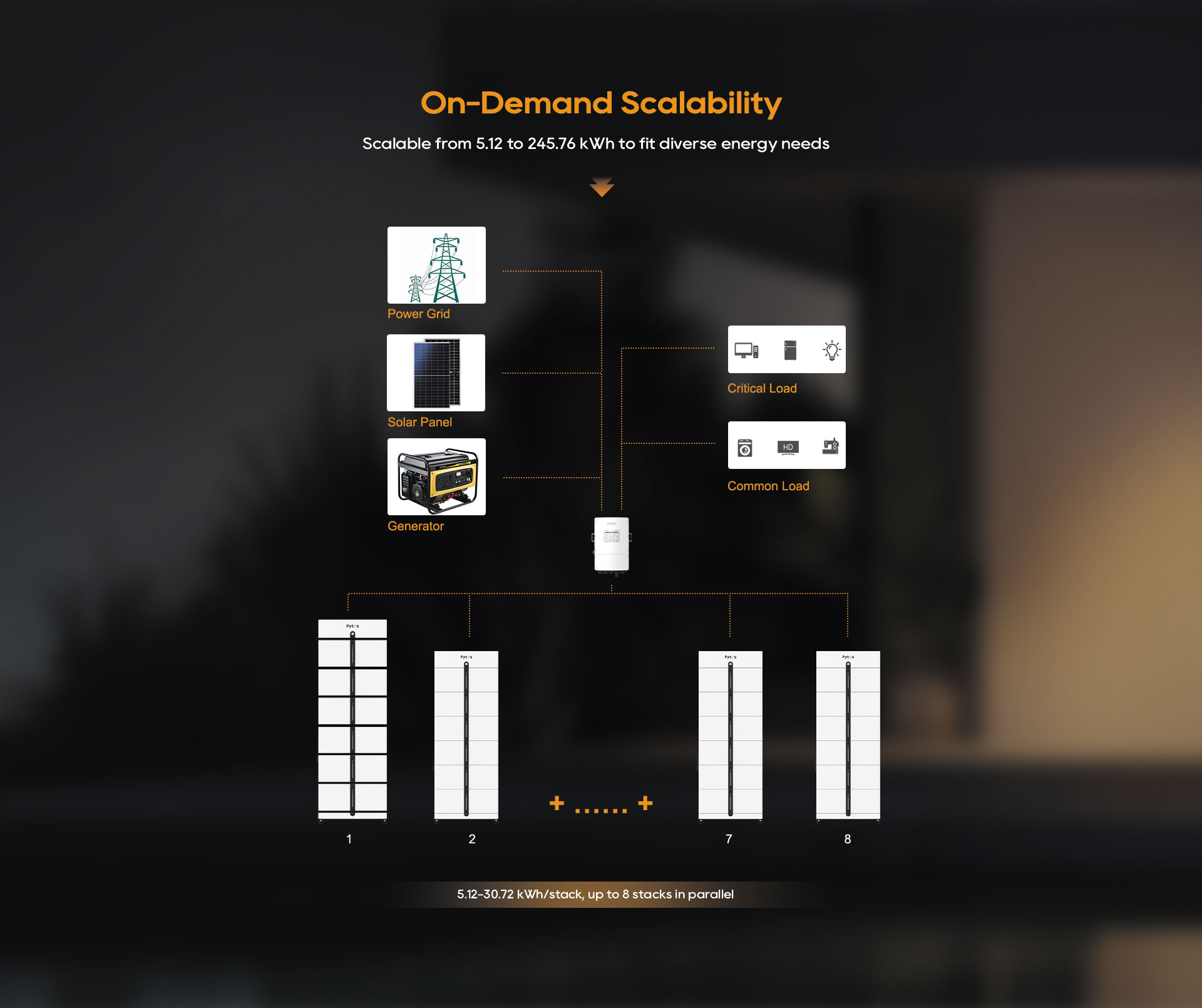

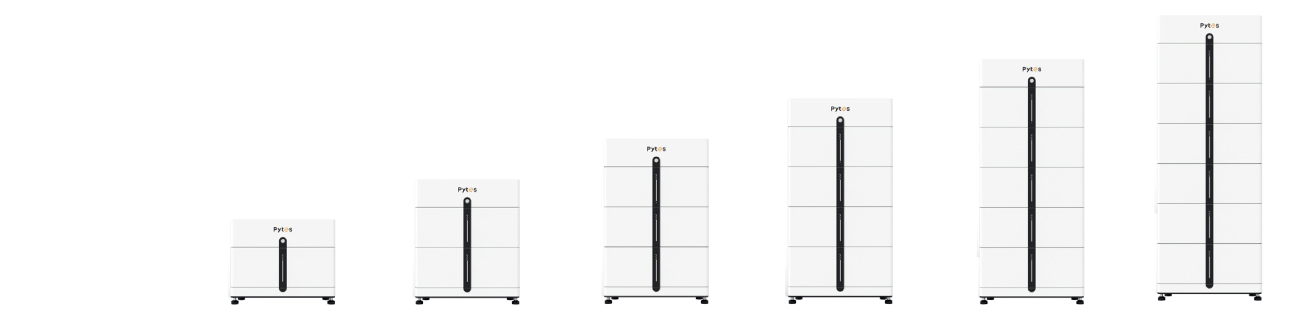

Expand the capacity of your backup power up to 30.72kWh max, as easy as stack a battery on one the other.
Battery Management Unit | |
---|---|
Cell Type | LFP |
Nominal Energy | 5.12kWh |
Nominal Voltage | 51.2V |
Voltage Range | 44.8V~57.6V |
Nominal Capacity | 100Ah |
Recommended Discharging/Charging Current | 50A |
Maximum Discharge/Charge Current | 75A |
Peak Charge/Discharge Current | 100A |
Certifications | CE, IEC62619, UL1973, UN38.3, (TBD: UL9540, UL9540A) |

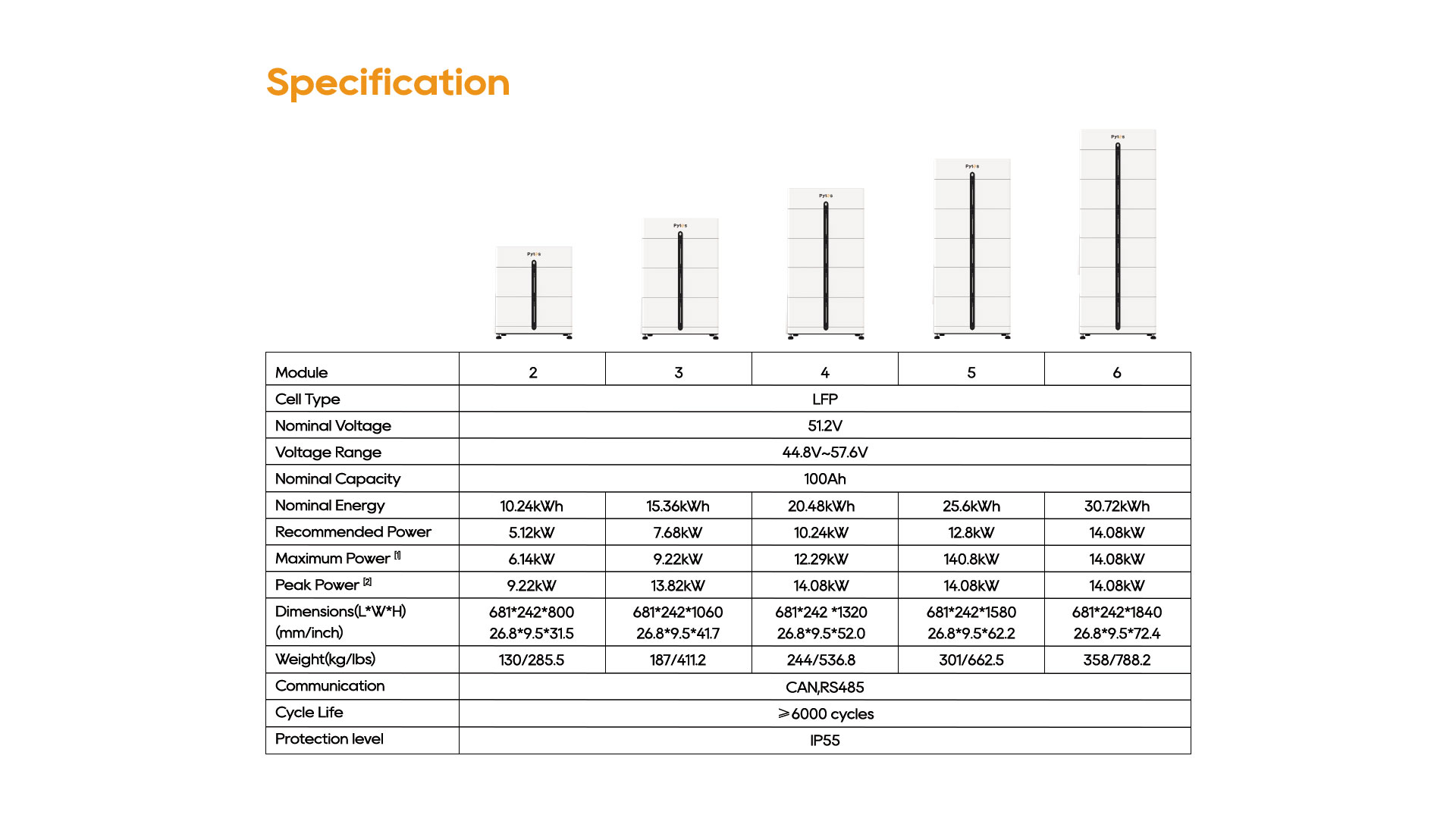

Model | 2 | 3 | 4 | 5 | 6 |
---|---|---|---|---|---|
Cell Type | LFP | ||||
Nominal Voltage | 51.2V | ||||
Voltage Range | 44.8V~57.6V | ||||
Nominal Capacity | 100Ah | ||||
Nominal Energy | 10.24kWh | 15.36 kWh | 20.48 kWh | 25.6 kWh | 30.72 kWh |
Recommended Power | 5.12kW | 7.68KW | 10.24KW | 12.8KW | 15.36KW |
Maximum Power | 7.68kW | 11.52kW | 15.36kW | 15.36kW | 15.36kW |
Peak Power | 10.24kW | 15.36kW | 15.36kW | 15.36kW | 15.36kW |
Dimensions (L*W*H) (mm/inch) | 681*242*800 26.8*9.5*31.5 | 681*242*1060 26.8*9.5*41.7 | 681*242*1320 26.8*9.5*52.0 | 681*242*1580 26.8*9.5*62.2 | 681*242*1840 26.8*9.5*72.4 |
Weight(kg/lbs) | 130/285.5 | 187/411.2 | 244/536.8 | 301/662.5 | 358/788.2 |
Communication | CAN, RS485 | ||||
Cycle Life | ≥6000 cycles | ||||
Protection level | IP55 | ||||
Ambient Temperature | -10°C~55°C / 14°F~131° | ||||
Storage Temperature | Within 1 month: -20°C~55°C / -4°F~131°F 1~3 months: 0°C~35°C /32°F~95°F 4~12 months: 20°C~25°C /68°F~77°F |
