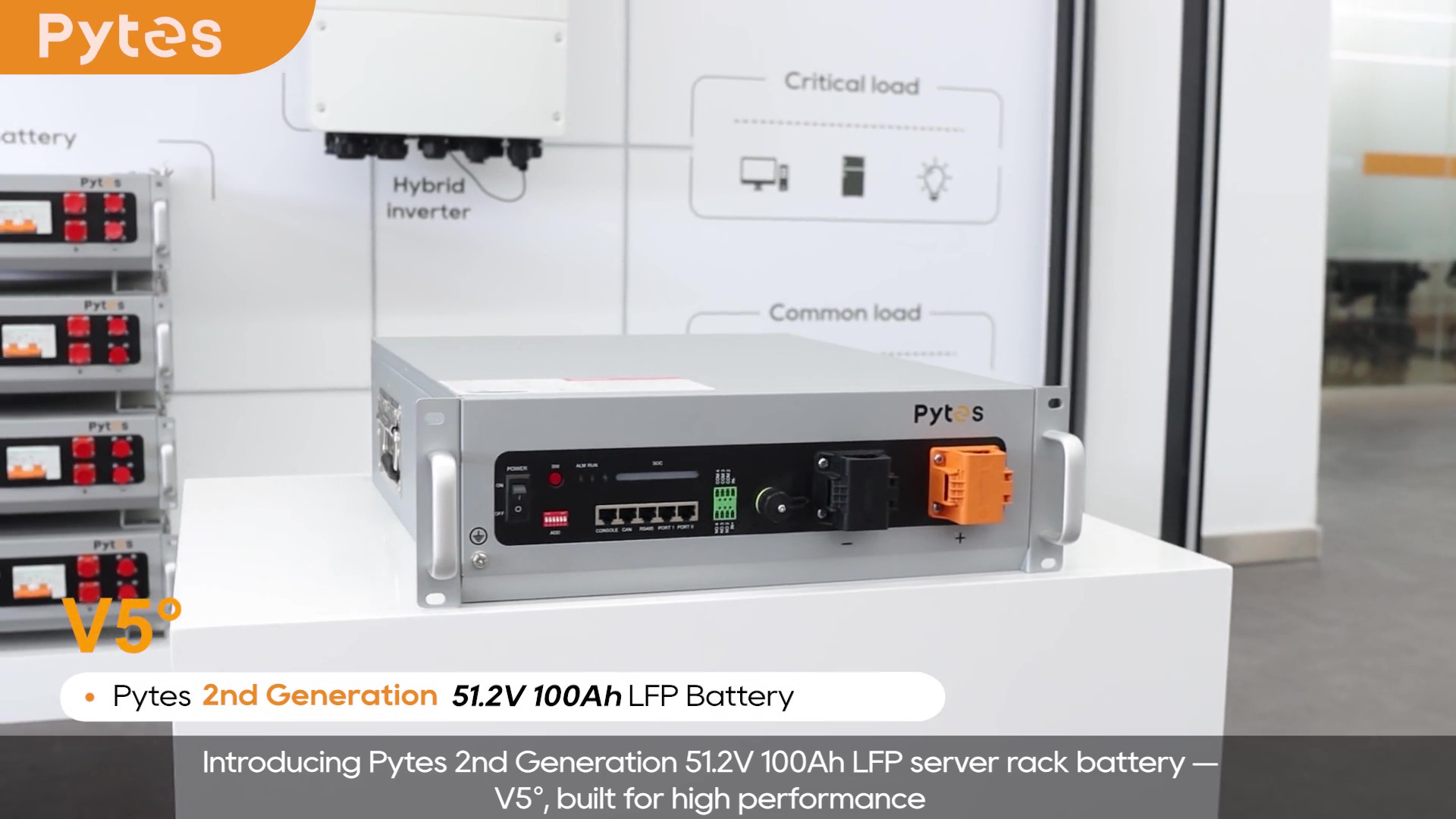

The new LFP battery for home energy storage system.
It helps to save your money on electric bill when use during peak, and make you feel confident facing outage, with electricity stored either from solar panels or grid.
Connection Options
V5°: PHOENIX M6 Bolt
V5°α: Amphenol SurLok Plus 8.0mm
Recommended Charge Current 75A
Maximum Charge Current 100A
Recommended Discharge Current 75A
Maximum Discharge Current 100A
Peak Discharge Current 101-120A (3min)
Peak Discharge Current 121-200A (15sec)
BMS Over Current Alarm
Short Current Protection
FUSE 360A
Keep the Battery Working in the Optimal Temperature Range
Wider Battery Operating Temperature Range
Multiple Protections -- Software & Hardware
Low Power Consumption - 170W
Over 10 Years Design Life
Real-time Monitoring
Remote Upgrading
Alarm Notification
Data Visualization
Error Detection
High Reliability
Highly Integrated
High Energy Density
High Security
Compatible with most inverter brands on the market
UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3
OEM Co-Listing available
≥6000 cycles @90%DOD, ret@70%, 25℃
>95% Round-trip efficiency
10 years warranty, Up to 20 years design life
| Battery Model | V5°/V5°α |
|---|---|
| Electrical | |
| Nominal Voltage | 51.2V |
| Voltage Range | 100Ah |
| Nominal Energy | 47.5V~57.6V |
| Recommended Charge/Discharge Current | 75A |
| Max Continuous Charge/Discharge Current | 75A |
| Peak Charge/Discharge Current | 101A~120A (3min);
|
| General | |
| Connection Options | V5°: PHOENIX M6 Bolt
|
| Chemistry | LFP |
| Communication Protocol | CAN/RS485 |
Dimensions(L x W x H) | 442*530*140mm/17.40*20.87*5.51inch(3.2U) |
| Weight | 44kg/97lbs |
| Ambient Temperature | -10°C~50°C/14°F~122°F |
| Cycle Life* | ≥6000 cycles |
| Warranty | 10 Years |
| Mounting Method | Wall / Ground (W/ Optional Battery Tray) |
| Heating Pad (Integrated) | Temperature Rise: 14.4°F/h / 8°C/h |
| Add-on Functionalities | |
|---|---|
| WIFI Connection | Remote monitoring and upgrade |
| Heating Pad | Temperature Rise: 10°C/h / 18°F/h |

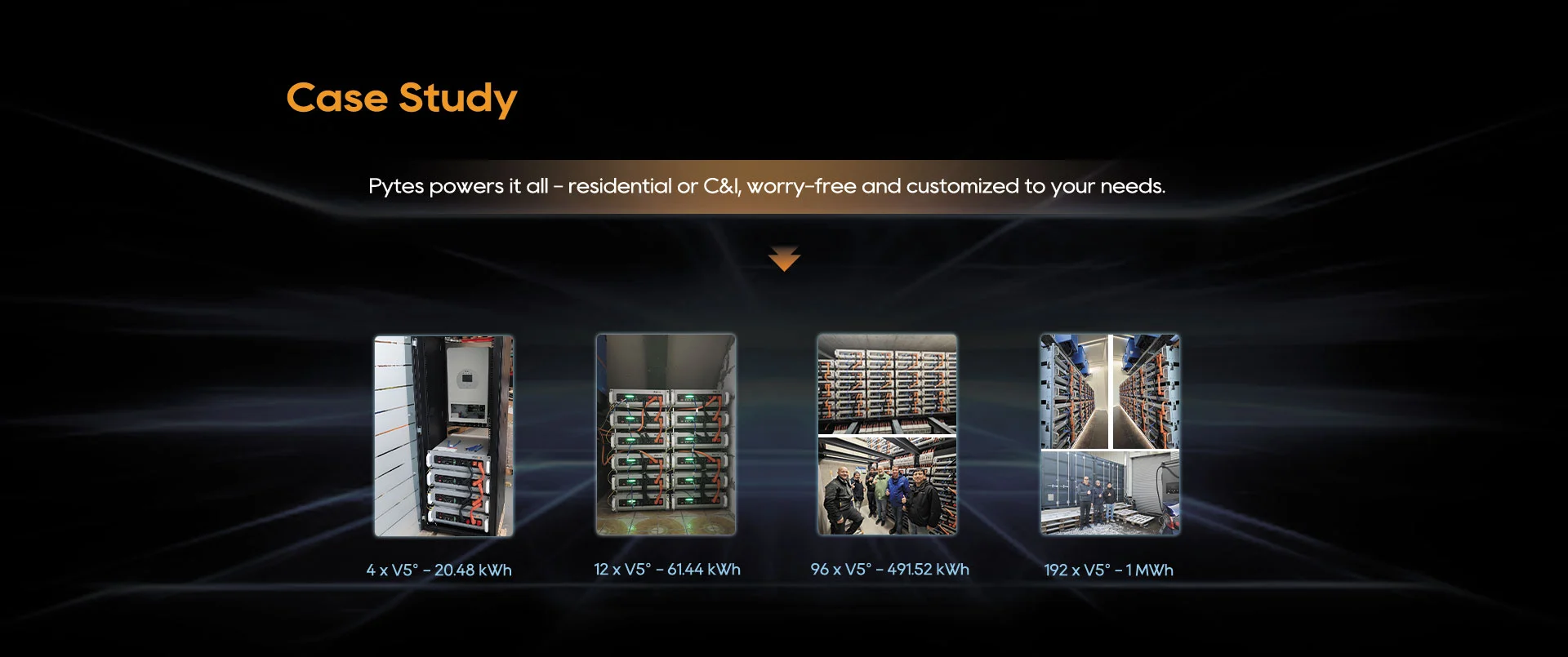

| Scalability | 16 pcs (81.92kWh) in a group 6 groups (491.52kWh) in a system w/a Hub |
| Certifications | |
|---|---|
| UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3 |
