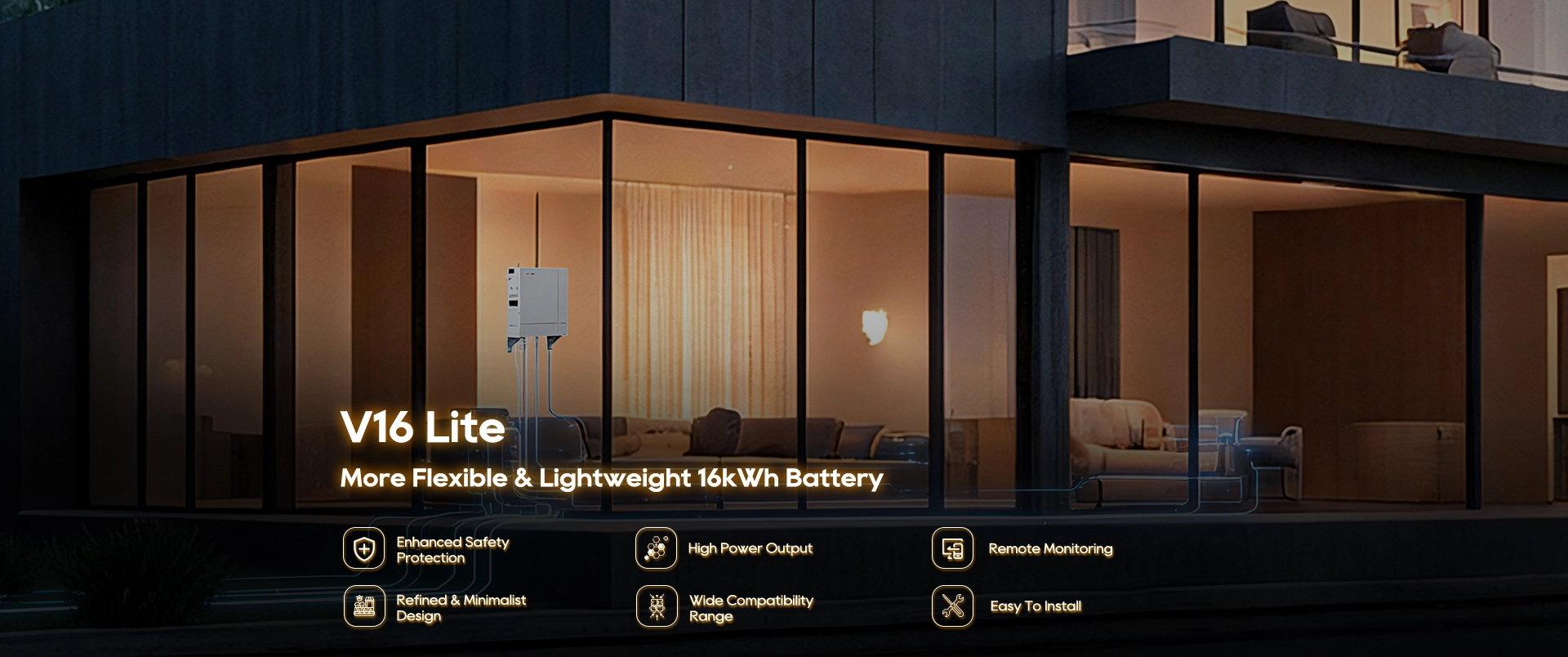

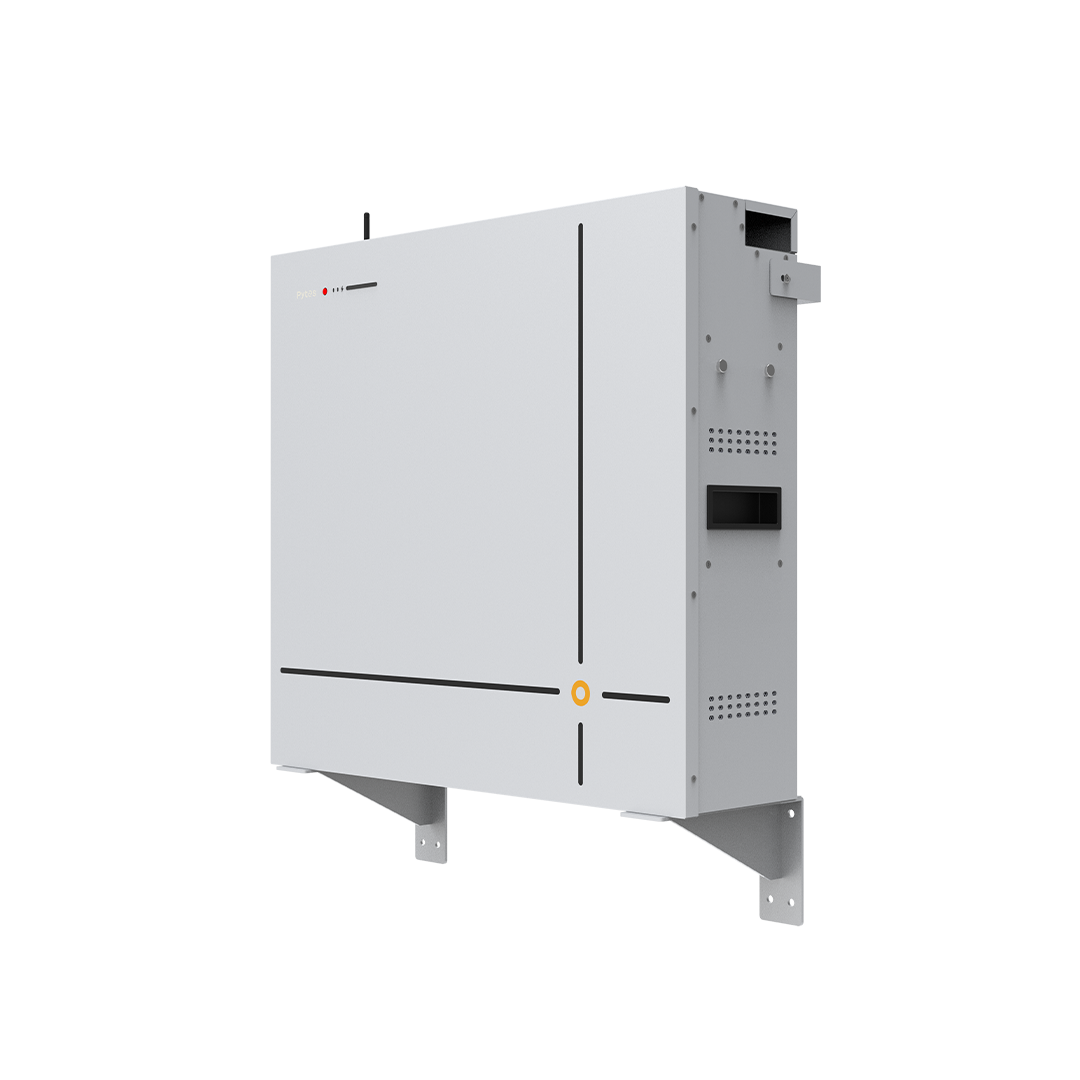

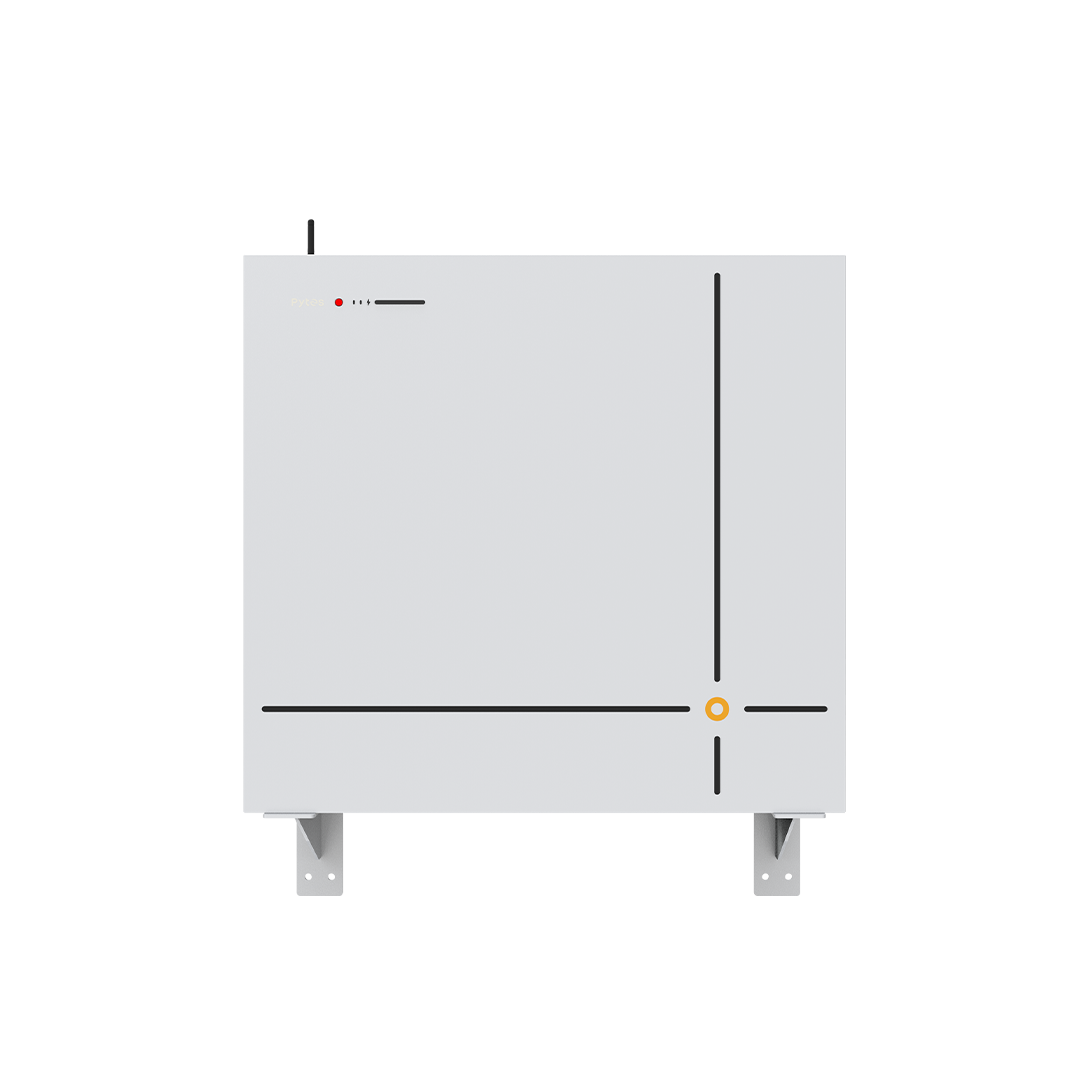

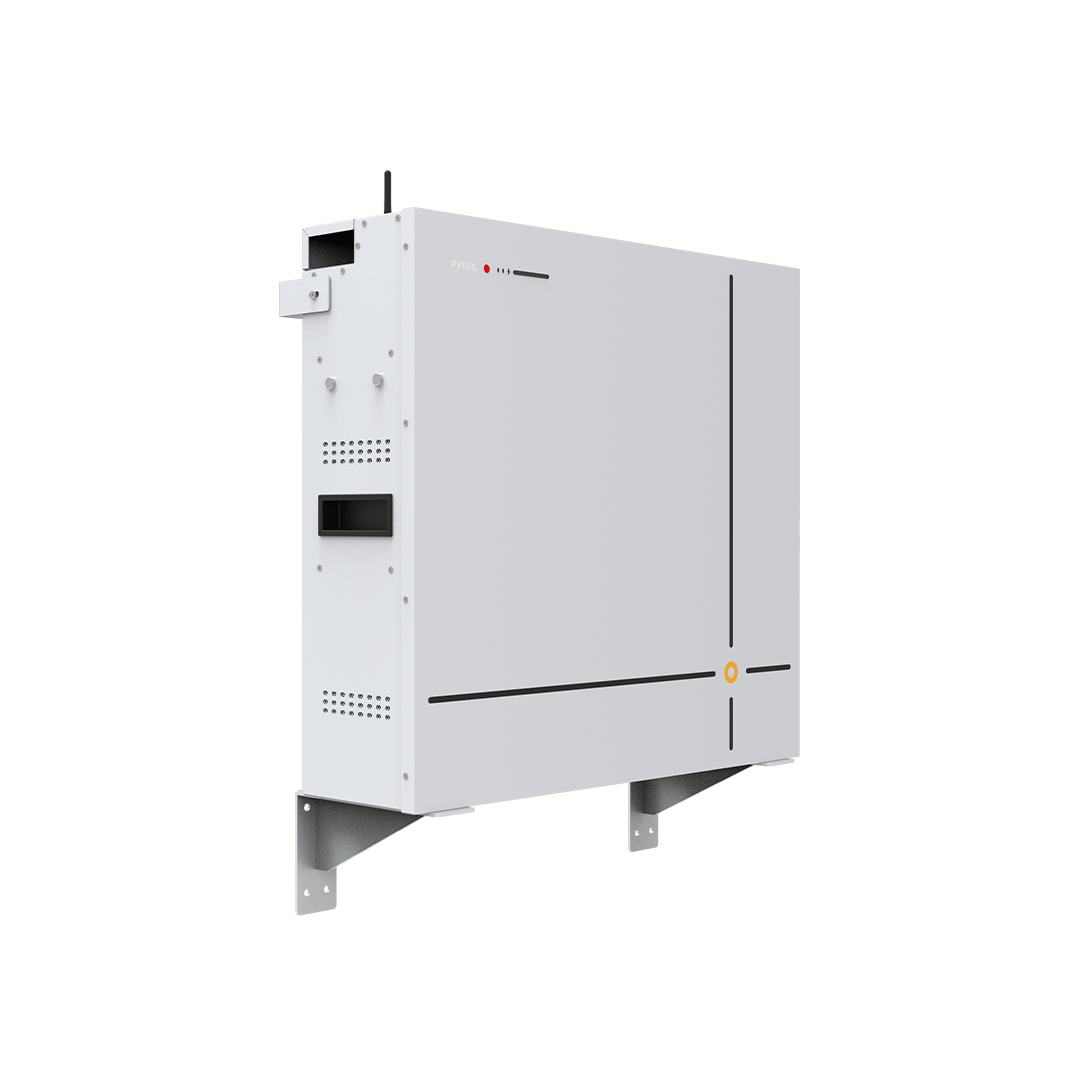

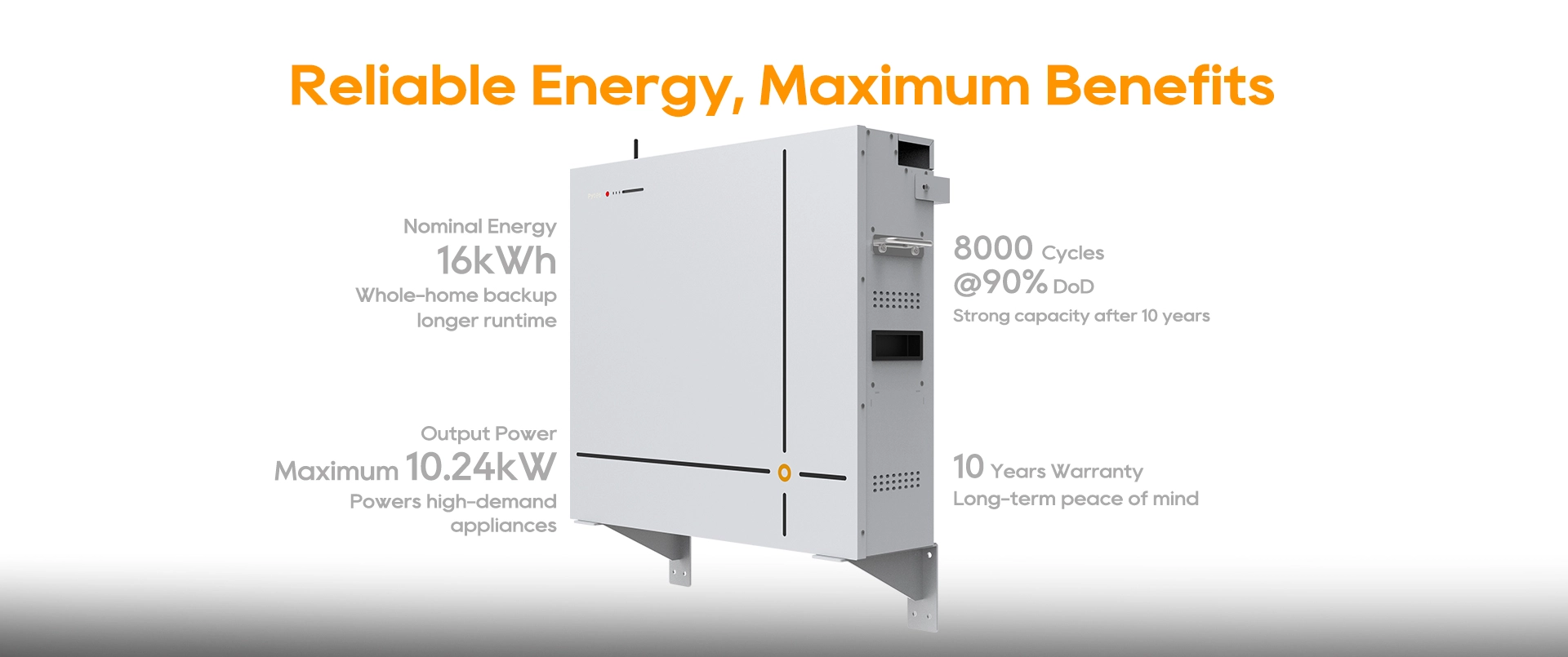

V16 Lite is a slimmer, more flexible 16 kWh residential energy storage battery designed to deliver reliable, long-lasting backup power and maximum value for residential and light commercial applications. With 7.68 kW output power and maximum 10.24kW output power, it can support high-demand appliances, while 8,000 cycles and a 10-year warranty ensure long-term, stable operation. Its compact design adapts easily to complex or space-constrained installations, supports seamless scalability up to 256 kWh, and enables smart energy management through real-time monitoring and remote firmware upgrades.

LFP Chemistry, Tier 1 Automotive Cells & Field-Proven BMS
Emergency Shutdown
Aerosols Fire Suppression System (Optional)

7.68kW Powerful Output, Maximum 10.24kW Output
16.07kWh High Capacity

Remote Upgrading & Monitoring

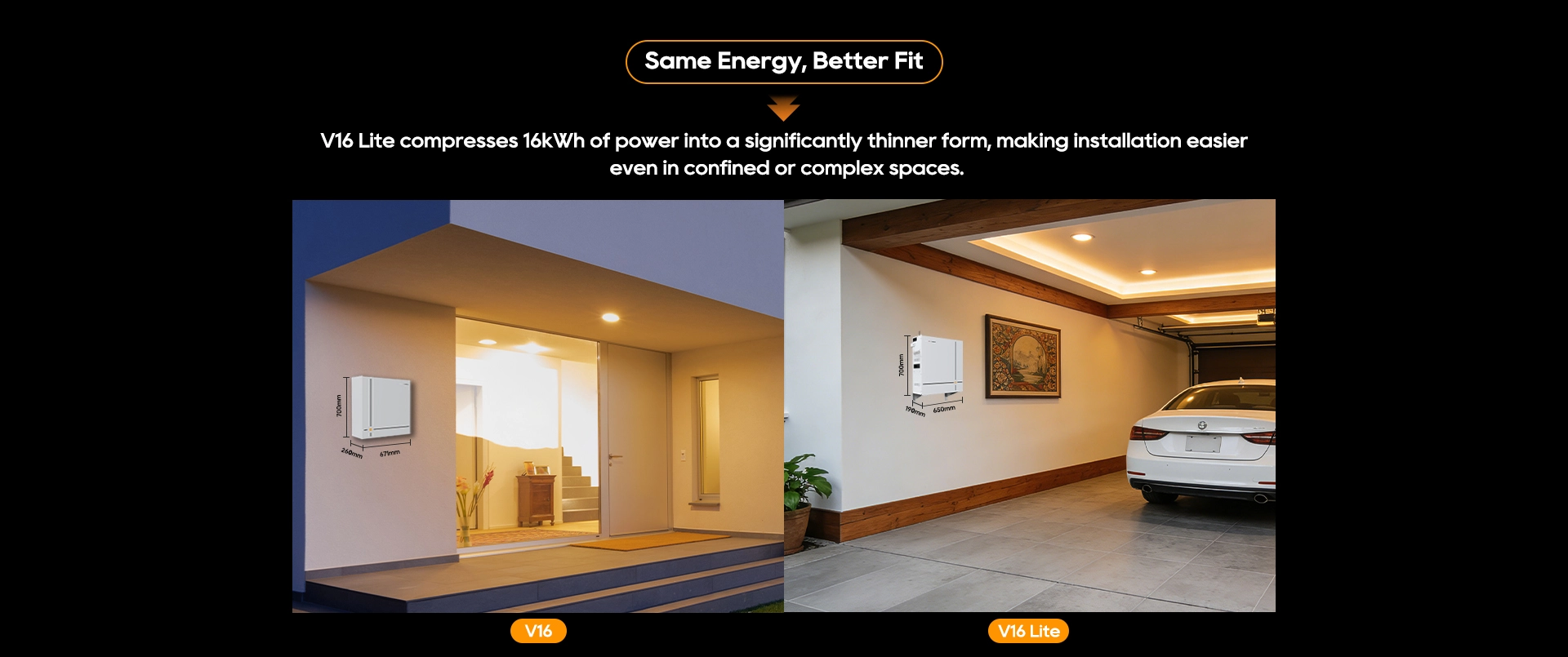

Sleek and Minimalist Design with Clean Lines, Featuring Hidden Interface

Closed-Loop Compatible with Over 20+ Inverters

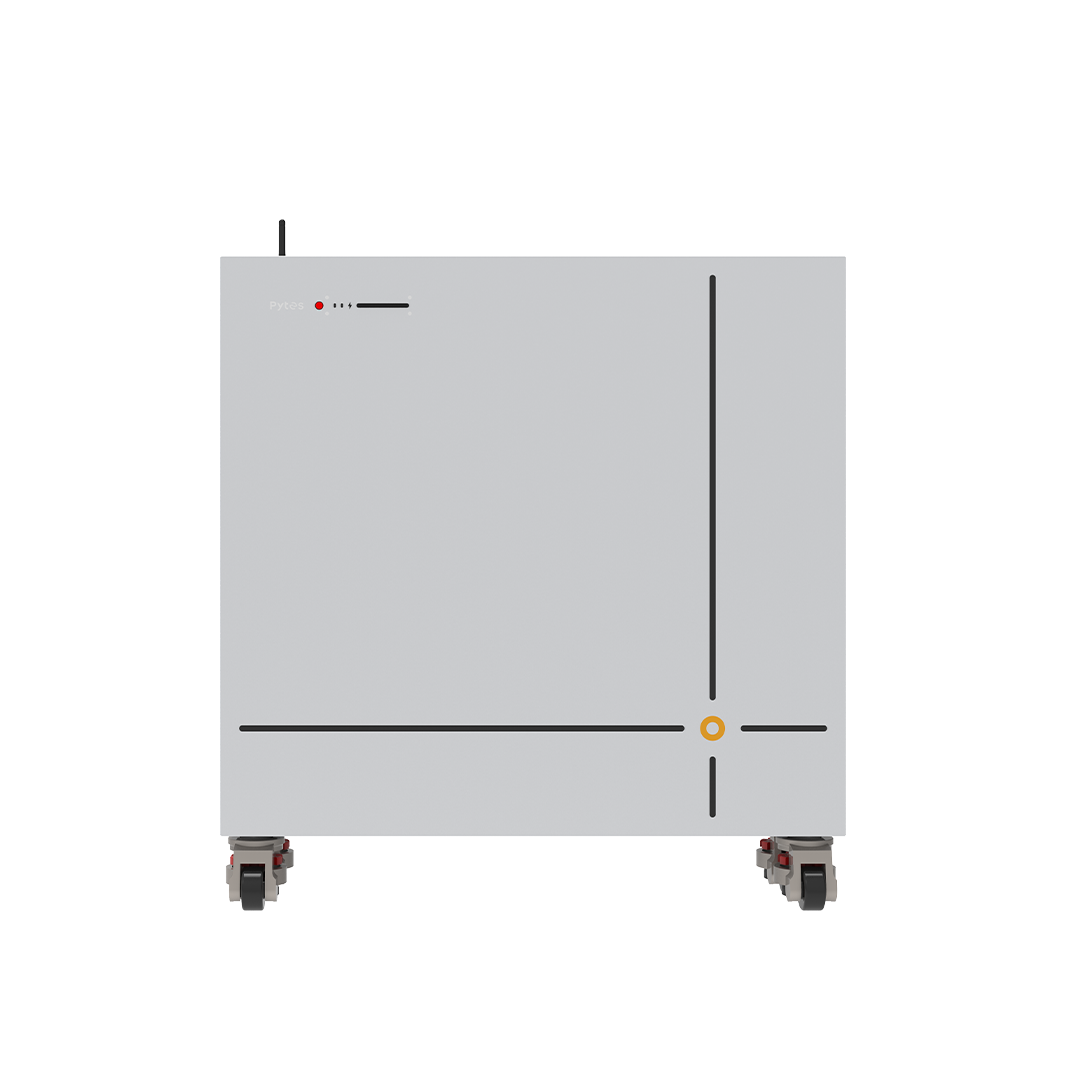

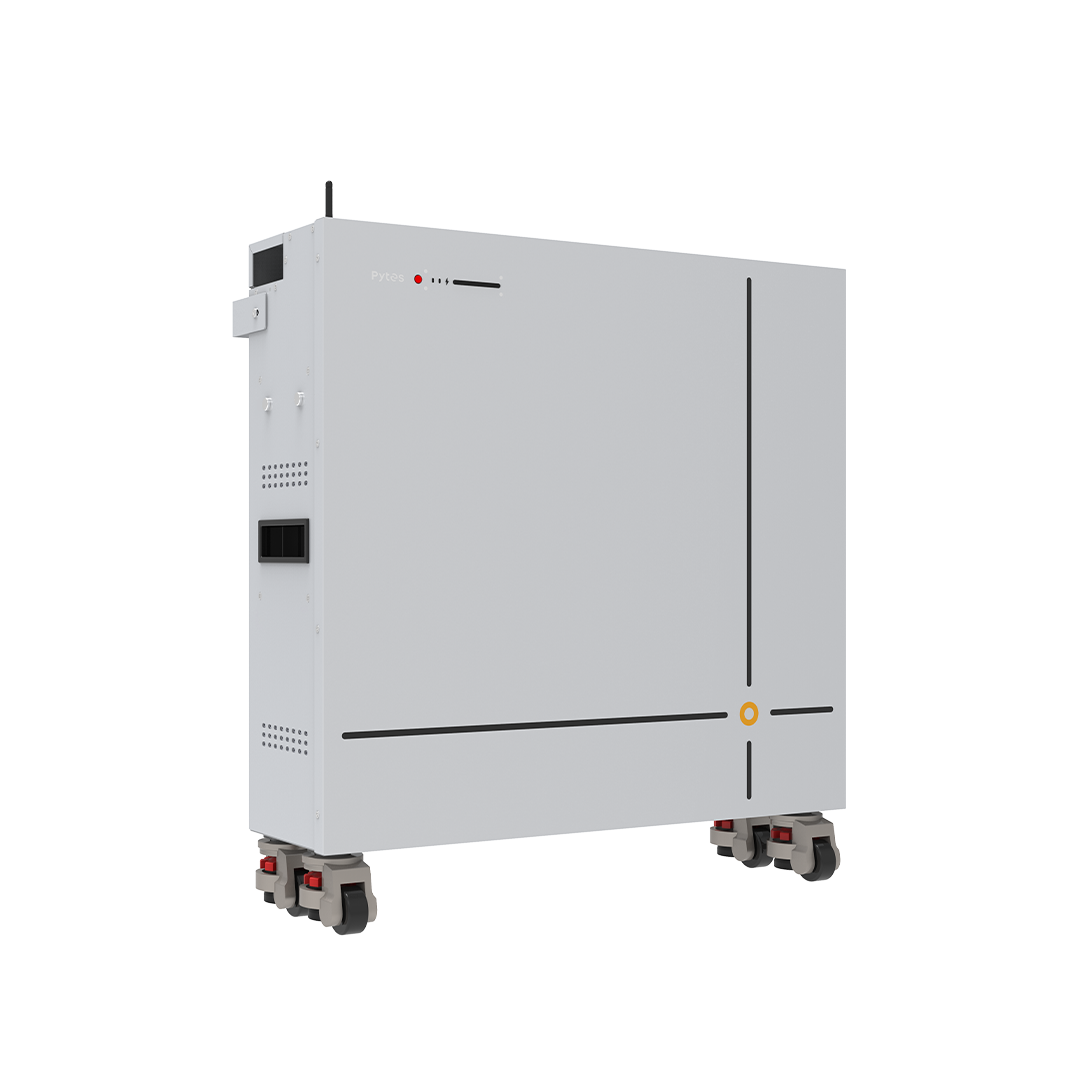

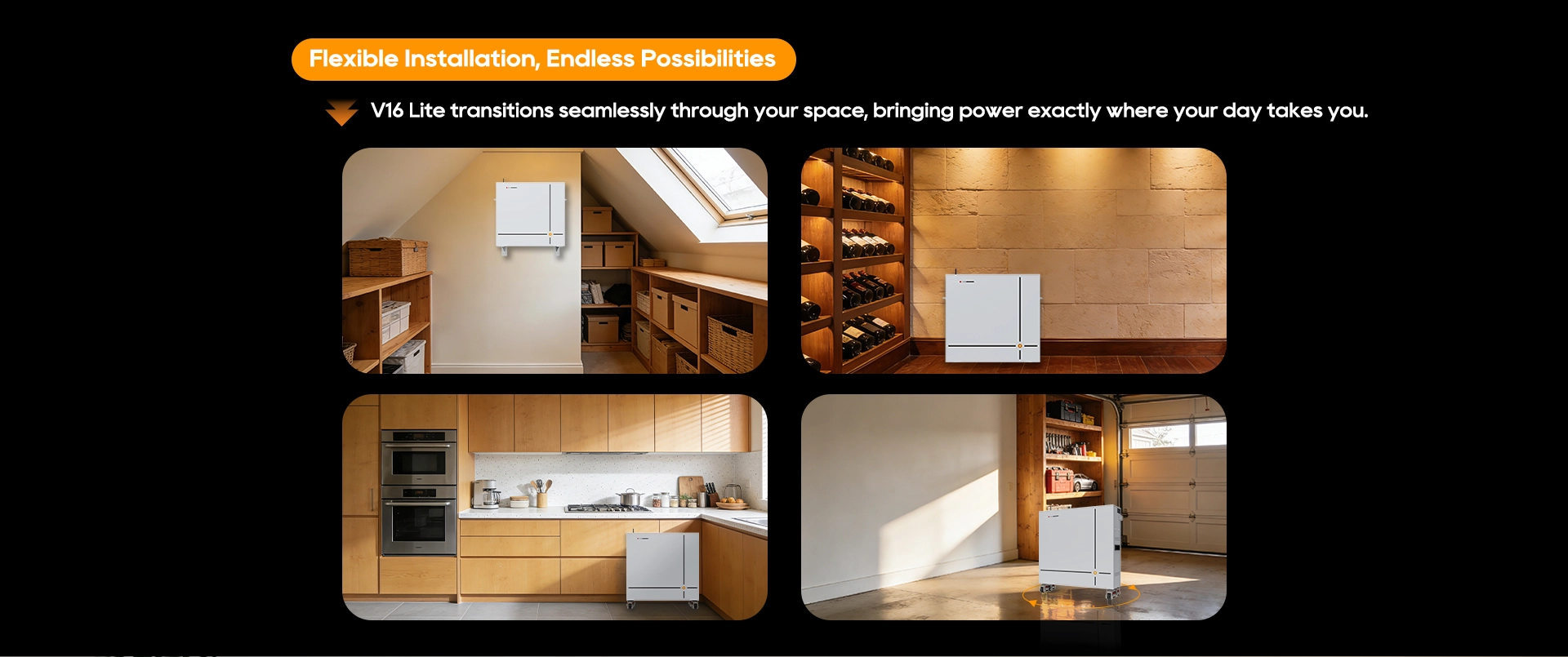

Wheelable & Less Wiring, Support Wall & Floor Mounting
One Battery for the Whole Family








| Battery Model | V16 Lite |
|---|---|
| Electrical | |
| Nominal Voltage | 51.2V |
| Voltage Range | 46.5V~56.8V |
| Nominal Capacity | 314Ah |
| Nominal Energy | 16.07kWh |
| Recommended Charge Current | 150A(7.68kW) |
| Recommended Discharge Current | 150A(7.68kW) |
| Maximum Charge Current | 200A (10.24kW@180s) |
| Maximum Discharge Current | 200A (10.24kW@180s) |
| Peak Discharge Current | 300A(@15.36kW@15s) |
| Battery Breaker | DC 250V 250A |
| General | |
| Chemistry | LFP |
| Communication Protocol | RS485 / CAN / Dry Contact / Wifi |
| Dimensions(W x H x D) | 650 x 700 x 190mm / 25.59 x 27.56 x 7.48 inch |
| Weight | 140kg / 308.65Ibs |
| Operating Temperature | Charge: 0~55°C / 32~131°F / Discharge: -20~55°C / -4~131°F |
| Heating Pad (Integrated) | Operation Temperature Rise: -18°C~15℃/0°F~59°F |
Cycle Life | 8000 Cycles |
| Ingress Protection | lP20 |
| Altitude | <4000m |
